Multi-band V solid 20-15-10m (6m) dipole – V1.0 eng
PST-152TV
Assemblyng instructions:
The antenna can be assembled in different ways:
Assemble it on two sawhorses and then carry it on the mast or pre-assemble the elements and then complete
the assembly on the mast.
In both cases it is preferable to prepare before the elements and then the main plate assembly.
Extracting elements from the carton box, you will find the element tubes as pre-assembled elements, in a
telescopic set. Tilt the tube set, make sure that all heads of each diameter escape from the main pipe.
Do not forget to lubricate the thread of steel bolts, if dry may stiff them.
Place the element on a plan, and begin to assembly the smaller diameter,

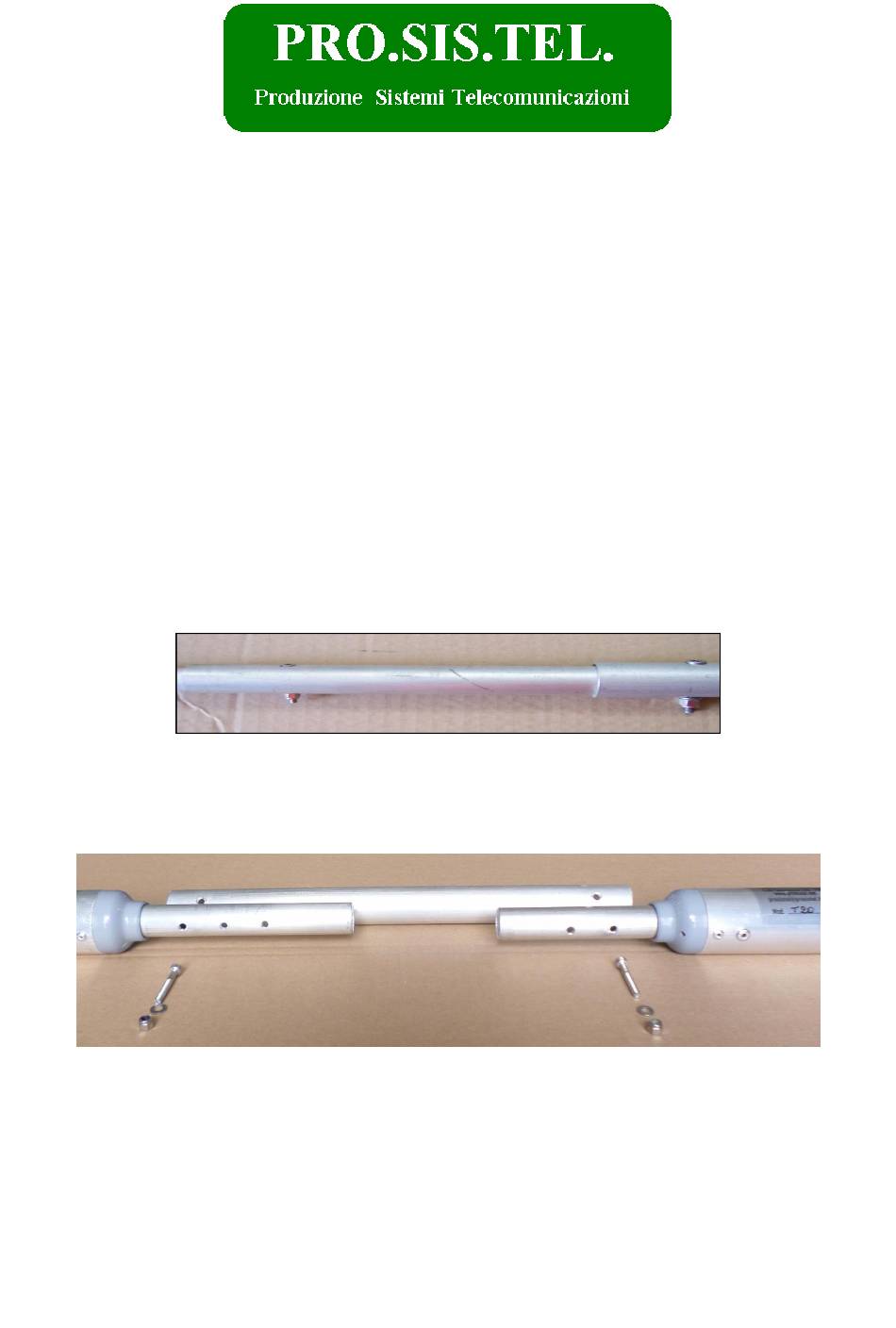

Align the hole of the inner tube with hole of the outer tube. The fastening of the elements takes place by
inserting the bolt from the larger hole so that the cylindrical bolt head pass thoroughly and rests on the inner
tube fig.2.
Some sections are multi-perforated to facilitate the adjustment, always start from the center hole, and then
shorten or lengthen it if antenna is too long or too short.
Using the same technique, extract and splicing all sections and traps.
Tighten the nut. Make sure that all bolts heads are on the same side.
Insert the set of traps (10m on the inner side, 15m in the middle and finally 20m end. Even if traps
set is already pre-assembled, the joints inside them have multi drilling, if necessary remove the
joint and move to the hole that appears to be most suited to the best resonance.
Longer antenna lower the resonance, shorter antenna increase the resonance. In both cases will have
effect on the others lower bands. Start the eventual calibration always starting from the highest
frequency (10m - 15m - 20m).
Any drainage holes present on the traps, at the end of assembly should be down side.
Do not seal traps or tube joints. Antenna must breath to prevent damages due condensation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PST-152TV and is the answer not in the manual?

Questions and answers

Summary of Contents for PRO.SIS.TEL. PST-152TV

  • Page 1 Multi-band V solid 20-15-10m (6m) dipole – V1.0 eng PST-152TV Assemblyng instructions: The antenna can be assembled in different ways: Assemble it on two sawhorses and then carry it on the mast or pre-assemble the elements and then complete the assembly on the mast.
  • Page 2 When both half-elements are ready, prepare the center plate and assemble all the parts as in the photo. The two half-dipoles lower ends must protrude from the insulator of 2.5 cm (1inch). Connect a 1:1 balun to the dipole center (recommended) with two wire jumpers no longer than 8-10 cm (the length affects the resonance of all bands), if you decide not to use the balun, connect terminals of the coaxial opening it as a V directly to the two bolts.
  • Page 3 Specifications: Bands: 20 - 15 - 10m Gain: 0dBd Max power: 2Kw pep SSB, 1Kw RTTY-CW or in accordance with balun max power. Half dipole lenght = about 4m (depend from the tunig set) Rotating radius = about 3m Wind area = about 0.2m2 Mast diameter = 40-50mm Weight = about 7kg Max wind = 130Km...
  • Page 4 WARNING!!! Do not install this antenna near electric power lines or other sources of energy, even in the event of accidental contact, could kill or seriously hurt you. Dear buyer, thank you for purchasing a Pro.Sis.Tel antenna .. Making it we have used the best materials available on the market, worked and finished with the best care possible allowed by the state of art.
