PRO.SIS.TEL. LOG2010 Manual

LOG2010 (20-17-15-12-10m)

Assembling procedures:

After you open the box, find and prepare parts as following:
Handle with care the preassembled parts.
Boom use square pipes.
Front and back elements use round pipes
All measure are metrics in mm.
Be aware, put a little lubrification on stainless steel bolts because if screwed down fast, getting hot,
could stiff, (general rules valid for all stainless steel bolts).

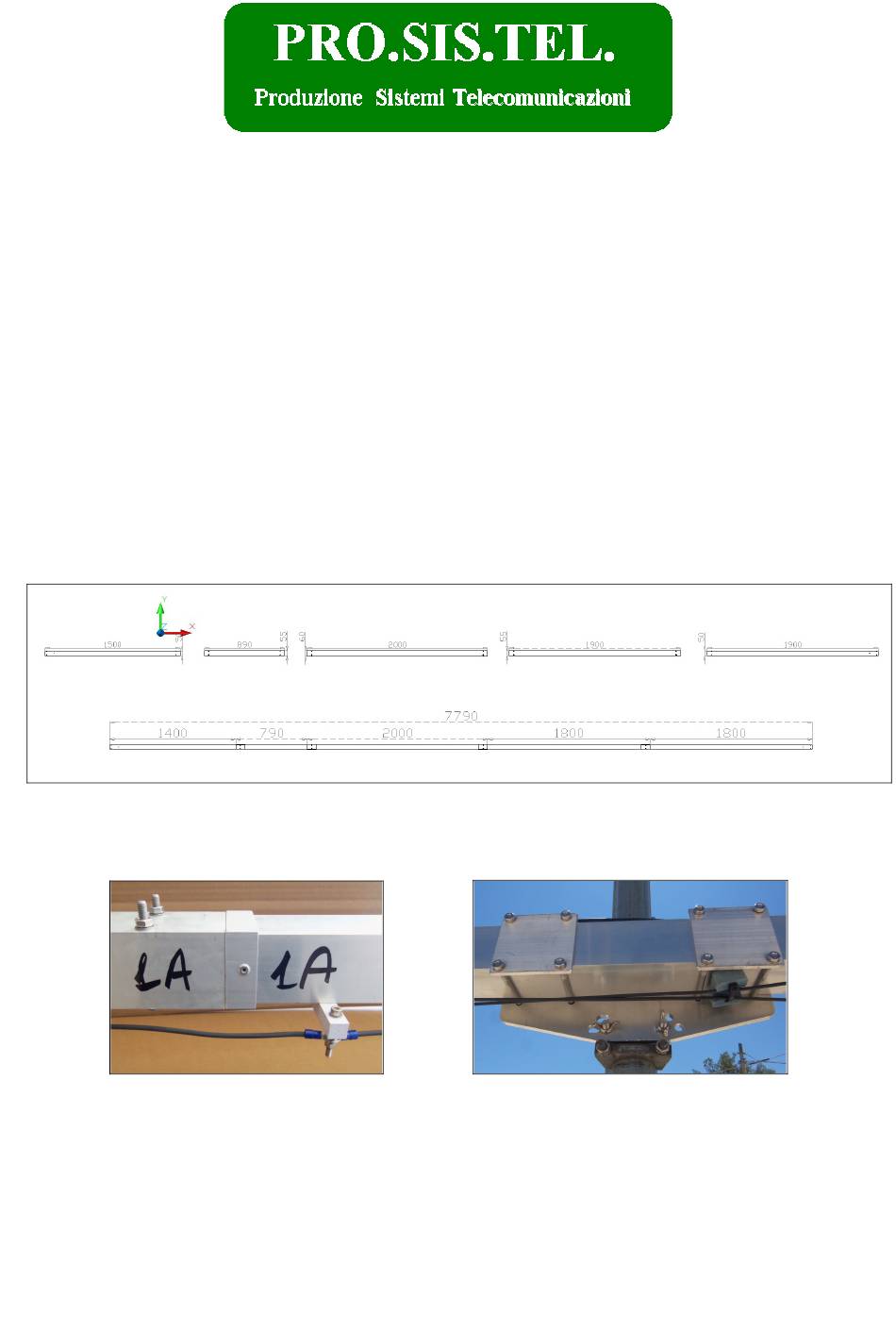

Arrange square pipe, in line, in a stepping down sequence following labels and drawing.
Innestare i tubi l'uno dentro l'altro, ed imbullonarli tra loro con gli appositi bulloni. Le teste dei
Insert the smaller square pipe end in the larger square pipe end, insert the bolt from bottom to top
side and make sure that bolt head take place in the larger hole pressing on the inner square pipe.
Boom
The A label joints are on the front side, the B label joints are on the rear antenna side, both refered
to mast-boom joint plate.
On the antenna boom are preinstalled already the wire elements insulators and RF wire line. After
that the boom is completed, connect the line wires to next one, taking care to cross them.
RF wire line, back and front alluminum elements take place on the bottom boom face.
If you are assembling antenna on easels, preventing RF line wires damages, disconnect them in
coincidence with easel, taking care to reconnect them back when assembling end.
If you have easy access to your tower rotating mast pipe , than install boom-mast plate on the
antenna boom and install it on the tower, taking care to have RF lines and insulators facing down.
