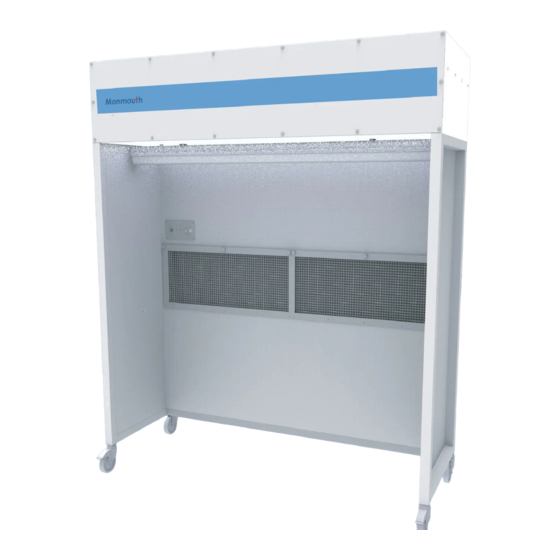

- Page 1 Operating & Maintenance Manual Circulaire ® Powder Containment Booth PCB1800 www.monmouthscientific.co.uk...
-
Page 2: Table Of Contents
Section 5 ................8 Servicing ......................8 Warning This cabinet must be used in compliance with these instructions and any repairs or maintenance carried out by qualified personnel. For parts or service information please contact Monmouth Scientific: +44 (0) 1278 458090... -
Page 3: Section 1
Section 1 Description The Monmouth Powder Containment Booth provides local extraction and containment of powders handled within the filter capture zone. Refer to HSG258 for detailed guidance on application and suitable capture velocity. The following capture velocities are achievable on this unit**: Distance from centre of filter face Max Velocity (m/sec) 10mm... -
Page 4: Section 2
Section 2 Installation General The cabinet may be delivered fully assembled or part assembled for final assembly on site by trained engineers who will ensure it is ready for use. The following guidelines should be observed when installing and first using the cabinet: Site the cabinet in a draught free position. -
Page 5: Section 3
(see section 4 for details). The fan speed control knob is to be used for initial set-up and low airflow monitor calibration only (see section 4 for details). Pre-Filters are available from Monmouth Scientific (see section 4 for details). -
Page 6: Section 4
Always replace with the correct type and rating: 3A Type T Light The unit is fitted with a long-life LED lamp and should require no maintenance. Filters Replacement filters are available from Monmouth Scientific: Part number/qty required Pre-Filter Main HEPA Filter... -
Page 7: Main Hepa Filter
Main HEPA Filter Replacement HEPA Filter Part Number: K-HF0401 (3 off/Cabinet) Using the supplied key, unlock and drop-down the access door. • Working inside the enclosure, in turn, slacken the 2 off screws (17mm A/F) • clamping each fan box module to the filter. Work each side in turn to raise the fan box evenly until a sufficient gap is present to enable the removal of the HEPA filter which should freely slide out of place. -
Page 8: Low Airflow Alarm
Check and record air velocity readings • Check general condition of cabinet. • Inspect electrical components, lighting, cables etc. • Issue test report and airflow certificate. • For parts or service information please contact Monmouth Scientific: +44 (0) 1278 458090... - Page 9 Monmouth Scientific Limited UK Headquarters Units 5 & 6 Kilnside, East Quay, Bridgwater, Somerset, TA6 4DB. +44(0)1278 458090 www.monmouthscientific.co.uk info@monmouthscientific.co.uk B r i t i s h D e s i g n & Manufacture...
