modway EEI - 4456 Assembly Instructions

EEI - 4456

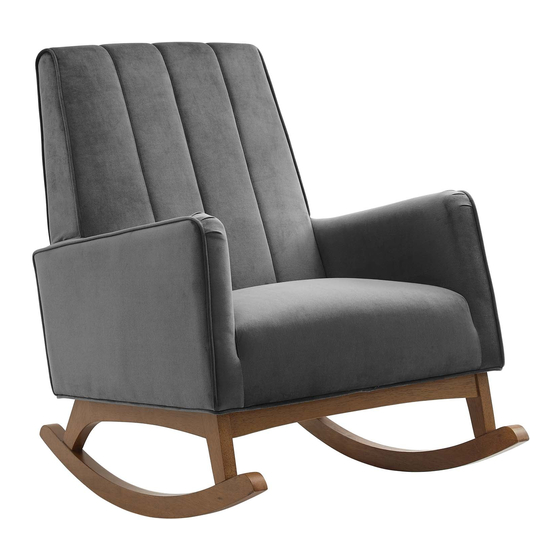

Thank you for purchasing the MODWAY ROCKING CHAIR!
Before you start, here is some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of small children.

Component:

1. Front Rail
2. Back Rail
3.
Chair Leg (L/R)
4.
Chair
Customer Service 609-256-9000 www.modway.com
x 1
x 1
x 2
x 1
3

Hardware:

A
B
C
D
E
2
1
3
JCBB BOLT M8 x 50mm
SPRING WASHER M8
WOOD SCREW M4 x 38mm
WOOD DOWEL M8 x 30mm
ALLEN KEY (BALL SHAPE) M5
4
6 PCS
6 PCS
4 PCS
8 PCS
1 PC
Page 1 of 5
