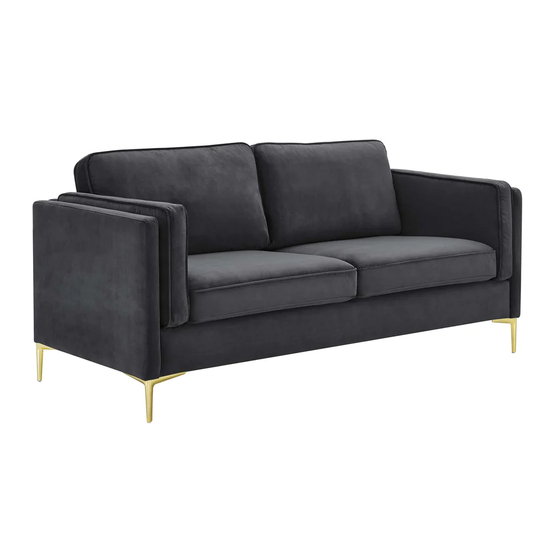

EEI-4453 / EEI-4454 / EEI-4455 SOFA
Thank you for purchasing the MODWAY SOFA
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.
Components:
1. Sofa Seat
x1
5. Sofa Back
x1
Customer Service 609-256-9000︱www.modway.com
2. Left Arm
x1
6. Side Cushion
x2
Hardware:
A.
B.
C.
D.
E.
* Not include hardware bag
3. Right Arm
7. Seat Cushion
x2
Bolt M8x30mm
x8
Flat Washer M8
Allen Wrench
x1
Screw
x4
Screw driver
x1
4. Leg
8. Back Cushion
Page 1 of 5
x8
x1
x4
x2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-4453
Summary of Contents for modway EEI-4453
- Page 1 EEI-4453 / EEI-4454 / EEI-4455 SOFA Thank you for purchasing the MODWAY SOFA Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
- Page 2 EEI-4453 / EEI-4454 / EEI-4455 SOFA STEP 1: 1. Please put Sofa Seat (1) upside down on a carpeted or padded surface. 2. Open the Zipper strip at the bottom of the Sofa Seat (1) and take out 4 pieces of Legs (4) and 2 pieces of Side Cushions (6) and hardware bag.
- Page 3 EEI-4453 / EEI-4454 / EEI-4455 SOFA STEP 3: Insert Sofa Seat (1) to Left Arm (2) and Right Arm (3) by using the pre-installed Clips on Sofa Seat (1), Left Arm (2) and Right Arm (3) to lock each other as shown.
- Page 4 Sofa Seat (1) clockwise as shown. STEP 6 Noted: Please Skip STEP 6, if you assemble EEI-4453 or EEI-4454 now. 1. Please put Cover of Side Cushions (6) on a carpeted or padded area and fully open the zipper as shown.
- Page 5 EEI-4453 / EEI-4454 / EEI-4455 SOFA STEP 7 1. Return the assembled Sofa Seat (1), Left Arm (2), Right Arm (3) and Sofa Back (5) to its normal position. 2. Carefully put 2 pieces of Side Cushion (6), 2 pieces of Seat Cushion (7) and 2 pieces of Back Cushion (8) to the assembled Sofa Seat (1), Left Arm (2), Right Arm (3) and Sofa Back (5) as shown.
