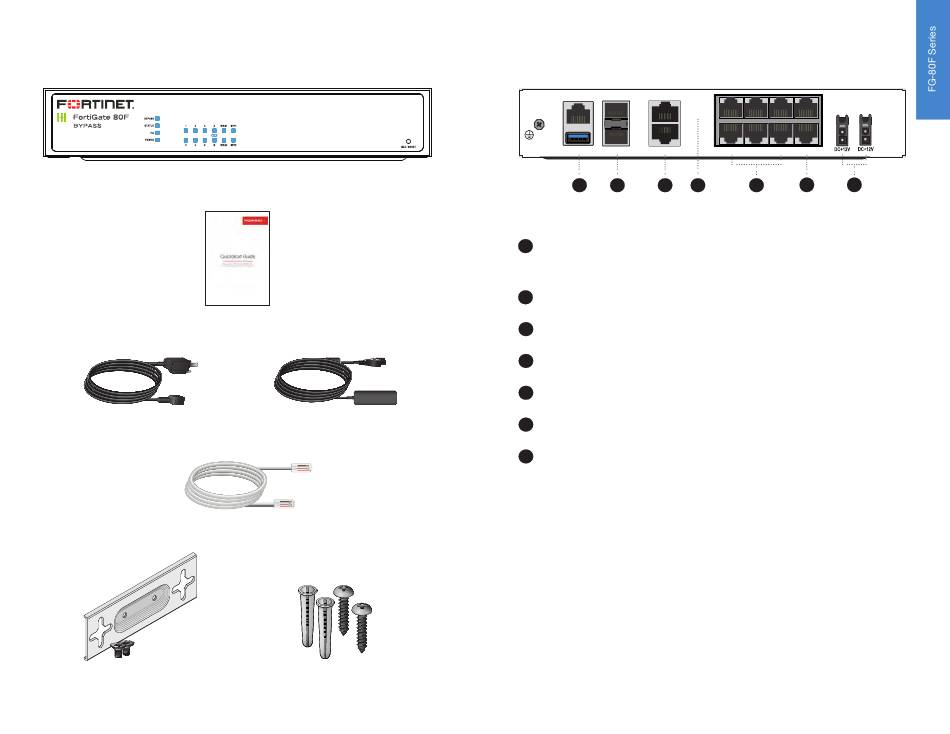

Box Includes - FG 80F Series
FortiGate 80F/81F/Bypass
Power Cable
Wall Mount Kit
(Not included, sold separately)
6
QuickStart Guide
12V DC Power Adapter
Ethernet Cable
Wall Mount Hardware
(Not included, sold separately)
Back Panel - FG 80F Series
CONSOLE SFP 1 – shared – WAN 1
—BYPASS —
USB SFP 2 – shared – WAN 2
1 2 3 4
1
Console (RJ-45) CLI management computer interface
USB (USB A) USB 3.0 server port
2
SFP Shared Ports 1 & 2 (SFP) 1 Gbps SFP interface
3
WAN Shared Ports 1 & 2 (RJ45) 1 Gbps Ethernet interface
4
BYPASS Port Pair (RJ45) 1 Gbps Ethernet interface
(FG 80F-Bypass model only. WAN1 & Port1 are the default configuration )
5
Ports 1 to 6 (RJ-45) 1 Gbps Ethernet interface
6
FortiLink Ports A & B (RJ-45) 1 Gbps Ethernet interface
7
Power Input 12V DC 3A, 100-240V AC 50/60Hz
(optional redundant power adapter and cable available for purchase)
1 3 5 A
2 4 6 B
5 6 7
7
