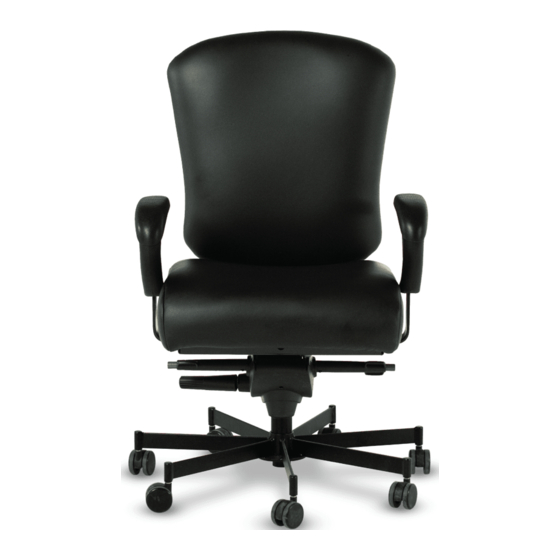

Concept Seating 3150 Adjustment Manual

A Division of Laacke & Joys Company
3150, 3150HR, 3152 & 3152HR Custom Adjustment Guide

Custom Arm Pad

Activate
Swing Arms
Arm Width

Tension Control

Adjustment

Height Adjustment/Seat Adjustment

Forward Tilt/Seat Slider

• Height Adjustment/Seat Adjustment: Twist the paddle to adjust the height - up or down. To move down- use your
body weight to lower the chair. To move up- stand up and the let chair raise. Press button to lock back in place, press
again to unlock.
• Tension Control: This feature adjusts the amount of force needed to tilt. Twist clockwise to increase the strength of
tension for your chair. Twist counterclockwise to decrease tension.
• Forward Tilt/Seat Slider: Twist the paddle to adjust the seat bottom - forward to backward. Press button until you
hear a click. Adjust recline and lock between the custom 5-positions.
• Activate Swing Arm: Press button on bottom of swing arm bracket to activate. Arm will swing backward.
• Custom Arm Pad: With your hand, you may move the arm pad forward, backward, left, or right.
• Arm Width Adjustment: Turn handwheel clockwise to loosen. Pull or push arm rest to desired width. Turn handwheel
counterclockwise to tighten and secure the armrest in place. Adjust for both right and left sides.
3205 N 124th Street, Brookfield WI 53005 • 800-892-5563 • CONCEPT SEATING.COM
