Concept Seating 3150 Assembly Instructions

Chair

Hide thumbs Also See for 3150:

Table of Contents

Download this manual

A DIVISION OF LJ DESIGN & MANUFACTURING

CHAIR ASSEMBLY INSTRUCTIONS

3150 MODEL CHAIRS

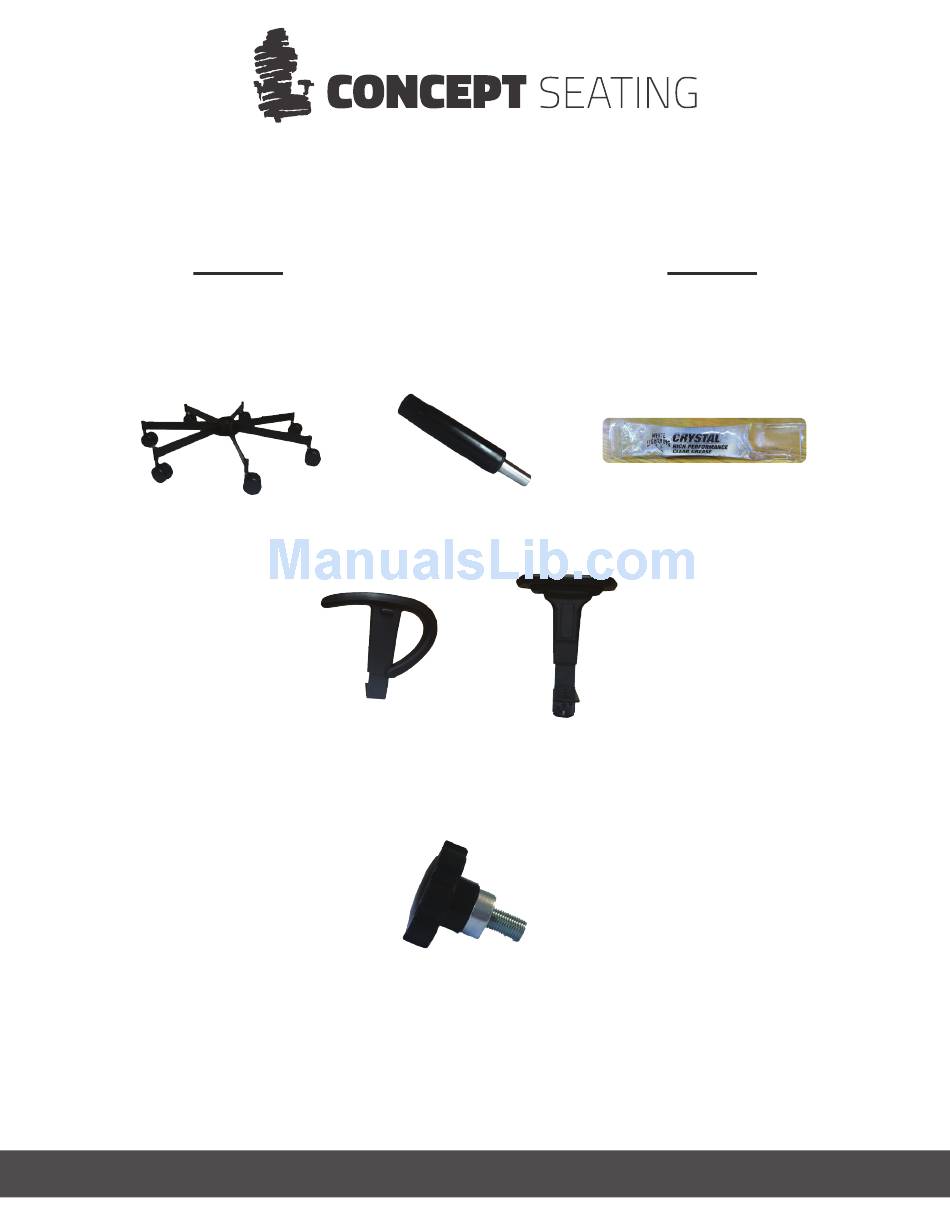

PLEASE CHECK THAT ALL PARTS LISTED ARE INCLUDED:

The items pictured above (7 Leg Base with casters attached, Gas Cylinder and Grease Packet) are packed together

in the base box which is separate from your chair box.

C-Loop Arms

Swing Arms

One (1) Left Armrest and one (1) Right Armrest are packaged in a separate box which can be found inside the large

chair box.

Two (2) Handwheel Bushings are already threaded onto the two (2) Armrest Handwheels which have been in-

stalled into the bottom of the seat, which can be found inside the large chair box.

3205 N 124th St ) BROOKFIELD, WI 53005 ) 800-892-5563 ) INFO@CONCEPTSEATING.COM ) CONCEPTSEATING.COM

Table of Contents

Do you have a question about the 3150 and is the answer not in the manual?

Page 1 A DIVISION OF LJ DESIGN & MANUFACTURING CHAIR ASSEMBLY INSTRUCTIONS 3150 MODEL CHAIRS PLEASE CHECK THAT ALL PARTS LISTED ARE INCLUDED: The items pictured above (7 Leg Base with casters attached, Gas Cylinder and Grease Packet) are packed together in the base box which is separate from your chair box.
Page 2 A DIVISION OF LJ DESIGN & MANUFACTURING STEP 1 Open the chair box and the base box. Remove the 7 Leg Base with Casters attached and place on the floor. Remove the plastic bag containing the Cylinder and Grease Packet from the box. Apply ½...
Page 3 A DIVISION OF LJ DESIGN & MANUFACTURING CHAIR ADJUSTMENTS FOR 3150 MODEL CHAIRS SEAT TILT ADJUSTMENT The seat tilt locks into five positions; slightly forward, level and three reclined. FORWARD TILT TO UNLOCK • While seated locate the gray button at the end of the paddle under the right side of the seat.
Page 4 A DIVISION OF LJ DESIGN & MANUFACTURING SEAT SLIDER ADJUSTMENT • While seated locate the paddle under the left side of the seat. • Turn the paddle and hold while pulling or pushing the seat bottom to adjust the seat depth to any of the five positions: a total of 2”...
Page 5 6/10 YEAR WARRANTY Laacke & Joys LLC has purchased the name and assets of Concept Seating Inc. as of February 29, 2012. All liabilities before this date are the responsibility of the previous owners. To assist and support the previous customers of Concept Seating Inc., Laacke &...
