- Page 1 Shanghai Pengwang Machinery Co., Ltd. Address：Building 8, No.1098, Chuansha road, Pudong New Area, Shanghai Sales phone: +86 15801732387 PW602 Double Heating Extrusion Welder Manual...
- Page 2 Notice 1. Please read the manual carefully before use, in order to operate the machine correctly, and keep it for reference. 2. Pay attention to the danger, please make sure that the plug has been unplugged when disassembling the device. 3.

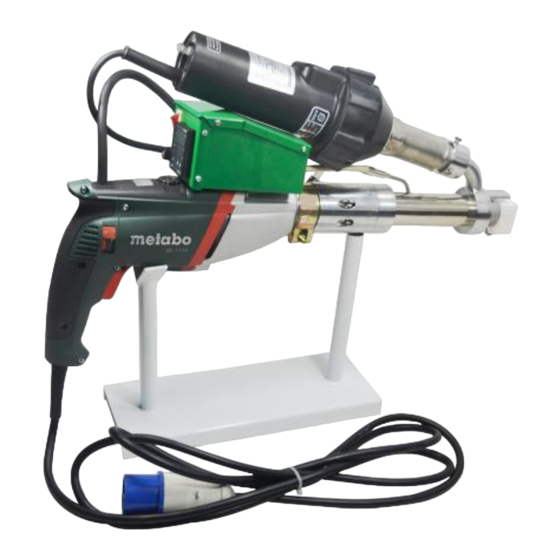

- Page 3 Product Description PW602 is a newly developed new generation of extrusion welder and plastic welding equipment, which meets the continuously expanding application demands of the plastics industry in various engineering fields. The machine adopts double heating mode to separately heat the welder...
- Page 4 Main spare parts Operation Steps 1. Put the extruder on the shelf and install the handle, connect the power supply. 2. Press the “POWER” button to start the green control box, press “▲” and “▼” button to set a wanted temperature value (temperature is adjustable from 300℃ to 420℃ when welding the HDPE).
- Page 5 3. If the third lamp is on which means the heating temperature is higher than minimum melting temperature, the motor fuse will open automatically. If the third lamp is not light up which means the temperature is lower than minimum melting temperature, the motor will lock automatically; meanwhile the motor will power-off automatically to prevent the wrong operation.
- Page 6 The drive motor has a motor low-temperature safety lock design. When the welder is not melted, even if the motor switch is pressed, the motor will not start by mistake. Short preheating time, the digital temperature control system, the set value and real-time value are displayed separately, which is clear at a glance.
- Page 7 Common faults & solution Issue Possible failure analysis Solution Hot air gun motor does not rotate Check and replace the stator, rotor, switch Heating gun core does not heat Replace the heating gun core Don’t blow hot air The air outlet on the upper side of the Remove debris from the air outlet machine's discharge port is blocked The discharge port is blocked...
