s
Scan the QR code for more
information

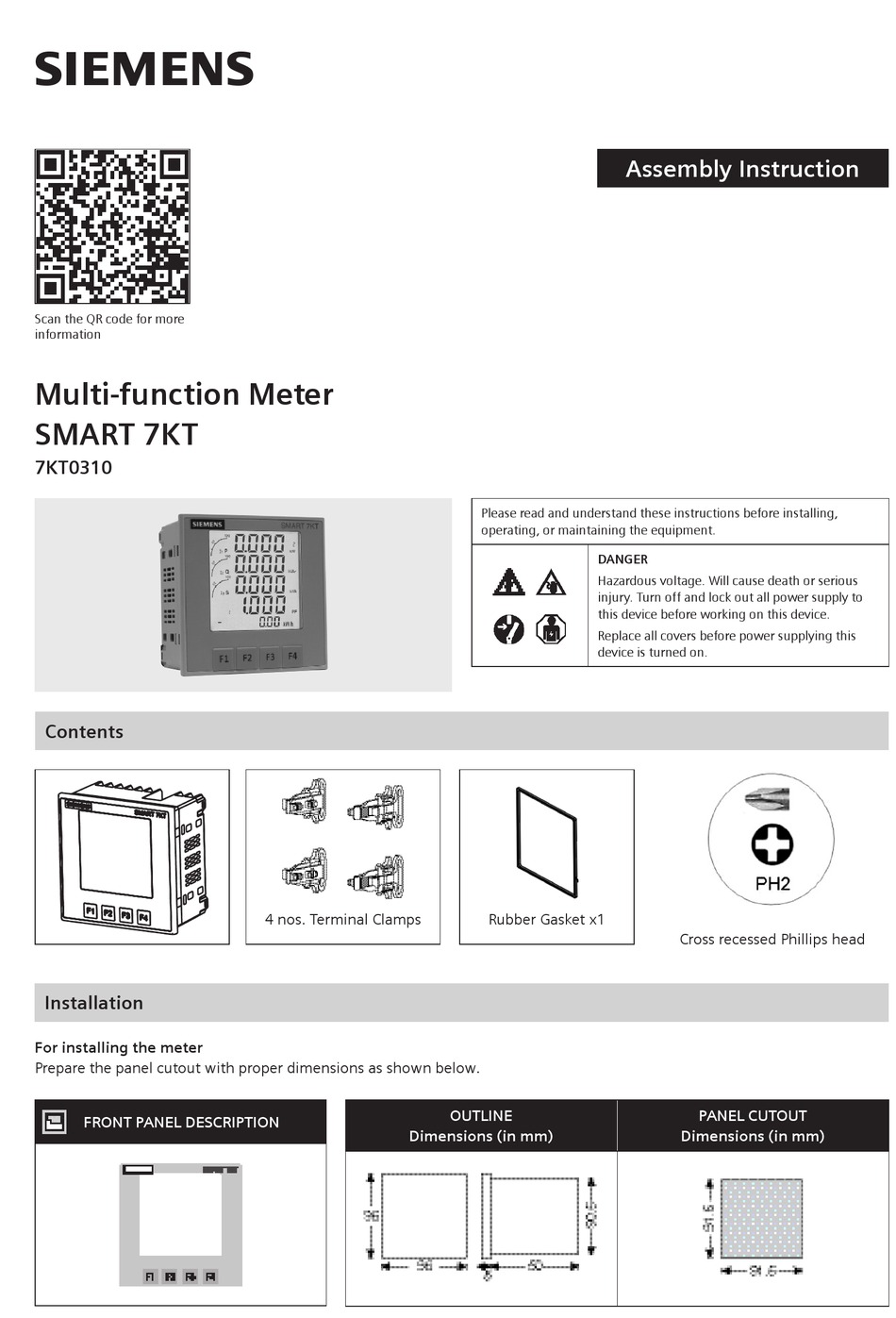

Multi-function Meter
SMART 7KT
7KT0310
Contents
Installation
For installing the meter
Prepare the panel cutout with proper dimensions as shown below.
FRONT PANEL DESCRIPTION
4 nos. Terminal Clamps
Dimensions (in mm)
Please read and understand these instructions before installing,
operating, or maintaining the equipment.
DANGER
Hazardous voltage. Will cause death or serious
injury. Turn off and lock out all power supply to
this device before working on this device.
Replace all covers before power supplying this
device is turned on.
Rubber Gasket x1
OUTLINE
Assembly Instruction
Cross recessed Phillips head
PANEL CUTOUT
Dimensions (in mm)
Advertisement
Related Manuals for Siemens SMART 7KT
Summary of Contents for Siemens SMART 7KT
- Page 1 Assembly Instruction Scan the QR code for more information Multi-function Meter SMART 7KT 7KT0310 Please read and understand these instructions before installing, operating, or maintaining the equipment. DANGER Hazardous voltage. Will cause death or serious injury. Turn off and lock out all power supply to this device before working on this device.
-
Page 2: Mounting Distance
Installation (Continued) 1. Insert unit into the panel 2. Position the clamps (as shown in the 3. Push/Slide all 4 clamps towards the panel figure) and push the same into the slots in evenly till the lowest possible tooth of the their respective locations. -
Page 3: Connection Diagram
Connection diagram Circuit Diagram 3 Phase 4-Wire (commonly used) 3 Ø - 4 Wire, 3 CT’S and 3 PT’S 3 Ø - 4 Wire, 3 CT’S 2) All Fuse Type: 0.5A, Class gG Wiring Guidelines 1. To prevent the risk of electric shock, power supply to 5. -
Page 4: Safety Precautions
These instructions do not purport to cover all details or variations in warranty of Siemens. Any statements contained herein do not create equipment, or to provide for every possible contingency in connection new warranties or modify the existing warranty. - Page 5 Published by Siemens Malaysia Sdn Bhd Smart Infrastructure Electrical Products (EP) Cp Tower, 11, Jalan 16/11 46350 Petaling Jaya, Selangor Malaysia sales.my@siemens.com Subject to changes and errors. The information given in this document only contains general descriptions and/or performance features which may not always specifically reflect those described, or which may undergo modification in the course of further development of the products.
