We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE

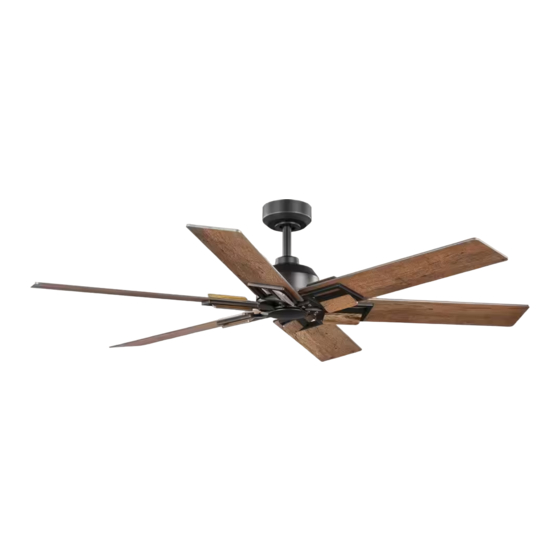

DOWNEY 60-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Item #xxxx xxx xxx
Model #56043
UL Model #60-DOWN
Advertisement
Related Manuals for Home Decorators Collection DOWNEY 56043
Summary of Contents for Home Decorators Collection DOWNEY 56043
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................14 Warranty ................3 Care and Cleaning ............. 15 Pre-Installation ..............3 Troubleshooting ..............15 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. -
Page 3: Warranty
Warranty The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The supplier warrants that the light kit, excluding any glass, to be free from defects in workmanship and material at the time of shipment from the factory for a period of five years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Decorative blade attachment screws Blade arm screws Plastic Wire Connector Locking pin Hanger Pin Hex key...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Blade arm (inside canopy) Decorative blade Ball/downrod assembly Bottom plate Canopy with canopy ring attached Receiver Decorative motor collar cover Remote control Fan-motor assembly 66 in. extension wire Blade 12 in.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock or proper blade clearance when installing on a steep, sloped personal injury, mount to outlet box marked “Acceptable ceiling. The maximum angle allowable is 20° away from for fan support of 35 lbs (15.9 kg) or less”, and use horizontal. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting □ Remove the magnetic canopy bottom cover (JJ) from the canopy (C) by pulling it off. □ Loosen the two canopy screws (HH) located in the bottom of the mounting bracket (A). □... - Page 8 Assembly - Standard Ceiling Mount (continued) Assembling the fan CAUTION: To ensure wobble-free operation and to avoid damage to the fan, the downrod (B) and the setscrew (KK) must be completely tightened. WARNING: Failure to properly install the locking pin (EE) could result in the fan becoming loose and possibly falling.
- Page 9 Assembly - Hanging the Fan (continued) Hanging the fan □ Carefully lift the fan-motor assembly (E) up to the slide-on mounting bracket (A). □ Insert the ball portion of the ball/downrod assembly (B) into the socket of the slide-on mounting bracket (A). □...
- Page 10 Assembly - Hanging the Fan (continued) Installing the receiver WARNING: To reduce the risk of fire or electric shock, remember to disconnect power. The electrical wiring must meet all local and national electrical code requirements. The electrical source and fan must be 110/120 volts, 60Hz.
- Page 11 Assembly - Hanging the Fan (continued) Wiring the fan to the receiver Outlet box in the ceiling NOTE: The fan comes with 12 in. lead wires for use with (MM) the provided 6 in. ball downrod assembly (B). If you wish to Green use a longer downrod, attach the 66 in.
- Page 12 Assembly - Attaching the Fan Blades Attaching the blades to the blade arms □ Attach a blade (F) to the blade arm (G) by aligning the holes on the blade arm (G) with the holes on blades (F), inserting the screws (AA) into the holes in the blade arm (G) and through the blade (F).
- Page 13 Assembly - Attaching the Accessories Mounting the remote control holder Screw cover plate NOTE: Screw wall anchors are included for extra support. The included screws are designed to screw easily into the wall. If you would like a more permanent or secure hold, install the wall anchors prior to attaching the wall cradle to the wall.
-
Page 14: Operation
Operating Your Fan and Remote Control POWER ON/OFF Press and release the power button to turn the fan on or off. Power NOTE: On start up your ceiling fan will oscillate back and forth. This is NORMAL OPERATION for DC ceiling fans as it goes through its calibration cycle. -
Page 15: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 16 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
