We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE

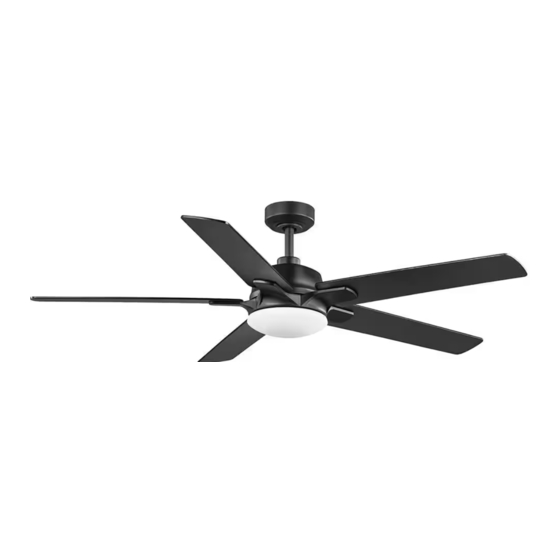

GREENHAVEN 60-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hubspace Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
HOMEDEPOT.COM/HUBSPACE
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search field.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Item #xxxx xxx xxx, xxx xxx xxx
Model #56006, 56042t
UL Model #60-AUN
Advertisement
Related Manuals for Home Decorators Collection 56006
Summary of Contents for Home Decorators Collection 56006
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................15 Warranty ................3 Care and Cleaning ............. 18 Pre-Installation ..............3 Troubleshooting ..............18 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Plastic wire connecting nut Hanger pin Locking pin Extra blade bracket screw...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Light kit pan (inside canopy) Light kit fitter assembly Canopy Glass shade Ball/downrod assembly Receiver Decorative motor collar cover Remote control Fan motor assembly Battery Blade bracket 3-pin extension wire (66 in.) Blade 2-pin extension wire (66 in.)
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock proper blade clearance when installing on a steep, sloped or personal injury, mount to an outlet box marked ceiling. The maximum angle allowable is 15° away from “Acceptable for fan support of 35 lb (15.9 kg) or less”, horizontal. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting NOTE: The magnet is pre-attached on the canopy bottom cover for you to remove and install easily. □ Remove the magnetic canopy bottom cover (JJ) from the canopy (C) by pulling it off. □... - Page 8 Assembly - Standard Ceiling Mount (continued) Assembling the fan CAUTION: To ensure wobble-free operation and to avoid damage to the fan, the downrod (B) and the setscrew (KK) must be completely tightened. WARNING: Failure to properly install the locking pin (DD) could result in the fan becoming loose and possibly falling.
- Page 9 Assembly - Hanging the Fan (continued) Hanging the fan □ Carefully lift the fan motor assembly (E) up to the slide-on mounting bracket (A). □ Insert the ball portion of the ball/downrod assembly (B) into the socket of the slide-on mounting bracket (A). □...
- Page 10 Assembly - Hanging the Fan (continued) Installing the receiver WARNING: To reduce the risk of fire or electric shock, remember to disconnect power. The electrical wiring must meet all local and national electrical code requirements. The electrical source and fan must be 110/120 volts, 60Hz.
- Page 11 Assembly - Hanging the Fan (continued) Wiring the fan to the receiver Outlet box in the ceiling NOTE: The fan comes with 12 in. lead wires for use with (MM) the provided 6 in. ball/downrod assembly (B). If you wish Green to use a longer downrod, attach the 3-pin extension wire (L) and 2-pin extension wire (M) to the fan by connecting...
- Page 12 Assembly - Attaching the Fan Blades Attaching the fan blades to the blade brackets NOTE: Your fan blades are reversible. Select the blade side finish which best accentuates your decor. □ Attach a blade (G) to blade bracket (F) by inserting the screws (AA) into the holes in the blade (G) and through the blade bracket (F).
- Page 13 Assembly - Attaching the Light Kit (continued) Attaching the light kit fitter assembly □ Remove one screw (TT) from the light kit pan (H), and loosen, but do not remove, the other two screws. □ Connect the wires from the light kit fitter assembly (I) to the wires from the fan motor assembly (E) by connecting the molded adaptor plugs together.
- Page 14 Assembly - Attaching the Accessories Mounting the remote control holder Screw cover plate NOTE: Screw wall anchors are included for extra support. The included screws are designed to screw easily into the wall. If you would like a more permanent or secure hold, install the wall anchors prior to attaching the wall cradle to the wall.
-
Page 15: Operation
Operating Your Fan and Remote Control POWER ON/OFF Power Press and release the power button to turn the fan and light on or off. (fan and light on/off) NOTE: On start up your ceiling fan will oscillate back and forth. This is NORMAL OPERATION for DC ceiling fans as it goes through its calibration cycle. - Page 16 Application Set-Up NOTE: For more information on smart remote set up, please refer to the quick start guide located in the remote pack. NOTE: To use Alexa to change the color temperature of the light, please make sure the light is turned on first. Questions, problems missing parts? Please call Hubspace Customer service Getting started...
- Page 17 Voice Commands The Greenhaven 60 in. LED Indoor Smart Color Changing Ceiling Fan works with Alexa and Google Assistant. This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com/. Alexa Google When you want to...
-
Page 18: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 19 Questions, problems, missing parts? Before returning to the store, call Hubspace Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-592-5233 HOMEDEPOT.COM/HUBSPACE Retain this manual for future use. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
