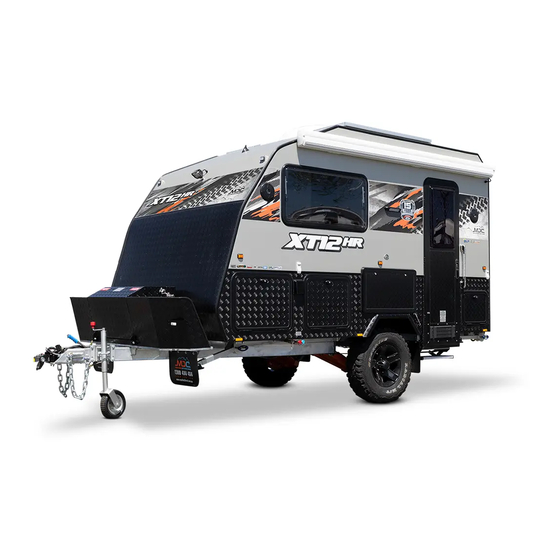

XT12HR
OFFROAD HYBRID CARAVAN
OWNER'S MANUAL
15yr Anniversary Edition - Version 1
www.marketdirect.com.au
Phone: 1300 494 494
I
www.marketdirect.com.au
Contents
I
I
Ph: 1300 494 494
P a g e
| 1
Copyright © Market Direct Group Pty Ltd 2021 All Rights Reserved
