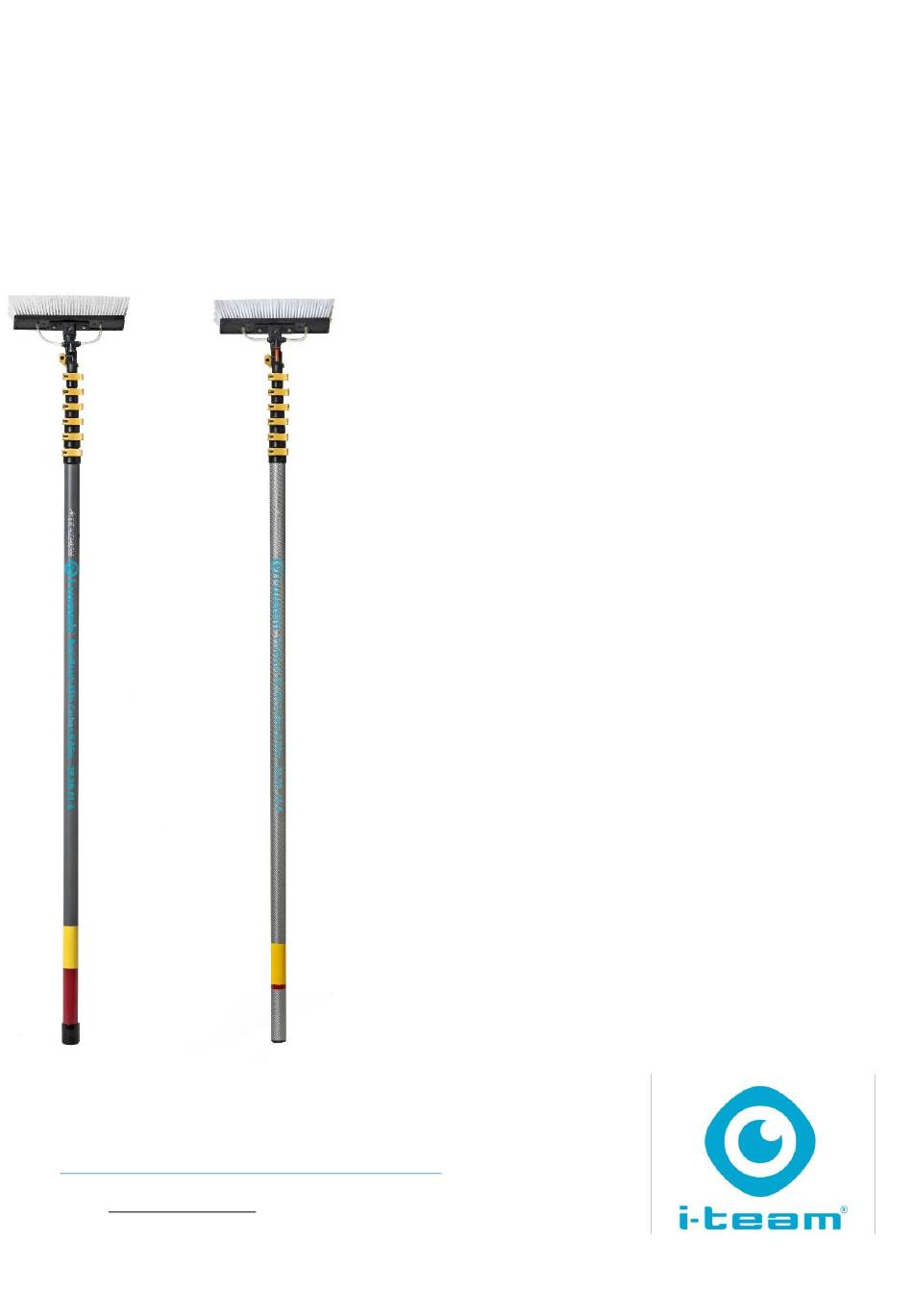

- Page 1 ® i-wash Basic/Pro Reach One pole to rule them all User manual i-team Professional b.v. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com...
- Page 2 Original user manual, written in the English Language Future Cleaning Technologies B.V. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com Model: Date: 22/09/2020 Product code: Version: v.2.0...
-
Page 3: Preface
Preface Thank you for purchasing the i-wash® Basic or Pro Reach. With the i-wash Basic or Pro Reach you can keep your feet on the ground and work at heights up to 9,5 meters using just one telescopic pole set and even up to 18 meters with 3 extra modular poles (only in combination with the Pro version). -
Page 4: Reading Guide
Reading guide The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: Symbol Term Explanation WARNING Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries of the operator or bystanders, light and/or moderate damage to the product or the environment. -
Page 5: Table Of Contents
Content Preface ..................................3 Purpose of the user manual ............................ 3 Target audience ..............................3 Operators of the Power wash ..........................3 Reading guide ................................4 Content ................................... 5 Introduction ..............................7 Intended use of the product ........................7 Non-intended use of the product ......................8 Lifespan .............................. - Page 6 Maintenance ..............................19 Adjusting the yellow clamps ........................ 19 Troubleshooting ............................20 Decommissioning and disposal ........................21...
-
Page 7: Introduction
The differences is that the i-wash Pro Reach is made of 100% carbon fiber and can be combined with extension poles. The i-wash Basic and Pro Reach are easy and safe tools to use, this manual helps you get started and explains the operation and maintenance procedure. -
Page 8: Non-Intended Use Of The Product
DO NOT use anything other than demineralized or deionized water. 1.3 Lifespan For a long lifespan of the i-wash Basic or Pro Reach, clean it and check it on damage after each use. 1.4 Modifications It is not permitted to make modifications to the design of the i-wash Basic or Pro Reach without consultation and permission from the manufacturer. -
Page 9: I-Wash® Pro Reach
Using other products will void the manufacturer’s warranty. Using alternative supplies may cause damage to the i-wash Basic or Pro Reach and may cause a risk to the operator. The use of alternative supplies voids manufacturer's warranty. -
Page 10: Description
2 Description The i-wash® Basic and Pro Reach consist of 6 tubes and a brush or pad. The tubes have a yellow marking to warn that you are almost at the end of the tube. The red marking indicates the end of the tube. -
Page 11: Safety
3 Safety Safety comes first. Therefore, please take your time to read and understand these safety instructions. Improper use can cause harm or void the manufacturer’s warranty. 3.1 Risks during operation WARNING Carbon conducts electricity: • DO NOT use in thunderstorms, this may result in electrocution, injury, or even death; •... -
Page 12: Transport And Storage
4 Transport and storage • clean the i-wash® Basic or Pro Reach with a damp cloth before you store it; • secure the i-wash Basic or Pro Reach during transport. -
Page 13: Assembly And Installation
5.1 Unboxing In this section the unboxing of the i-wash® Basic Reach (Figure 6, pos 4) is described. The contents of the box for the i-wash® Pro Reach are identical to that of the i-wash Basic Reach. Figure 6 1x 26 cm medium soft brush 1x i-wash Basic Reach 1x “all season”... -
Page 14: Operation
6 Operation 6.1 Before you start ATTENTION Make sure that all connections are secure. 6.1.1 Changing the brush or pad CAUTION Before installing the brush, always turn off the water supply. Specific glass cleaning jobs require specific brushes. In the text below you can read how to change the brush. -
Page 15: Changing The Gooseneck
6.1.2 Changing the gooseneck CAUTION Before installing or changing the gooseneck, always turn off the water supply. In order to reach difficult spots to clean, different or multiple goosenecks can be used. In the text below you can read how to change the gooseneck. -
Page 16: Operation Procedure
(Figure 10, pos 1). The soft ball (Figure 10, pos 3) prevents the connection from being damaged. 2. Place the i-wash Basic or Pro Reach against the object that you want to clean. 3. Start the water supply. 4. Start cleaning. -
Page 17: Adding Extension Parts
6.2.2 Adding extension parts If you need extra length you can add tube extension parts 1 and 2, see section 1.5.3. 1. Disconnect the water supply hose (Figure 12, pos 3). 2. Remove the soft ball (Figure 12, pos 2) from the tube hose. -
Page 18: Cleaning And Storage
Basic or Pro reach, close the water supply; • drain the i-wash Basic or Pro reach; • disconnect any accessory; • clean the i-wash Basic or Pro reach; • store the i-wash Basic or Pro reach in a cool, dark area. -
Page 19: Maintenance
All other maintenance and service activities must be done exclusively by skilled workers using only i-team Global spare parts. The manufacturer is not responsible or liable for any loss or damage arising from improper service or service done by unskilled workers. -
Page 20: Troubleshooting
No water supply Check that the water supply not spray connection is correctly connected. i-wash Basic or Pro Reach is Flush the hoses with water clogged and check the pencil jet or fan sprayers of the brush for dirt. Carbon from the tubes wears out... -
Page 21: Decommissioning And Disposal
It is the responsibility of the i-wash® Basic or Pro Reach owner to dispose of the product responsibly. At the end-of-life the i-wash Basic or Pro Reach still contains valuable resources and needs to be disposed of according to your local laws and regulations regarding recycling of electrical equipment. - Page 22 This document is part of the technical file of the i-wash® Basic and Pro Reach and will be available upon request.
