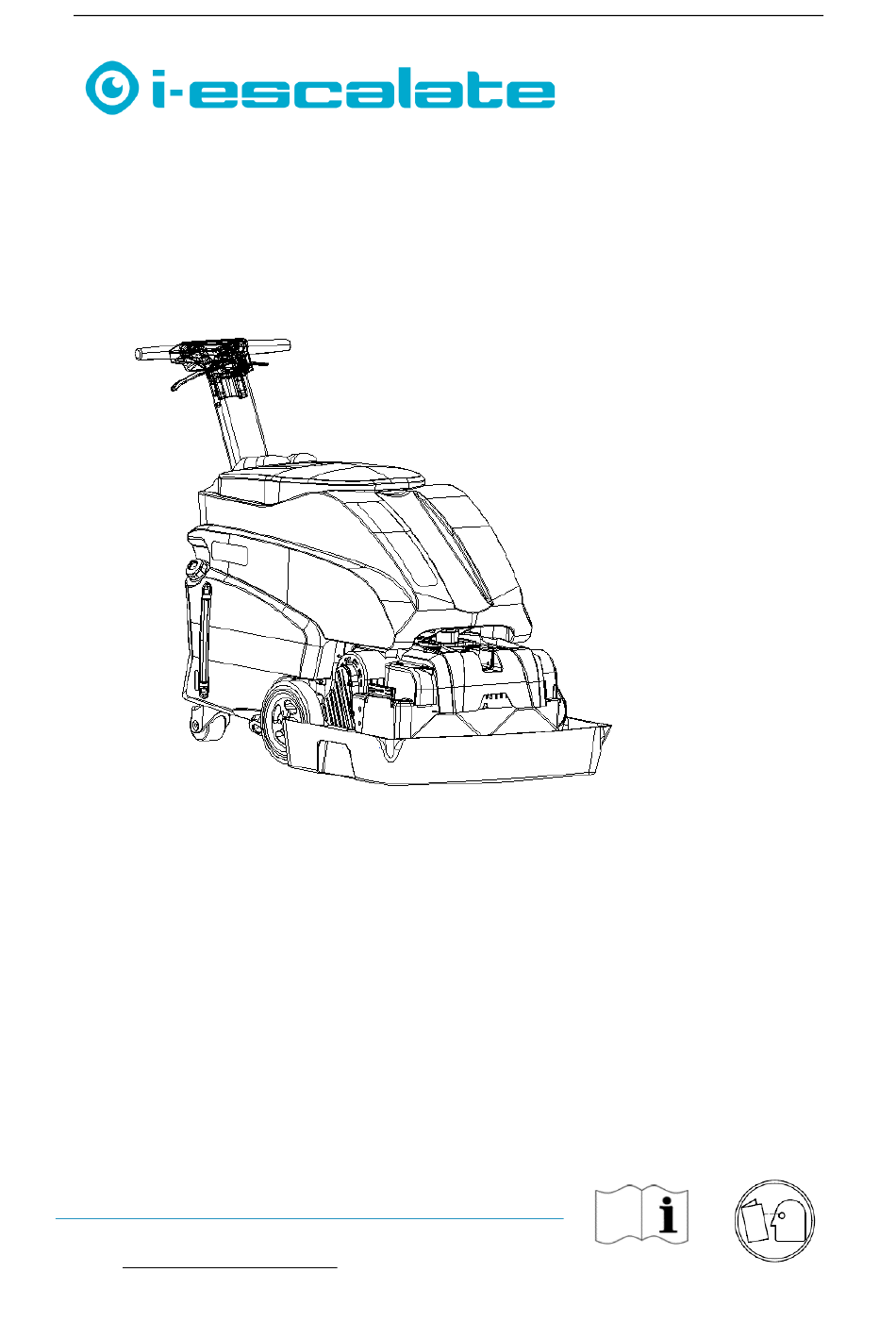

- Page 1 User manual Version 1.0 i-escalate 520 Dated 08 Oct-2024 i-team Professional b.v. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com...
- Page 2 The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: Symbol Term Explanation Read the instructions before using the machine. INFORMATION Indicates a hazardous situation which, if the safety WARNING instructions are not followed, can lead to injuries of the operator or bystanders and light and/or moderate damage to the product or the...
-
Page 3: How The Machine Works
Packaging Material Disposal： To protect our environment, please follow your local trash disposal rules. Machine Set-up： For video: scan QR code to see unbox video. ⚫ Unpack the crate； ⚫ Lift the left-side handle bar to release the brake; ⚫ Move out the machine from the skid. How the Machine Works: Once the machine enters the cleaning position with power switched on: ⚫... -
Page 4: Major Components
Major Components: 1. Deck: Dual brushes, dual motors, dual gearboxes 2. Solution Tank 3. Handle and Control Panel 4. Gearboxes 5. Recovery Tank 6. On-site brush deck cleaning tray... - Page 5 Important Safety Instructions (Must read carefully!): Grounding instructions. This device must be grounded, or it should malfunction or break down. Grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This device is equipped with a cord having an equipment-grounding conductor and grounding plug.
- Page 6 Operating the Machine: Control Panel Right: Power On/Off Switch Middle: Switch for Regular Daily Maintenance and Deep Cleaning Left: Nozzle Spraying On/Off Switch Cleaning Mode: 1, Regular Daily Maintenance 2, Deep Cleaning (Recommended for the escalators with dirt and soil built Operating the Machine: ⚫...
- Page 7 ⚫ Check the leakages, unusual noise and the proper function of the control panel. Contact your local distributor if any of these are detected. After 100 hours in Service: ⚫ loose components; ⚫ dirt/soil built up inside the recovery tank; ⚫...
- Page 8 The Chemicals ⚫ must use recommended by the manufacturer or your local distributor; ⚫ rinse the solution tank and the hose connecting to the nozzles every time after the operation. Or the chemicals may build up inside to cause clogging. Nozzles &...
-
Page 9: Troubleshooting
Troubleshooting: PROBLEM CAUSE AND SOLUTION vacuum Inspect the brushes and brush housing. Any dirt and pump/brush soil being built up may trigger the overloading motors stop protection of the pump or brush motor; working Inspect the brush wearing and replace the worn down brushes Too much residual... - Page 10 AC Power Cord Version: 1275.5mm*523 mm*952.5 mm Dimensions Weight ≈115 kg Recovery Tank Capacity Solution Tank Capacity 11-12L Brush Width 520 mm DC power input 230V 60Hz Brush RPM 1200 RPM Vac Pump 800W Water Flow Rate 550-650 mL/min Recovery Rate >75% 300W Brush Motor...
- Page 11 Warranty: ⚫ One year warranty provided by the manufacturer; ⚫ Please make sure to use the detergent provided by the manufacturer which is specially formulated for escalator scrubber. Or any other liquid that is formulated for escalator cleaning. The manufacturer will not be responsible for any of the damages done to the machines, escalators or moving walkways by applying any cleaning chemicals other than that from the manufacturer.
- Page 12 Professional b.v. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com...
