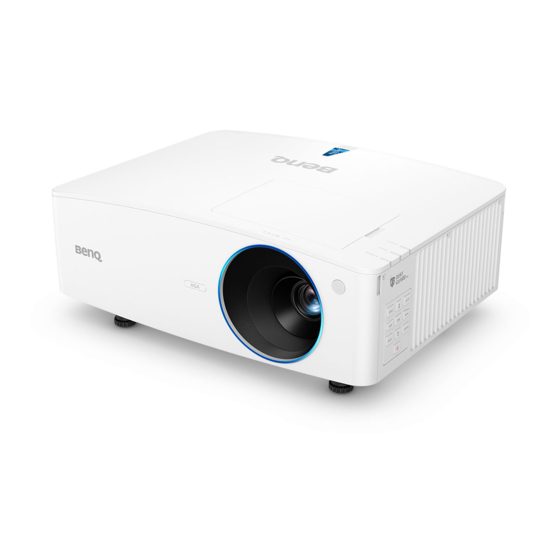

LX710/ LX710D
Projector RS232 Command Control
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BenQ LX710

Summary of Contents for BenQ LX710

  • Page 1 LX710/ LX710D Projector RS232 Command Control Installation Guide...

  • Page 2: Table Of Contents

    Table of Contents Introduction ............................. 3 Wire arrangement ................................ 3 RS232 pin assignment ..............................3 Connections and communication settings ..................4 RS232 serial port with a crossover cable ....................... 4 Settings .................................. 4 RS232 via LAN ................................6 Settings .................................. 6 RS232 via HDBaseT ..............................

  • Page 3: Introduction

    Introduction The document describes how to control your BenQ projector via RS232 from a computer. Follow the procedures to complete the connection and settings first, and refer to the command table for RS232 commands. Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for product functions.

  • Page 4: Connections And Communication Settings

    Connections and communication settings Choose one of the connections and set up properly before RS232 control. RS232 serial port with a crossover cable D-Sub 9 pin (male) on a projector PC or laptop D-Sub 9 pin (female) Communication cable (crossover) Settings On-screen images in this document are for reference only.
  • Page 5 Choose Serial and the corresponding COM port as the communication port. In this given example, COM6 is selected. Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check...

  • Page 6: Rs232 Via Lan

    RS232 via LAN RJ45 port on a projector PC or laptop LAN cable Settings Find the Wired LAN IP address of the connected projector from the OSD menu and make sure the projector and the computer are within the same network. Input 8000 in the TCP port # field.
  • Page 7 Finish Serial port setup. Baud rate 9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps Check the baud rate of the connected projector from its OSD menu. Data length 8 bit Parity check None Stop bit 1 bit Flow control None...

  • Page 8: Command Table

    Command table  Available features differ by projector specification, input sources, settings, etc..  Commands are working if the standby power is 0.5W or a supported baud rate of the projector is set.  Uppercase, lowercase, and a mixture of both types of characters are accepted for a command. ...
  • Page 9 Write Mute Off <CR>*mute=off#<CR> Read Mute Status <CR>*mute=?#<CR> Write Volume + <CR>*vol=+#<CR> Write Volume - <CR>*vol=-#<CR> Write Volume level for customer <CR>*vol=value#<CR> Read Volume Status <CR>*vol=?#<CR> Write Mic. Volume + <CR>*micvol=+#<CR> Write Mic. Volume - <CR>*micvol=-#<CR> Read Mic. Volume Status <CR>*micvol=?#<CR>...
  • Page 10 > Write <CR>*appmod=thx#<CR> Write Silence mode <CR>*appmod=silence#<CR > Write DCI-P3 mode <CR>*appmod=dci-p3#<CR > Write Vivid <CR>*appmod=vivid#<CR> YES Write Infographic <CR>*appmod=infographic# <CR> Write User1 <CR>*appmod=user1#<CR> YES Write User2 <CR>*appmod=user2#<CR> YES Write User3 <CR>*appmod=user3#<CR> NO Write ISF Day <CR>*appmod=isfday#<CR> NO Write ISF Night <CR>*appmod=isfnight#<CR >...
  • Page 11 Read Flesh Tone value <CR>*fleshtone=?#<CR> Color <CR>*ct=warmer#<CR> Write Temperature-Warmer Write Color Temperature-Warm <CR>*ct=warm#<CR> Write Color <CR>*ct=normal#<CR> Temperature-Normal Write Color Temperature-Cool <CR>*ct=cool#<CR> Write Color Temperature-Cooler <CR>*ct=cooler#<CR> Color Temperature-lamp <CR>*ct=native#<CR> Write native Read Color Temperature Status <CR>*ct=?#<CR> Write Aspect 4:3 <CR>*asp=4:3#<CR> Write Aspect 16:6 <CR>*asp=16:6#<CR>...
  • Page 12 Read 4 Corners Top-Left-X <CR>*cornerfittlx=?#<CR> YES Status Write 4 Corners Top-Left-Y <CR>*cornerfittly=-#<CR> YES Decrease Write 4 Corners Top-Left-Y <CR>*cornerfittly=+#<CR> YES Increase Read 4 Corners Top-Left-Y <CR>*cornerfittly=?#<CR> YES Status Write 4 Corners Top-Right-X <CR>*cornerfittrx=-#<CR> YES Decrease Write 4 Corners Top-Right-X <CR>*cornerfittrx=+#<CR> YES Increase Read 4 Corners Top-Right-X...
  • Page 13 Write 4 Corners Bottom-Right-Y <CR>*cornerfitbry=-#<CR> YES Decrease Write 4 Corners Bottom-Right-Y <CR>*cornerfitbry=+#<CR> YES Increase Read 4 Corners Bottom-Right-Y <CR>*cornerfitbry=?#<CR> YES Status Write Digital Zoom In <CR>*zoomI#<CR> Write Digital Zoom out <CR>*zoomO#<CR> Write Auto <CR>*auto#<CR> Write Brilliant color on <CR>*BC=on#<CR> Write Brilliant color off <CR>*BC=off#<CR>...
  • Page 14 Read Menu Position Status <CR>*menuposition=?#<CR > Write Direct Power On-on <CR>*directpower=on#<CR > Write Direct Power On-off <CR>*directpower=off#<CR > Read Direct Power On-Status <CR>*directpower=?#<CR> YES Write Signal Power On-on <CR>*autopower=on#<CR> YES Write Signal Power On-off <CR>*autopower=off#<CR> YES Read Signal Power On-Status <CR>*autopower=?#<CR>...
  • Page 15 Read Lamp2 Hour <CR>*ltim2=?#<CR> Write Normal mode <CR>*lampm=lnor#<CR> Write Eco mode <CR>*lampm=eco#<CR> Write SmartEco mode <CR>*lampm=seco#<CR> Write SmartEco mode 2 <CR>*lampm= seco2#<CR> NO Write SmartEco mode 3 <CR>*lampm= seco3#<CR> NO Write LampSave+ mode <CR>*lampm= lampsave+#<CR> Write Dimming mode <CR>*lampm=dimming#<CR > Write Custom mode <CR>*lampm=custom#<CR...
  • Page 16 Write Blank On <CR>*blank=on#<CR> Write Blank Off <CR>*blank=off#<CR> Read Blank Status <CR>*blank=?#<CR> Write Freeze On <CR>*freeze=on#<CR> Write Freeze Off <CR>*freeze=off#<CR> Read Freeze Status <CR>*freeze=?#<CR> Write Menu On <CR>*menu=on#<CR> Write Menu Off <CR>*menu=off#<CR> Read Menu Status <CR>*menu=?#<CR> Write <CR>*up#<CR> Write Down <CR>*down#<CR>...
  • Page 17 Write Remote Receiver-top+rear <CR>*rr=tr#<CR> Read Remote Receiver Status <CR>*rr=?#<CR> Write Instant On-on <CR>*ins=on#<CR> Write Instant On-off <CR>*ins=off#<CR> Read Instant On Status <CR>*ins=?#<CR> Write Lamp Saver Mode-on <CR>*lpsaver=on#<CR> Write Lamp Saver Mode-off <CR>*lpsaver=off#<CR> Read Lamp Saver Mode Status <CR>*lpsaver=?#<CR> <CR>*prjlogincode=on#<CR Write Projection Log In Code on >...
  • Page 18 BenQ.com © 2018 BenQ Corporation All rights reserved. Rights of modification reserved. Version: 1.01-C...
