- Page 1 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru MN-3253 Series User’s Manual (Version 1.0) Distributed Motionnet 32-ch Isolated DI Module...

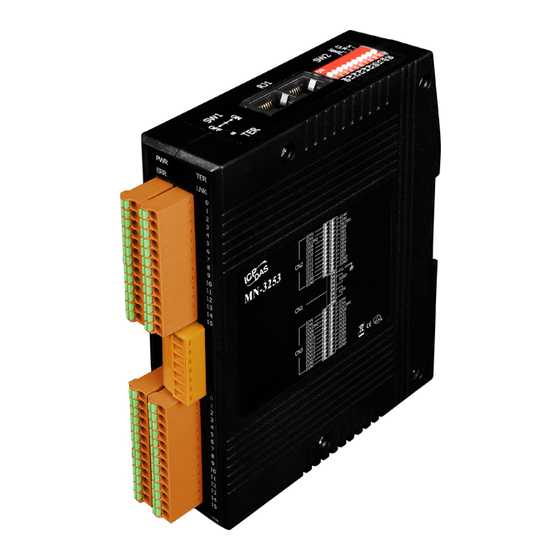

- Page 2 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru MN-3253 Series Motionnet 32 Input I/O Module The MN-3253(T) is an I/O expansion device for Motionnet systems, and is equipped with 32 isolated digital input channels. Each Motionnet communication line can be connected to up to 64 modules, meaning that the I/O can be expanded to up to 2048 input channels.
- Page 3 31mm x 147mm x 126.6 mm (W x L x H) Installation DIN-Rail mounting Environmental Operating Temperature 0 ~ + 60°C Storage Temperature -20 ~ +80°C Operating Humidity 10 ~ 85%; Non-condensing Storage Humidity 5 ~ 95%; Non-condensing ICP DAS MN-3253 Series User’s Manual Rev1.0 2015/04/10...
- Page 4 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru 3. Internal circuit of MN-3253 Series Digital Input NPN Connection Internal Circuit DICOM 10~30V Power Control Source Circuit Switch 4.7 k Ohm PNP Connection Internal Circuit DICOM...
- Page 5 ГК Атлант Инжиниринг – официальный представитель в РФ и СНГ +7(495)109-02-08 sales@bbrc.ru www.bbrc.ru 4. I/O Signal connectors of MN-3253 Series n CN1 ~ CN3 Pin Define. Specifications I/O Define. CN1 Pin Assignments F.G. Frame Ground EGND External Ground Input E24V...
- Page 6 This switch is used to set the on board termination resistor. The on board termination resistor is enabled when the switch is set to “ON”. Please be sure to enable the termination resistor only on the last slave module of each line. ICP DAS MN-3253 Series User’s Manual Rev1.0 2015/04/10...
- Page 7 (WDT) WDT will expired if consecutive communication error Setting 5/20 occure for the preset period of time. 5: The expire time is 5 ms (default) 20: The expire time is 20 ms ICP DAS MN-3253 Series User’s Manual Rev1.0 2015/04/10...
- Page 8 LED will be Green when the corresponding DI is configured as NPN input and it will be Yellow when the corresponding DI is configured as PNP input. 7. Rivision History Rev 1.0 2015/04/10 Initial Version ICP DAS MN-3253 Series User’s Manual Rev1.0 2015/04/10...
