ONT180C Installation and Turnup Guide
Copyright © 2021 Tellabs
®
All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONT180C and is the answer not in the manual?

Questions and answers

Related Manuals for Tellabs ONT180C

Summary of Contents for Tellabs ONT180C

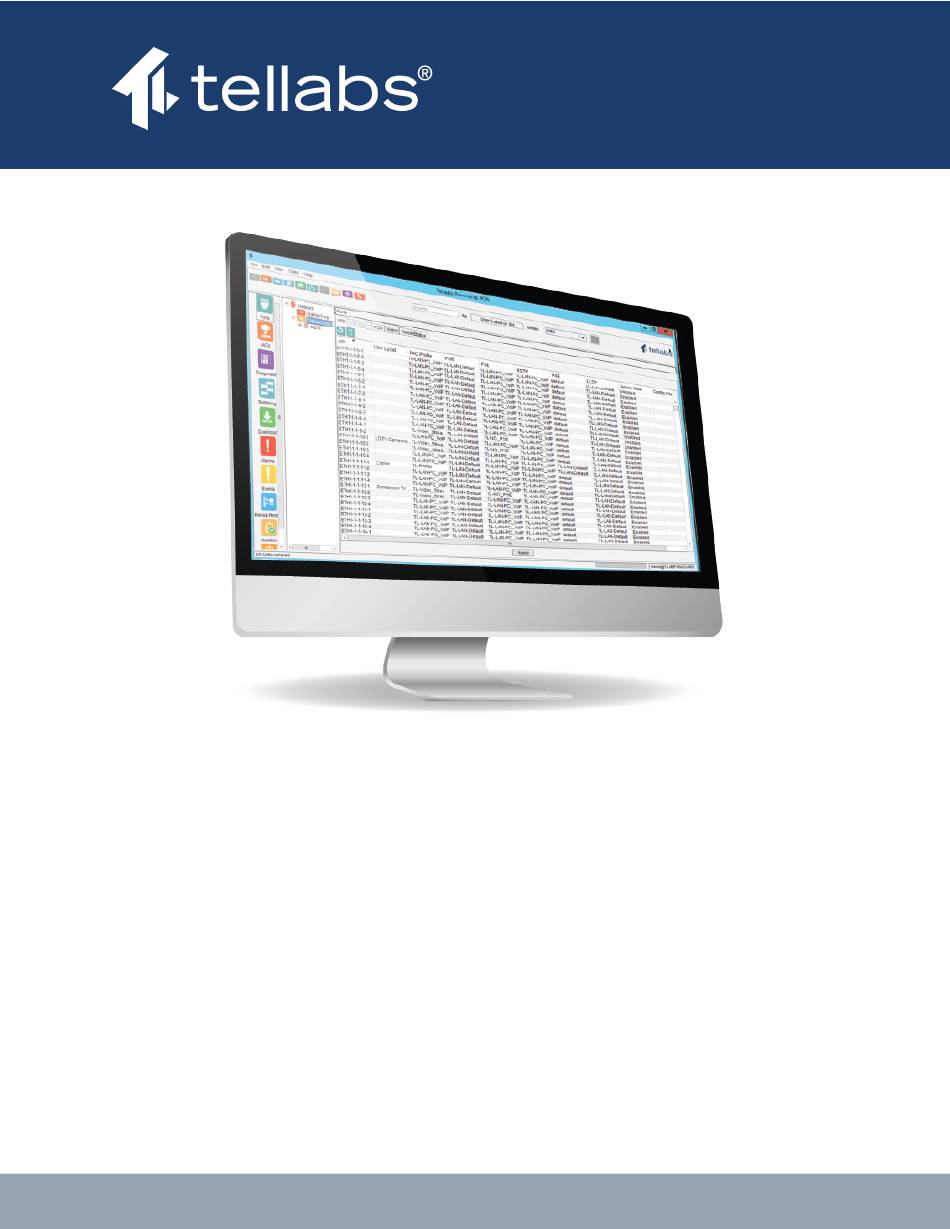

  • Page 1 ONT180C Installation and Turnup Guide Copyright © 2021 Tellabs ® All Rights Reserved...

  • Page 2: Tellabs® Information

    Tellabs Enterprise, Inc. Although every precaution has been taken in the preparation of this publication, Tellabs Enterprise, Inc. assumes no (i) responsibility for errors or omissions contained herein or (ii) liability for any damages resulting from the use of information contained herein.

  • Page 3: Table Of Contents

    ONT180C Installation and Turnup Guide Table of Contents Tellabs® Information........................2 Copyright............................2 Trademarks............................2 Proprietary............................2 1. Tellabs® ONT180C Installation and Turn Up Guide..............4 1.1. Description..........................6 1.2. Site Preparation........................13 1.3. Safety Precautions........................17 1.4. Installation..........................19 1.5. Contact Us..........................33 1.6.

  • Page 4: Tellabs® Ont180C Installation And Turn Up Guide

    This guide describes the Tellabs ONT180C optical network terminal (ONT), its features, status indicators, installation. The ONT180C is part of the Tellabs 100 series of ONTs for passive optical networks (PON). It is a compact desktop unit that can sit on a desk, mounted to any number of surfaces using a wall mount bracket (optional).
  • Page 5 ONT180C Installation and Turnup Guide enterprise features, combined with cost, energy, and space savings, all within the Tellabs exclusive high-security All Secure™ PON. Intended Audience This document is intended for technicians responsible for: · Preparing the install location · Unpacking and installing the ONT and any accessories ·...

  • Page 6: Description

    · ONT180C Manual Controls and Switches · ONT180C Specifications The ONT180C supports the following features. General Features · Single fiber GPON interface with 1.25Gbps upstream and 2.5Gbps downstream data rates · 802.3bt 4PPoE Type 3 PSE capable of Class 1 through 6 , supplying up to 60W on a single port (51W at the PD) for powering downstream Powered Devices (PD), with 140 W total PoE output for the ONT when powered by the AC adapter...
  • Page 7 ONT180C Installation and Turnup Guide · Forward Error Correction(FEC) · IP DSCP to 802.1pbit mapping · Rich set of LED indications for alarming and maintenance · Supports eight (8) VLANs per port, 25 VLANs per port when VLAN trunk is used, up to 125 VLANs per ONT.
  • Page 8 Security Tellabs has implemented unique advanced security features to protect enterprise networks. The ONT180C supports security across the optical distribution network and end-to-end over the OLAN system; such as encryption of traffic on the PON using the Advanced Encryption Standard AES-128 and Access Control Lists (ACL) at Layer 2 through 4 levels.
  • Page 9 (when viewed from the rear). ONT180C Indicators The top of the ONT180C has 10 LED indicators near the front edge: · Power– shows status of the DC power input · PON– shows status of the Passive Optical Network (PON) ·...
  • Page 10 The Ethernet Port is disabled or link is not detected ONT180C Manual Controls and Switches The ONT180C has only one user-operable control: · Reset – This pushbutton resets the ONT The Reset pushbutton is accessible through a small hole on the right-hand side of the unit (when viewed from the front).
  • Page 11 ONT180C Installation and Turnup Guide Table B - ONT 180 Specifications DC Input Power DC 54V connector 48 VDC to 56 VDC @ 2.8 A max (~150 W) UPS connector Physical Dimensions: 8.7 x 6.3 x 1.4 in / 22 x 16 x 3.4 cm (W x D x H) ONT180C Weight : 1.25 lb / 0.6 kg...
  • Page 12 ONT180C Installation and Turnup Guide Class 5 (802.3bt) Class 6 (802.3bt) Compliance ITU-T G.984.1, G.984.2, G.984.2 amd1, G.984.3, G.984.4, G.983.2 FDA 21 CFR 1040.10 and 1040.11 FCC 47 CFR part 15 (Class B), EN55022:2010, EN55024:2016, and EN 61000- 3-3, 2008 Safety UL 60950-1 Ed.02...

  • Page 13: Site Preparation

    The ONT180C consumes a maximum of 10 Watts of power with no PoE devices connected to it. The amount of PoE power available from the ONT180C depends on the DC power input to the ONT (subject to the PoE class limitations and NEMA class 2...
  • Page 14 Transmit power 0.5 dBm +5 dBm Receiver Wavelength 1480 nm 1490 nm 1500 nm Minimum received Sensitivity –27 dBm power for BER<10-10 Table B - ONT180C Maximum PoE Power DC Input DC Max PoE Power Output Page 14 of 38...
  • Page 15 · Phoenix-type pluggable terminal connector (5.08 mm pitch 2P) If multiple ONT180Cs are ordered, or optional accessories are ordered along with the ONT180C, they may be packed in the same shipping container, or be shipped separately. The following table gives the 180C part numbers and accessories associated with the 180C.
  • Page 16 · AC powered using the 150W power supply · Locally powered via 54V to 57V DC remote power Tellabs has many locally powered sites and can recommend the correct powering option for the number of ONTs and power requirements based on the amount of attached PoE devices.

  • Page 17: Safety Precautions

    ONT180C Installation and Turnup Guide 1.3. Safety Precautions · Safety Precautions · Laser Safety · Electrical Safety Product Disposal Symbol The Waste Electrical and Electronic Equipment (WEEE) symbol will accompany specific products that must be collected and disposed of separately from household waste. The black bar under the symbol signifies the product was placed on the market after August 13, 2005.
  • Page 18 Permanent eye damage or blindness can occur quickly from laser radiation. Electrical Safety DANGER! Do not open the enclosure unless directed to do so by Tellabs technical support, which is dangerous and voids the warranty.    · Check that the DC power supply polarity is correct. The ONT will not be damaged by reversed polarity, but will not operate until the polarity is corrected.

  • Page 19: Installation

    ONT180C Installation and Turnup Guide 1.4. Installation · Installation · Application · Location Selection and Planning · Desktop vs. Wall Mount · Powering the ONT180C · Wall Mounting Bracket · Tools and Supplies · Tools · Supplies · Unpacking and Checking the ONT180C ·...
  • Page 20 ONT into operation. Application The Tellabs ONT180C is for indoor use, only, in temperatures ranging from 32° F to 104° F (0° C to 40° C) and relative humidity ranging from 5% to 85%.
  • Page 21 Powering the ONT180C The ONT180C requires 54 VDC at up to a maximum of 2.8 amps (at full PoE load). DC power can be obtained from one of the two optional AC adapters plugged into a power source near the installation location, or from a central remote bulk 54-volt DC power...
  • Page 22 A composite cable that is somewhat longer than the actual shortest route distance from the ONT180C to the optical splitter should be obtained. Excess cable length can be loosely coiled in a location that will keep it safe from damage.
  • Page 23 · Digital multimeter with test leads (a DMM with only basic functions will do) to test power for DC remote power installations. Supplies The following list of supplies should cover most typical ONT180C installations (supplies are locally sourced): · Fasteners o Select screws, drywall anchors, and masonry anchors of the appropriate size for the light weight of the ONT and optional Wall Mounting Bracket (<...
  • Page 24 Installing the Tellabs ONT180C consists of the following steps 1. The physical installation:  o Placing the ONT180C on a desktop or other surface o Mounting the ONT180C to a wall, the back or underside of a desk, or some other surface 2. Connecting the ONT180C to DC power: ...
  • Page 25 Physical Installation Desktop Installation The ONT180C can simply be placed on top of a desk, a table, a shelf, or any similar object. An optional Wall Mounting Bracket can be used to store excess fiber cable length under the ONT as it sits on a desk or other surface.
  • Page 26 ONT180C Installation and Turnup Guide Storing Excess Optical Fiber Cable Length Inside the Bracket If the optical fiber cable is a little long, the excess can be wound around guides molded inside the Wall Mounting Bracket before the ONT is attached. This prevents cable bend radii that are less than optimum.
  • Page 27 Powering the ONT180C DC power for the Tellabs ONT180C can be provided by one of two optional desktop adapters (150-W and 81-W power bricks) at the point of installation, or by a remote bulk DC power supply.
  • Page 28 7. Plug the Phoenix DC power connector into the ONT DC 54V connector. If the remote DC bulk power supply is on, the ONT Power LED Indicator will come on in about five seconds and be steady green. (See the ONT180C LED Indicator Quick Reference Table in the Operation chapter.)
  • Page 29 ONT180C Installation and Turnup Guide The optical fiber connector is located on right side of the ONT when viewed from the rear. A removable cover protects the connector and prevents any inadvertent exposure to the laser when no cable is installed.
  • Page 30 ONT180C Installation and Turnup Guide 6. Slide the cable connector into the ONT connector until a click is felt and heard. 7. Position the ONT optical fiber cable connector cover near the cover of the ONT case with the optical fiber cable in the slot in the cover.
  • Page 31 ONT180C Installation and Turnup Guide Figure 2 Cable Routing and Management Dress all cables connected to the ONT neatly and route them such that they are out of the way and cannot easily be stepped on or tripped over. Try to bundle cables that are going to the same place using cable ties. Reusable Velcro ties allow additional cables to be added to the bundle, or unused cables to be removed...
  • Page 32 ONT180C Installation and Turnup Guide when DC power is applied. If it is successful and the ONT is already activated at the Panorama PON EMS, the PON Indicator will be solid green. If a downstream optical signal is not seen, the PON Indicator LED will be solid red. This may indicate that the PON port is disabled, failed, or a bad cable between the OLT and ONT.

  • Page 33: Contact Us

    1.5. Contact Us Tellabs Technical Assistance Center Tellabs TAC is available 24X7X365. Our team is comprised of Support Engineers with years of telecommunications and networking experience, holding a variety of networking certifications in addition to the Tellabs Certification for the product(s) they support.
  • Page 34 ONT180C Installation and Turnup Guide · North America Toll Free: +1 800 690 2324, option 6 · International: +1 630 798 9900, option 6 · France: 01 85 64 04 05, option 6 Page 34 of 38...

  • Page 35: Add To Panorama Ems

    ONT180C Installation and Turnup Guide 1.6. Add to Panorama EMS An ONT must be added to the EMS from the EMS GUI.  This can be done in one of several ways:  · Configuration via the Unexpected ONT menus · Manual Pre-configuration ·...
  • Page 36 ONT180C Installation and Turnup Guide All ONTs that have not been accepted onto the PON will be shown in the dialog and each can be configured and accepted onto the PON.  The following editable fields are present:  · Configure (Y/N): Whether or not to configure the ONT.  Selecting N will ignore that ONT and will leave it in the unconfigured state. ...
  • Page 37 ONT180C Installation and Turnup Guide The intent is that you would configure the ONT prior to installation and upon installation the unit would be automatically accepted, and go into service without any further manual intervention.   On the Panorama GUI, select the correct PON and then right click and select Add ONT.
  • Page 38 ONT180C Installation and Turnup Guide Auto Configuration and ONT Templates You can learn more about configuring ONTs via Auto configuration and using Templates to define all the default settings for ONT configuration in the following Application Note:   ENG-010407 ONT Auto Configuration Support...
