Vigitron MaxiiNet Vi3005 Installation Manual page 2

Technical Specifications*
Electrical
Ethernet Interface Standard 10/100BaseT
Fiber Optics 100Mbps, SFP socket, depends on the SFP & fiber type
Power Supply 48-57VDC @ 2A min. for 802.3 at 30W / port
Connectors Ethernet Interface: 5 x RJ-45 Connector
Fiber Optics: SFP Socket
Power: Round 2.5mm cpower onnector
RFC 2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
Compatible with IEEE 802.3af PoE, IEEE 802.3at PoE
Environmental
Humidity 0 to 95%, non-condensing
Temperature Operating: -30°C to +75°C
Storage: -40°C to +75°C
Mechanical
Dimensions 1.2x3.17x3.76 in., 30.48x80.52x95.50 mm (HxWxL)
Weight 0.45 lb (204 g)
Material Aluminum
Accessories
56VDC, 120W External power supply (optional)
*Specifications subject to change without notice.

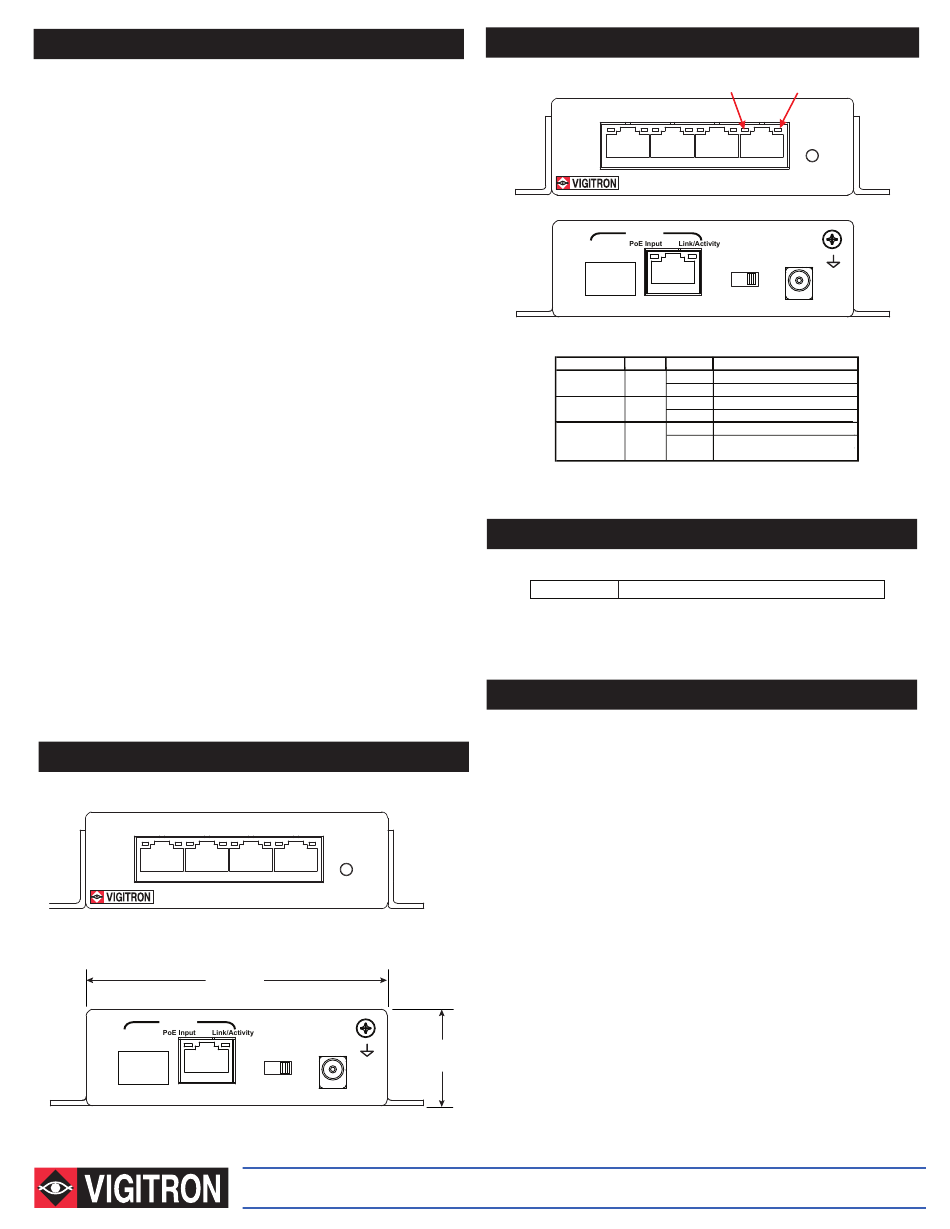

Drawings
2
1
Link/Act PoE
Vi3005
MaxiiNet 4-Port PoE Switch
Front View
Uplink
SFP
3 4
Power
3.75"
9.53cm
Power
12DC
Input PoE
48-57VDC
30W 60W
Rear View
TEL (+1) 858 - 484 - 5209 • FAX (+1) 858 - 484 - 1205
7810 Trade Street, Suite 100, San Diego, CA 92121, USA • support@vigitron.com • www.vigitron.com
Link/Act
SFP
LED Name
Power
PoE
10/100 BaseT
Ethernet
Part No.
Vi3005
Limited Lifetime Warranty
Vigitron, Inc. warrants that all Vigitron products ("Product"), if used in accordance
with these instructions, will be free of defects in material and workmanship for
lifetime defined as the duration period of time until product end of life is announce-
ment. After which Vigitron will continue to provide warranty services for a period of 3
years. Period covering valid warranty will be determined by proof of purchase in the
form of an invoice from an authorized Vigitron dealer.
Warranty will only be provided for as long as the original end user purchaser owns
the product. Warranty is not transferrable. At Vigitron's option, defective product will
be repaired, replaced or substituted with a product of equal value. This warranty
does not apply if, in the judgment of Vigitron, Inc., the Product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used
or maintained not conforming to Product manual instructions, has been modified, or
serial number removed or defaced. Repair by anyone other than Vigitron, Inc. or an
approved agent will void this warranty. Vigitron, Inc. shall not under any circumstanc-
es be liable to any person for any incidental, indirect or consequential damages,
including damages resulting from use or malfunction of the product, loss of profits or
revenues or costs of replacement goods. The maximum liability of Vigitron, Inc.
under this warranty is limited to the original purchase price of the Product only.
Prior to returning any defective Product, the end customer or the reseller from whom
1.2"
the end customer originally purchased the Product must obtain a Return Materials
3.0cm
Authorization (RMA) number from Vigitron, Inc. All defective Products should be
returned to Vigitron, Inc. with shipping charges prepaid. No collect shipments will be
accepted.
Status LEDs
Link/Act
1 2 3 4
PoE
Vi3005
MaxiiNet 4-Port PoE Switch
Uplink
Input PoE
48-57VAC
30W 60W
Color Status Function
OFF Power is OFF
GREEN
ON Power is ON
OFF PoE is OFF
GREEN
ON PoE is ON
No connection
OFF
ORANGE ON /
Connection is OK, 100BaseT Mode
FLASHING
Ordering Information
Description
5-Port PoE Powered PoE Switch
PoE
Power
Power
12DC
© Copyright 2022 Vigitron, Inc.
Vi3005_UM
