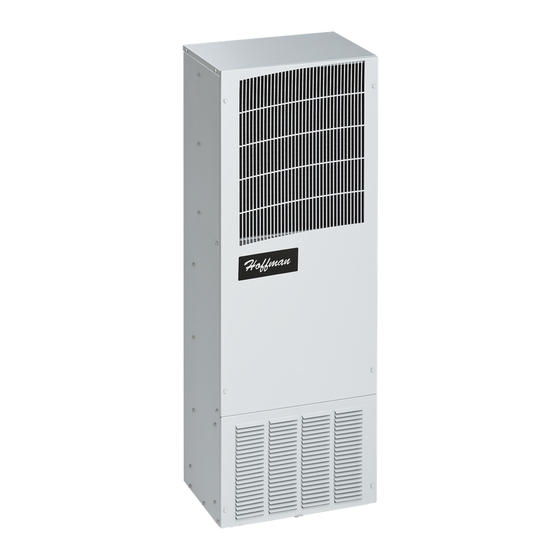

- Page 1 T-SERIES Air Conditioner t50-1226-G106B Model INSTRUCTION MANUAL © 2018 nVent 87976503 Rev. D P/N 10-1008-205...
-
Page 2: Table Of Contents
HOLD HARMLESS ..................................15 NOTE: Some of the information in this manual may not apply if a special unit was ordered. If additional drawings for a special unit are necessary, they have been inserted. Contact nVent Equipment Protection if further information is required. -
Page 3: Receiving The Air Conditioner
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to nVent Equipment Protection -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 4: Installation Instructions
HACR circuit breaker. DESIGN DATA BTU/Hr. @ Max Ambient Shipping Full Load Model Voltage Phase Max Ambient Temperature Weight Amps Temperature (°F/°C) (lb./kg) T50-1226-G106B 50/60 9.0/9.5 11600/13100 131/55 164/74.6 DIMENSIONAL DRAWING © 2018 nVent 87976503 - 4 -... -
Page 5: Mounting Cutout Dimensions
Compressor Start Relay 10-1042-17 Filter, Air, Reusable 10-1000-83 Filter/Dryer 52-6028-06 Freeze Stat 10-1061-05 Head Pressure Control Switch 52-6104-26 Impeller, Evaporator 10-1091-88 Service Cord 52-6035-124 Terminal Block 10-1003-31 Thermal Expansion Valve 10-1040-33 Thermostat, SPDT, 60-101F 10-1061-03 © 2018 nVent 87976503 - 5 -... -
Page 6: Wire Diagram
WIRE DIAGRAM © 2018 nVent 87976503 - 6 -... -
Page 7: Schematic
SCHEMATIC © 2018 nVent 87976503 - 7 -... -
Page 8: Temperature Control
Continued operation under the above conditions can and will damage and shorten compressor life. The air conditioner is available with an easily removable inlet filter to facilitate necessary cleaning. There should be no reason to neglect this necessary maintenance. © 2018 nVent 87976503 - 8 -... -
Page 9: How To Remove, Clean Or Install A New Inlet Air Filter
CAUTION Operation of the air conditioner in areas containing airborne caustics or chemicals can rapidly deteriorate filters, condenser coils, blowers and motors, etc. Contact nVent Equipment Protection for special recommendations. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system. -
Page 10: Trouble Shooting
(replace control box cover for safety). This will activate the switch in the thermostat. Turn the power on and if both fans and the compressor come on, the thermostat needs to be replaced. © 2018 nVent 87976503 - 10 -... -
Page 11: Symptoms And Possible Causes
Drain plugged Drain tube kinked Getting water in enclosure Enclosure not sealed (allowing humidity in) Mounting gasket damaged For additional technical information (i.e., amp draw, pressures, temperatures) , contact nVent Equipment Protection at 800-896-2665. © 2018 nVent 87976503 - 11 -... - Page 12 NOTES © 2018 nVent 87976503 - 12 -...
- Page 13 NOTES © 2018 nVent 87976503 - 13 -...
-
Page 14: Warranty
Should any part prove defective within the above warranty period, the customer may choose to return the defective product that is under warranty to nVent Equipment Protection for repair at no charge or the customer has the option to repair the defective products at his own expense and nVent Equipment Protection will supply repair parts at no charge providing the defective part is returned and found to have failed under warranty. -
Page 15: Hold Harmless
Protection shall have the right and option to undertake and control the entire defense of such claim, or demand instituted against the customer or user, but limited to the products made or sold by nVent Equipment Protection, through counsel selected by nVent Equipment Protection, and to settle and pay... - Page 16 © 2018 nVent 87976503 Rev. D P/N 10-1008-205...
