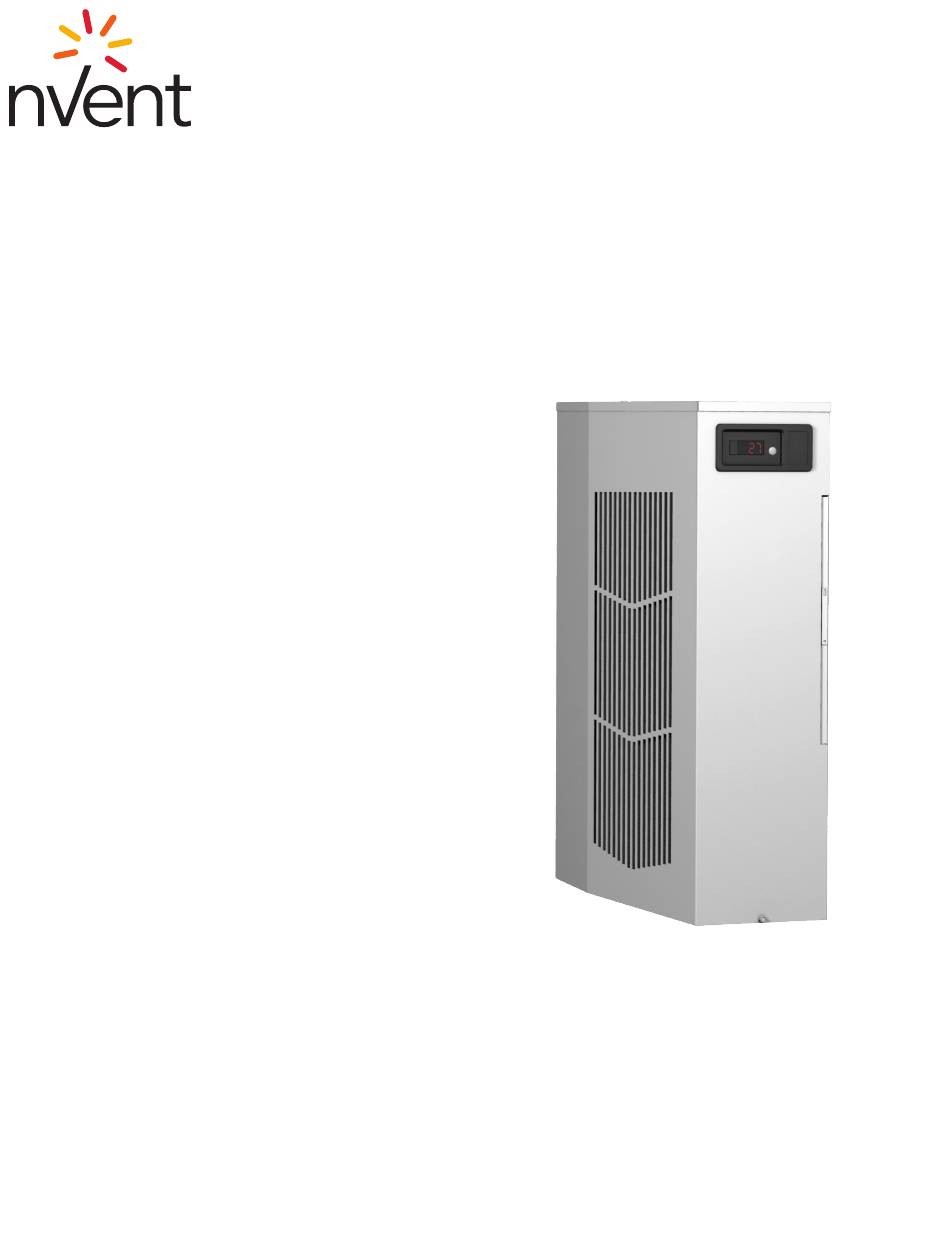

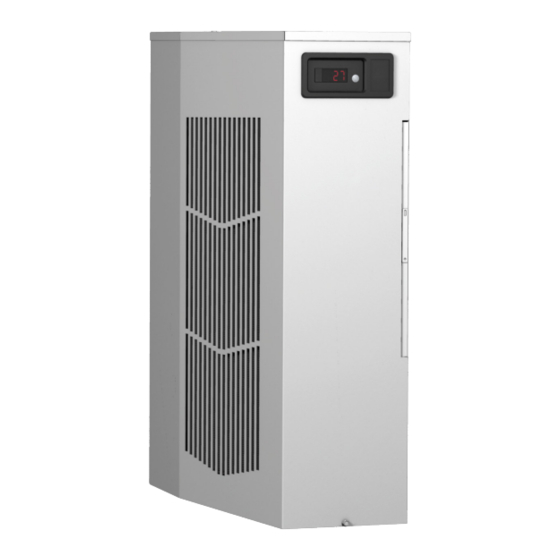

- Page 1 SPECTRACOOL Air Conditioner, HAzArdous LoCAtions nHz28 ModeL INSTRUCTION MANUAL Rev. A © 2022 nVent 89215757 P/N 89215757...
-
Page 2: Table Of Contents
NHZ280426GXXX Pressure Tables ................................33 F-Gas Information ..................................33 Trouble Shooting .................................... 34 Basic Air Conditioning Trouble Shooting Check List - SMART CONTROLLER ..................34 Symptoms and Possible Causes - Remote Access Control Version ....................... 35 © 2022 nVent 89215757 - 2 -... -
Page 3: Warranty And Return Policy
Damage evident upon receipt should be noted on the freight bill. Damage should be brought to the attention of the delivering carrier -- NOT to nVent Equipment Protection -- within 15 days of delivery. Save the carton and packing material and request an inspection. Then file a claim with the delivering carrier. -
Page 4: Handling And Testing The Air Conditioner
The moisture that the enclosure air can contain is limited. If moisture flows from the drain tube continuously this can only mean that ambient air is entering the enclosure. Be aware that frequent opening of the enclosure’s door admits humid air that the air conditioner must then dehumidify. © 2022 nVent 89215757 - 4 -... -
Page 5: Standard And Optional Component Operation
Opening the enclosure can also introduce humidity back into the enclosure which will eventually condense on the evaporator coil and become part of the seal in the drain trap. © 2022 nVent 89215757... -
Page 6: Schematics And Wiring Diagrams
SCHEMATICS AND WIRING DIAGRAMS GENERIC 115V SCHEMATIC (ACTUAL UNIT OPTIONS MAY VARY) GENERIC 230V SCHEMATIC (ACTUAL UNIT OPTIONS MAY VARY) © 2022 nVent 89215757 - 6 -... -
Page 7: Generic 460V Schematic (Actual Unit Options May Vary)
GENERIC 460V SCHEMATIC (ACTUAL UNIT OPTIONS MAY VARY) © 2022 nVent 89215757 - 7 -... -
Page 8: Generic 115V Wire Diagram (Actual Unit Options May Vary)
GENERIC 115V WIRE DIAGRAM (ACTUAL UNIT OPTIONS MAY VARY) © 2022 nVent 89215757 - 8 -... -
Page 9: Generic 230V Wire Diagram (Actual Unit Options May Vary)
GENERIC 230V WIRE DIAGRAM (ACTUAL UNIT OPTIONS MAY VARY) © 2022 nVent 89215757 - 9 -... -
Page 10: Generic 460V Wire Diagram (Actual Unit Options May Vary)
GENERIC 460V WIRE DIAGRAM (ACTUAL UNIT OPTIONS MAY VARY) © 2022 nVent 89215757 - 10 -... -
Page 11: Dimensional Drawing
DIMENSIONAL DRAWING CONNECTOR CONTROLLER CONTROLLER AIR IN AIR IN COOL © 2022 nVent 89215757 - 11 -... -
Page 12: General Safety Information
Do not attempt to operate the air conditioner while it is horizontal or on its side, back or front. • Operation of air conditioner in areas containing airborne caustics or chemicals can rapidly degrade sealing properties of materials, deteriorate filters, refrigeration coils, blowers and motors. Contact nVent Equipment Protection for special recommendations. See Maintenance on page 28. DANGER Danger: explosion hazard - do not energize, disconnect, or troubleshoot equipment unless power has been switched off or the area is known to be non-hazardous. - Page 13 Lors d’une installation sur une armoire, seule la face avant/latérale, l’entrée d’air ambiant et la sortie d’air ambiant peuvent être exposées à l’environnement. Surface Mount Figure 1 Cut-out Drawing © 2022 nVent 89215757 - 13 -...
-
Page 14: Digital Thermostat Controller (Optional)
Note: nVent Hoffman network card (RAC module) is an optional accessory, therefore, some of the air conditioners ship without the network card but it is upgradable upon request. - Page 15 Compressor Running • Steady ON while compressor is running White Evaporator Running White Electric heater ON White Primary and/or lead controller Compressor and Condenser fan OFF White Freeze control while illuminated White Power ON © 2022 nVent 89215757 - 15 -...
- Page 16 © 2022 nVent 89215757 - 16 -...
-
Page 17: Displaying And Changing Program Settings
Default value High temperature alarm setpoint 125 F Low temperature alarm setpoint 40 F Door open alarm setting ArOP Alarm relay output NOTES: (4) The alarm relay output logic is designed to be configurable © 2022 nVent 89215757 - 17 -... - Page 18 No effect on function setpoint Compressor and condenser fan turns OFF for the duration Frost alarm Evaporator coil freezes of alarm. Alarm clears when Closed the outlet temperature sensor reaches 59 F © 2022 nVent 89215757 - 18 -...
-
Page 19: Displaying Temperature Data On Screen
This input is associated with the controller display alarm mnemonic dO (door open). To use this feature, remove the splice connector, and connect the two white wires to customer supplied enclosure door switch in its place. Note: do NOT apply power to this dry contact input. © 2022 nVent 89215757 - 19 -... -
Page 20: Primary-Secondary (Ps) Mode
7. Best recommendation is to configure the ACU that has Hoffman network card to be the primary one. CONNECTING UNITS TOGETHER IN PRIMARY/SECONDARY MODE Primary - Device ID 1 Secondary - Device ID 2 Secondary - Device ID 3 Secondary - Device ID 10 Figure 3 Primary-secondary network connectivity © 2022 nVent 89215757 - 20 -... -
Page 21: Connecting Units Together In Lead/Lag Mode
10. Set parameter H03 (total number of controllers connected) to 1 to 10. CONNECTING UNITS TOGETHER IN LEAD/LAG MODE Lead - Device ID 1 Lag - Device ID 2 Figure 4 Lead-Lag network connectivity © 2022 nVent 89215757 - 21 -... -
Page 22: Air Conditioner Unit Remote Communication Features
Air conditioners that include the optional Hoffman network card (RAC module) have remote communication capabilities utilizing SNMP, Modbus TCP, EtherNet/IP, Profinet Protocol via Ethernet connection, and Modbus RTU protocol via USB connection. nVent provides Windows interface application software that is available to download free from nVent support link https://go.nvent.com/remote-access-control-support-center. The Windows interface application software supports both Ethernet and USB communication. -
Page 23: Using Hoffman Pc Interface Tool
Enter the new network configuration to Device IP address, Gateway IP, and Trap IP, then click on Reprogram ACU button to write to the network card. • In order to be recognized the new networking configurations in local network, cycle power to the A/C unit is required. © 2022 nVent 89215757 - 23 -... -
Page 24: Usb Communication Mode
Enter the new network configuration to Device IP address, Gateway IP, and Trap IP, then click on Reprogram ACU button to write to the network card. • In order to be recognized the new networking configurations in local network, cycle power to the A/C unit is required. © 2022 nVent 89215757 - 24 -... -
Page 25: Ethernet Communication Mode
Refer to remote access control (RAC) Instruction Manual for configuring multiple units and with text message and email capability in Hoffman A.C. Monitor software. The remote access control Instruction Manual, P/N: 89091002 can be downloaded from nVent support center link, https://go.nvent.com/remote-access-control-support-center. -
Page 26: Remote Access Control Pin-Out
INLET TEMP PROBE DOOR OPEN SWITCH WHT63 GROUND RESERVED OUTLET TEMP PROBE RED45 MAL-FUNCTION ALARM BLU88 RESERVED UNIT REMOTE ON/OFF RESERVED RESERVED GROUND RESERVED DATA (-) DATA (+) GROUND DATA (-) DATA (+) GROUND © 2022 nVent 89215757 - 26 -... -
Page 27: General Safety Information
Hazardous Location rating may be compromised if the above are not followed. • Operation of air conditioner in areas containing airborne caustics or chemicals can rapidly degrade sealing properties of materials, deteriorate filters, refrigeration coils, blowers and motors. Contact nVent Equipment Protection for special recommendations. DANGER Danger: explosion hazard - do not energize, disconnect, or troubleshoot equipment unless power has been switched off or the area is known to be non-hazardous. -
Page 28: Maintenance
The drain trap can be cleaned by pouring soapy water into the face of the evaporator coil. An alternate method is to remove the panel underneath the condenser coil, locate the drain trap above the condensate evaporator pan, and blow compressed air through the tube. © 2022 nVent 89215757 - 28 -... -
Page 29: Condenser And Evaporator Air Movers
Communiquer avec nVent Equipment Protection pour connaître les recommandations spéciales. REFRIGERANT LOSS Each air conditioner is thoroughly tested prior to leaving the factory to insure against refrigeration leaks. Shipping damage or microscopic leaks not found with sensitive electronic refrigerant leak detection equipment during manufacture may require repair or recharging of the system. -
Page 30: Unit Characteristics
22-31 NHZ280416GXXX 80-100 7.9-9.9 17-26 25-31 65-80 4.7-5.8 14-23 21-32 NHZ280426GXXX 80-100 4.8-6.3 17-28 26-38 65-80 3.2/4.5 14-22 19-29 NHZ280425GXXX 80-100 3.5/5.2 16-26 23-35 65-80 2.4-2.9 14-23 21-32 NHZ280446GXXX 80-100 2.4-3.2 17-28 26-38 © 2022 nVent 89215757 - 30 -... -
Page 31: Service Data
If the compressor is replaced, the standard overload (included with the compressor) must be discarded and not used. An encapsulated overload must be mounted and wired identical to the original. © 2022 nVent 89215757 - 31 -... -
Page 32: Nhz280416Gxxx Pressure Tables
NHZ280416GXXX PRESSURE TABLES L = Suction (±5PSIG); H=Head (-10/+20PSIG) NHZ280416GXXX 50hz Enclosure Temperature (°F) °F L = Suction (±5PSIG); H=Head (-10/+20PSIG) NHZ280416GXXX 60hz Enclosure Temperature (°F) °F © 2022 nVent 89215757 - 32 -... -
Page 33: Nhz280426Gxxx Pressure Tables
Factory Charge 283 Grams 312 Grams Füllmenge durch Hersteller 283 Gramm 312 Gramm Opłata Fabryczna 283 Gramów 312 Gramów Equivalent 0.40 Tons 0.45 Tons Equivalent 0,40 Tonnen 0,45 Tonnen Ekwilalent 0,40 Tony 0,45 Tony © 2022 nVent 89215757 - 33 -... -
Page 34: Trouble Shooting
» Unit still in Recycle Time Delay mode » Enclosure temperature below cooling Wait and/or heat enclosure thermistor T1 setpoint temperature 6. The compressor and the condenser (Ambient or “HOT” air) impeller(s) should turn on. Is there adequate airflow? © 2022 nVent 89215757 - 34 -... -
Page 35: Symptoms And Possible Causes - Remote Access Control Version
Unit blows breakers Short in system Drain plugged Drain tube kinked Getting water in enclosure Enclosure not sealed (allowing humidity in) Mounting gasket damaged For additional technical support, contact nVent Equipment Protection at 800-896-2665. © 2022 nVent 89215757 - 35 -... - Page 36 Rev. A © 2022 nVent 89215757 P/N 89215757...
