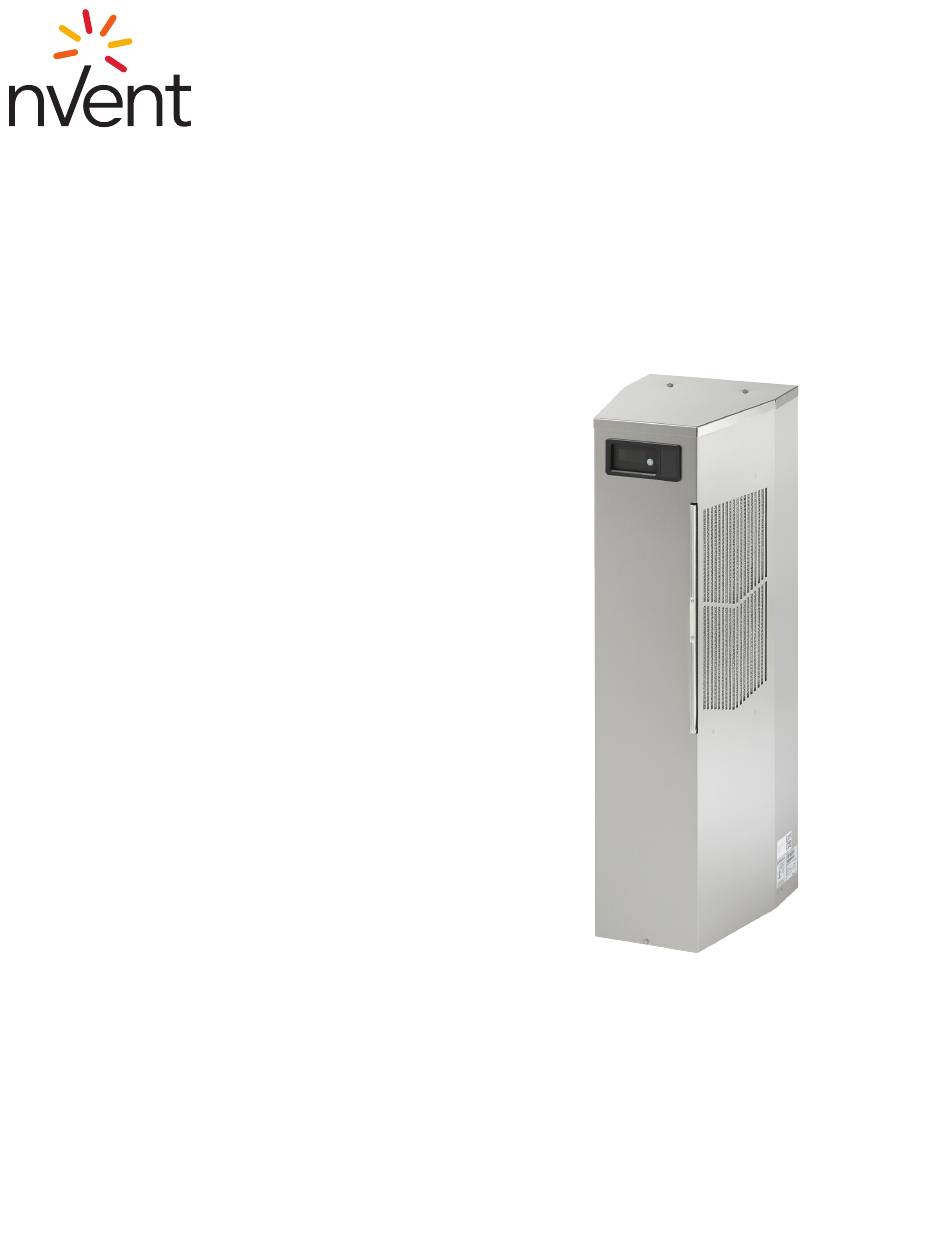

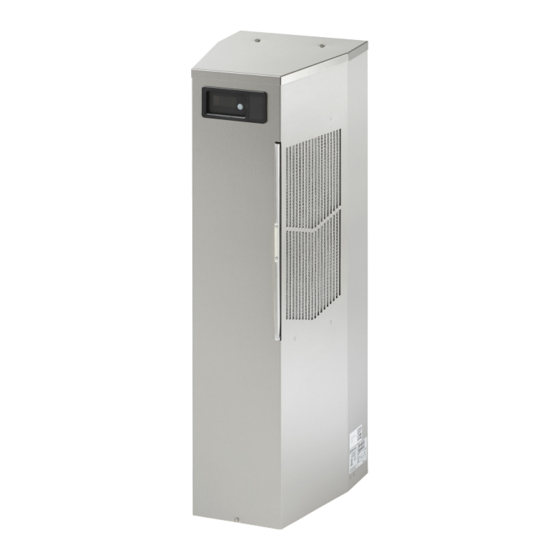

SPECTRACOOL
Air Conditioner, HAzArdous LoCAtions
nHz36 ModeL
INSTRUCTION MANUAL
Rev. A
© 2022 nVent
89215759
P/N 89215759
