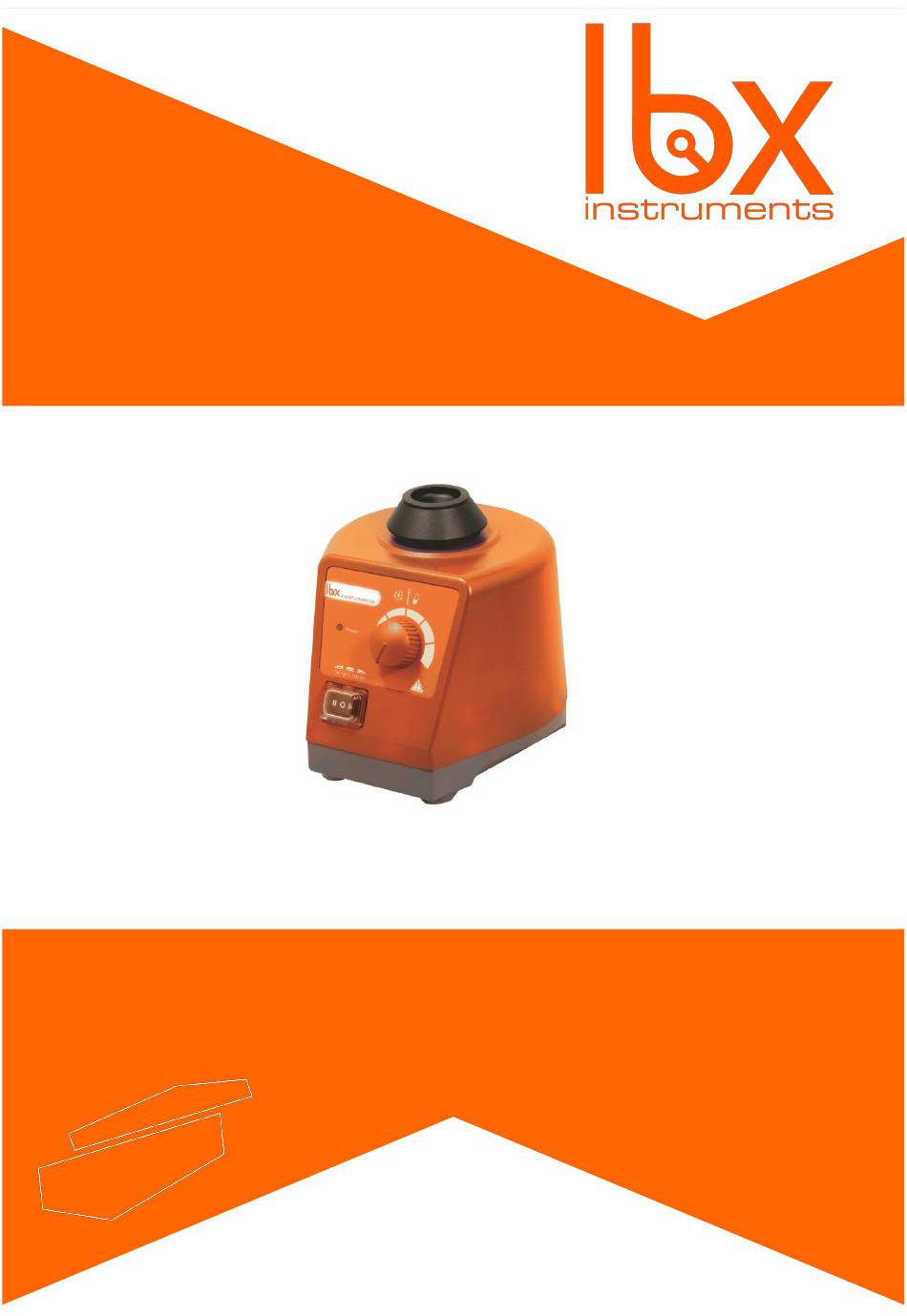

- Page 1 V05 Adjustable Speed Vortex Please read the User Manual carefully before use, and follow all operating and safety instructions! user manual english...
-
Page 2: Warranty
User Manual V05 Adjustable Speed Vortex Preface Users should read this manual carefully, follow the instructions and procedures, and beware of all the cautions. Service In order to guarantee this equipment Works safely and efficiently, it must have a regular maintenance. In case of any faults, do not try to repair it yourself. -
Page 3: Safety Instructions
1. Safety Instructions Warning! • Read the operating instructions carefully before use. • Ensure that only trained staff works with the instrument. Protective ground contact! • Make sure that socket must be grounded (protective ground contact) before use. • Wear the personal safety items to avoid the risk from Splashing of liquids. -
Page 4: Trial Run
3.2 Listing of Items The package includes the following items: Items Main unit User Manual Table 1 4. Trial Run Figure 1 Note: Ensure that the two-direction switch must be in the middle (off state) before powering on. If these operations above are normal, the instrument is ready to operate following the “operation” chapter. If these operations are not normal, the instrument may be damaged. -
Page 5: Maintenance And Cleaning
5.1 Continuous operating Figure 3 • Place speed control knob at the lowest position. Put the instrument on a stable and safe place and plug in the main power. • Push the two-direction switch left to ON and power LED is lit. •... -
Page 6: Associated Standards And Regulations
• For materials which are not listed, please request information from manufacturer/supplier. • Before using other method for cleaning or decontamination, the user must ascertain with the manufacturer/supplier whether this method will not harm the instrument. • Wear the proper protective gloves during cleaning of the instrument. Note: •... -
Page 7: Specifications
8. Specifications Items Specifications Voltage [VAC] 220-230 / 110-120 Frequency [Hz] 50, 60 Power [W] Shaking movement orbital Orbital diameter [mm] Motor type Shaded-pole motor Motor rating input [W] Motor rating output [W] Speed range [rpm] 0-2500 Speed display Scale Run type Continuous/touch operation Dimensions (mm) - Page 8 9. Accessories Please get in touch with our company to order the following accessories available for these devices: Cat. No Descriptions VORX-A03-001 Standard top, for <Ø30mm tubes and small vessels Tube holding rod, used with VORX-A06-001 tube adapters VORX-A04-001 Universal top, 100mm plate Tube adapter, for 48 holes test tubes, Ø6mm, used with MIXS-A41-001...
- Page 9 Changing attachment: Figure 5 10. Applications V05 series Attachments (0-2500rpm) Touch mode Continuous mode (High speed area) (Low speed area) VORX-A03-001 VORX-A06-001 + MIXS-A41-001 VORX-A06-001 + MIXS-A51-001 VORX-A06-001 + MIXS-A61-001 VORX-A06-001 + MIXS-A71-001 VORX-A06-001 + MIXS-A81-001 VORX-A04-001 + VORX-A05-001 VORX-A04-001 + MIXS-A41-001...
- Page 11 www.labbox.com...
