WB01 Thermostatic Water Bath
Please read the User Manual carefully before use, and follow all operating and safety instructions!
user manual
english

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WB01 and is the answer not in the manual?

Questions and answers

Related Manuals for Ibx WB01

Summary of Contents for Ibx WB01

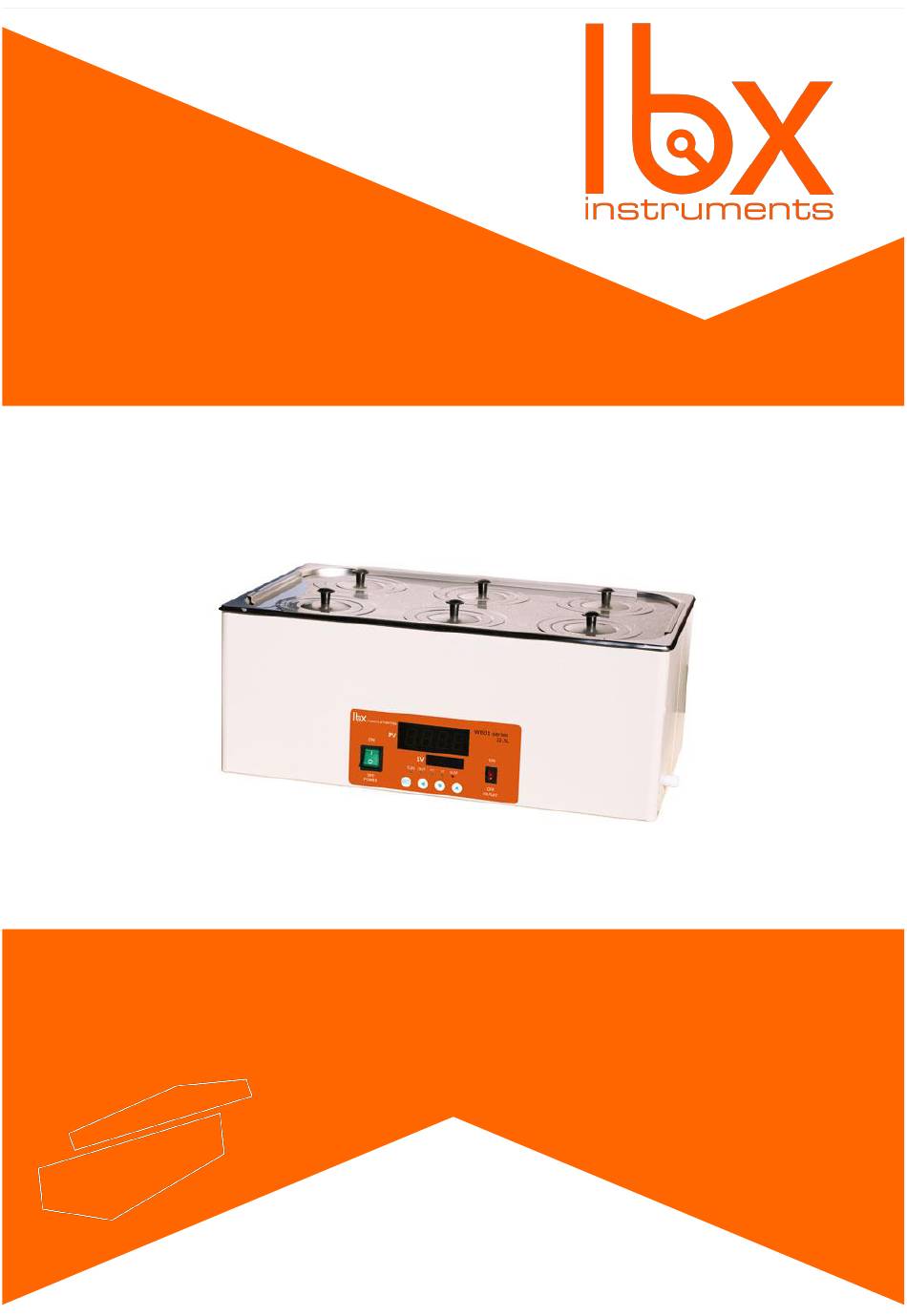

  • Page 1 WB01 Thermostatic Water Bath Please read the User Manual carefully before use, and follow all operating and safety instructions! user manual english...

  • Page 2: Warranty

    User Manual WB01 Thermostatic Water Bath Preface Users should read this manual carefully, follow the instructions and procedures, and beware of all the cautions when using this instrument. Service In order to guarantee this equipment works safely and efficiently, it must receive regular maintenance. In case of any faults, do not try to repair it yourself.

  • Page 3: Structural Features

    Introduction This thermostatic bath WB01 is suitable for distillation, concentration, drying, and thermostatic heating in medical units, universities, colleges, scientific research facilities, and laboratories in industrial and mining enterprises, such as chemical, printing and dyeing, and pharmaceutical companies. Structural Features 1.

  • Page 4: Temperature Controller Operation

    Temperature Controller Operation The Function of Indicator Lights: 1) 【RUN】: The light is on during operation and off at the end of the run. 2) 【OUT】：The light is on when there is heating output. 3) 【AT】：During auto-tuning, the light flashes. 4) 【ST】：When timing starts, this light is on.
  • Page 5 1.4. In the event of an over-temperature alarm, the buzzer beeps continuously, the “ALM” warning light is illuminated, and the heat-out is cut off. For an under-temperature alarm, the buzzer beeps continuously, and the “ALM” warning light flashes. If the over-temperature alarm is triggered by a change in the temperature setting value, the “ALM”...
  • Page 6 Parameter Table 1 (Setting Range) Name Function Instructions Factory Set Value Password Key When Lc=3, enter the next parameters. Over- If “SV>(SP+ALH)”, the “ALM” light turns on, the buzzer (0～100.0 ºC) temperature sounds, and the heating output turns off. Alarm Under- If “SV<(SP-ALL)”, the “ALM”...
  • Page 7 Parameter Table 2 (Setting Range) Name Function Instructions Factory Set Value Password Key When Lc=9, enter the next parameters. 0: Over-temperature alarm only. Temperature 1: Over-temperature alarm and under-temperature (0～1) 0 Alarm Mode alarms simultaneously. 0: PID control. Control Mode (0～1) 0 1: ON/OFF control.

  • Page 8: Operation

    Parameter Table 3 (Setting Range) Name Function Instructions Factory Set Value Password Key When Lc=27, enter the next parameters. Temperature 0: Centigrade. (0～1) 0 Unit 1: Fahrenheit. Parameter Table 4 (Setting Range) Name Function Instructions Factory Set Value Password Key When Lc=567, enter the next parameters.

  • Page 9: Fault Analysis

    Fault Analysis Failure Possible cause Troubleshooting No power supply 1. Bad contact between plug and 1. Replace the plug or socket tube. socket. 2. Replace the fuse with one with the same 2. The fuse is burnt. specifications. No temperature rise 1.
  • Page 11 www.labbox.com...
