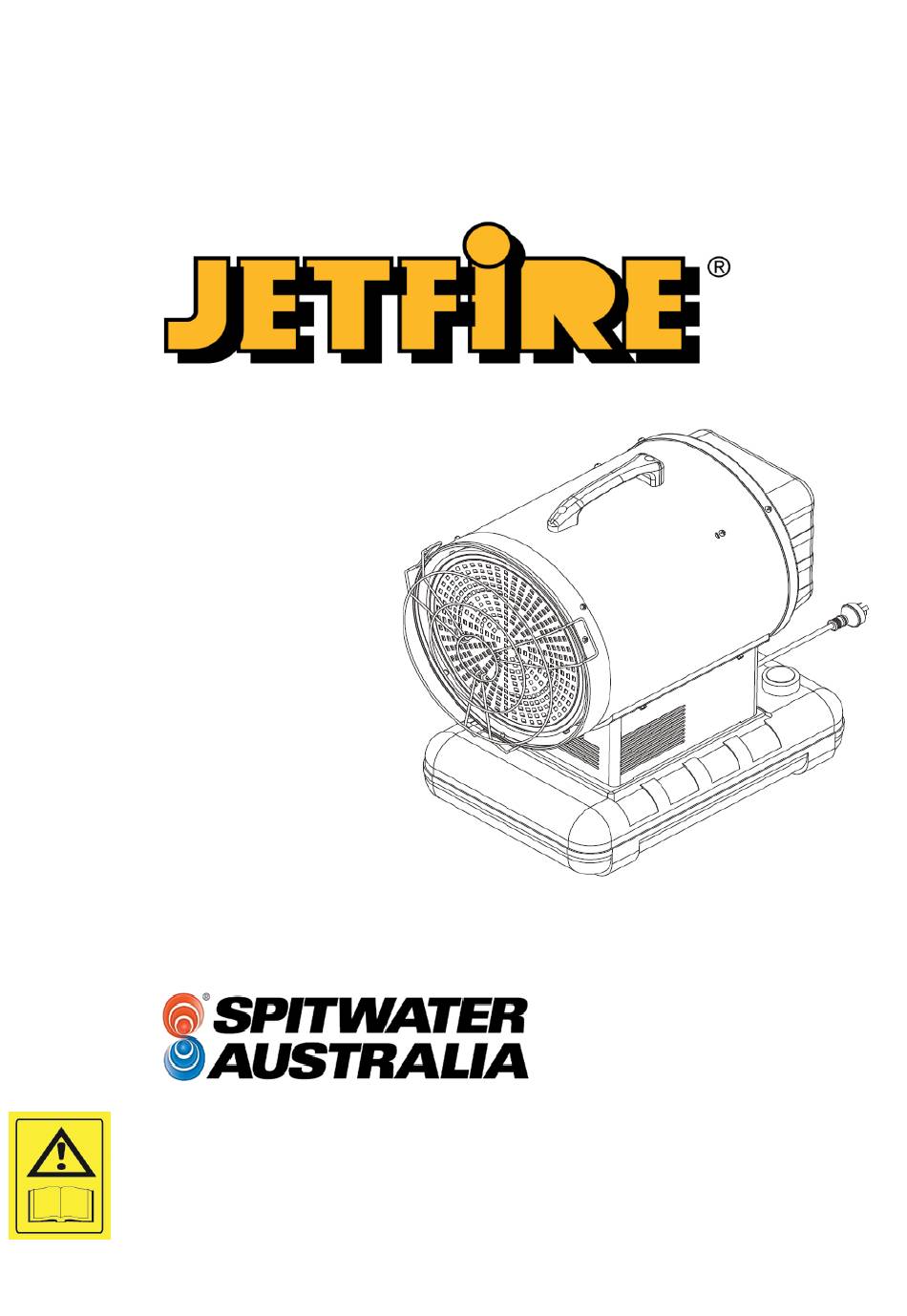

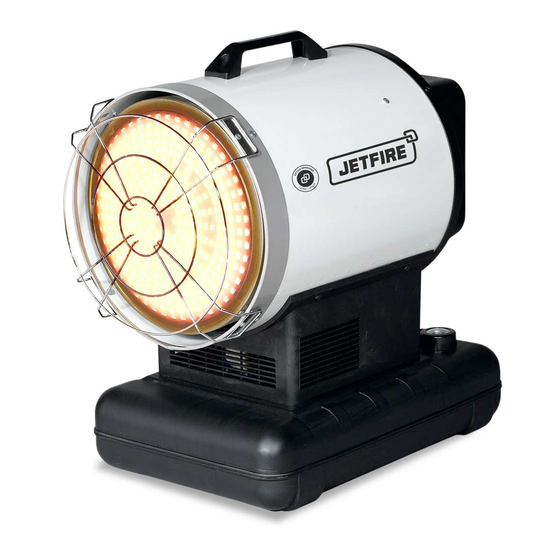

OPERATING AND MAINTENANCE
DI16
DIESEL / KEROSENE
FIRED HEATER
Made in
Korea for:
WARNING: Read and understand this instruction manual before operating this unit.
Retain this instruction booklet for future reference.
Failure to follow operating, safety and maintenance instructions outlined in this
manual releases the manufacturer from any responsibility for any accidents or
damages incurred and may render any warranty void
ORIGINAL INSTRUCTIONS
MANUAL
Spitwater Australia pty Ltd
953 Metry St
North Albury, NSW
Australia

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JETFIRE DI16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spitwater JETFIRE DI16

  • Page 1 OPERATING AND MAINTENANCE MANUAL DI16 DIESEL / KEROSENE FIRED HEATER Made in Spitwater Australia pty Ltd Korea for: 953 Metry St North Albury, NSW Australia WARNING: Read and understand this instruction manual before operating this unit. Retain this instruction booklet for future reference.
  • Page 2: Technical Data

    TECHNICAL DATA PRODUCT HEATER MODEL DI16 UNIT PERFORMANCE HEAT OUTPUT 16.5 PUMP PRESSURE 8.83 FUEL CONSUMPTION 1.37 Kg/H MINIMUM ROOM VOLUME FUEL FUEL SUPPLY DIESEL & KEROSENE ONLY FUEL TANK CAPACITY ELECTRICAL ELECTRICAL SUPPLY 230/1/50 V/~/Hz CONNECTED LOAD DIMENSION & WEIGHT LENGTH WIDTH HEIGHT...
  • Page 3: Spare Parts And Accessories

    SPARE PARTS AND ACCESSORIES Spitwater has an extensive range of spare parts and accessories to suit all your heating needs. For spare parts and service please contact 1800 SPITWATER To view our extensive range of industrial heaters visit www.spitwater.com.au The following symbols are used throughout this instruction booklet in order to mark important paragraphs or sections that are due particular attention.
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS WARNING: This heater shall only be used by persons instructed in its use that have been been expressly authorized to do so. Before using this heater please pay particular attention to the following safety warnings as failure to do so could result in serious injury. GENERAL WARNING Make sure you have read and understood the whole instruction manual before installing, operating or carrying out any maintenance on the unit.
  • Page 5: Electricity Supply

    2 WHILE USING THE HEATER - Read all instructions before using this heater take care to ensure you fully understand the instructions concerning electricity and fuel supply. - Know how to start and stop the unit. Be quite familiar with the controls. - Allow a minimum room size as listed in the technical specifications.
  • Page 6: Safety Devices

    SAFETY DEVICES Temperature Limit Control : This heater is equipped with a Temperature Limit Control designed to turn off the heater should the internal temperature rise to an unsafe level. If this device activates and turns your heater off it may require service. (Internal Shut-Off Temperature - 212˚F/100˚C ±...
  • Page 7: Operating Elements

    OPERATING ELEMENTS Please see operating elements below to help familiarize yourself with the components of this unit.
  • Page 8 Figure A Figure B Figure G Figure H...
  • Page 9: Long Term Storage

    ASSEMBLY, INSTALLATION AND OPERATING INSTRUCTIONS ASSEMBLY Take the heater out of the box and remove the handle from heater. (Figure A) Remove the pre-assembled screws on the shell. Align the holes in the shell with two mounting holes on the handle as shown in Figure B. Secure handle with screws with removed.
  • Page 10: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS AND TROUBLESHOOTING MAINTENANCE INSTRUCTIONS To maintain this unit in peak working condition during its operating life it is necessary to carry out regular maintenance operations and replace worn or broken parts immediately upon their failure. We strongly advise that all maintenance is carried out by an authorized JETFIRE agent using original spare parts.
  • Page 11: Maintenance Summary

    MAINTENANCE SUMMARY The table below shows the regular maintenance required for your heater, the maintenance interval and which maintenance can be done by the owner. Interval Maintenance Required Done By Every 200 Hrs Wash the pump filter in kerosene or diesel. Owner Every 200 Hrs Check that all fuel lines are tight and in good condition.
  • Page 12 Heater does not turn on and Temperature limit Control device is- Turn operating switch to "OFF" and- the lamp is not light. overheated. allow to cool(about 10 min.) No electrical power. Ensure heater cord & extension cord- are plugged in & check power supply. Blown fuse.
