Summary of Contents for Kärcher DE 4002

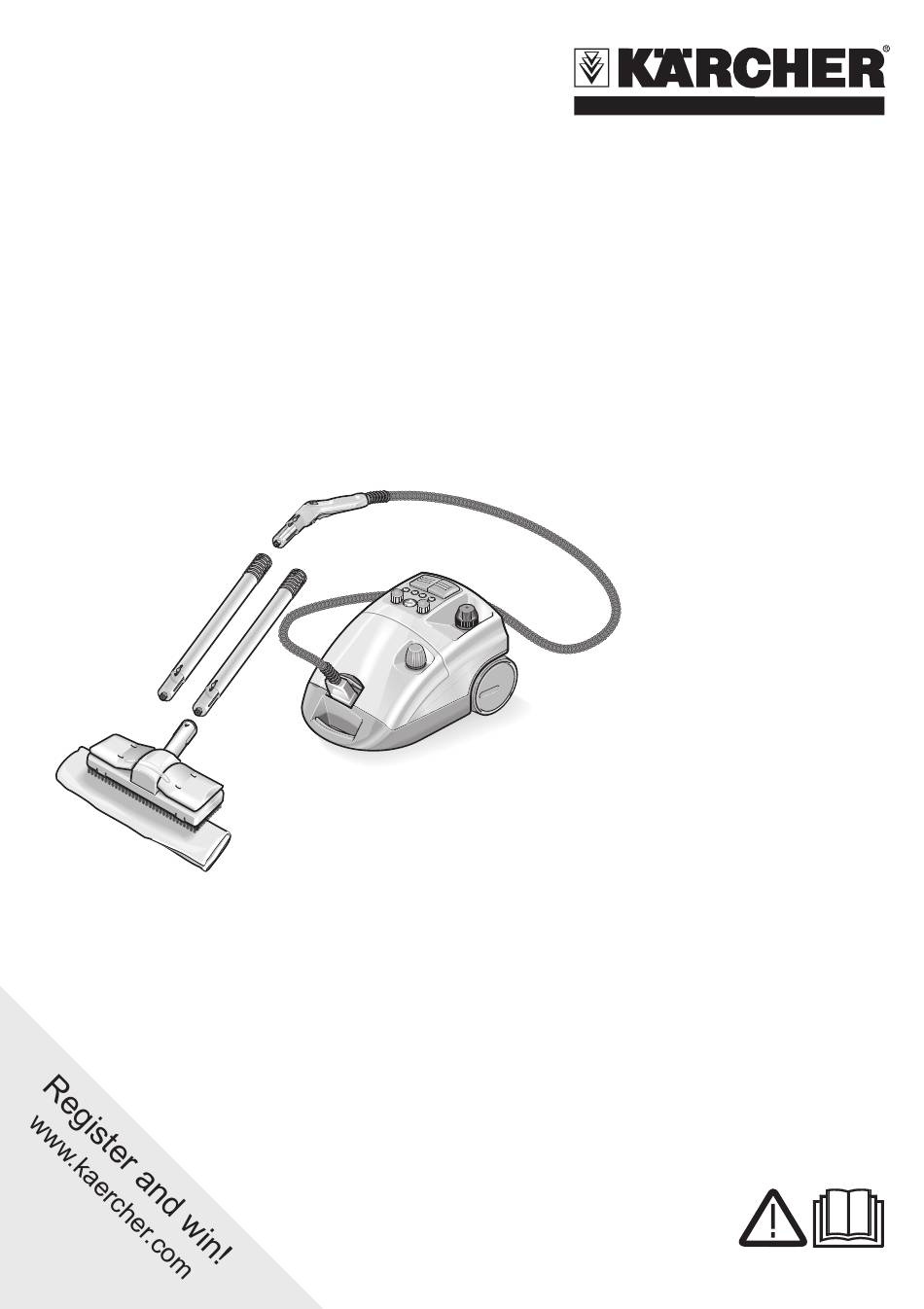

- Page 1 DE 4002 Deutsch English Français Italiano Nederlands Español Português Dansk Norsk Svenska Suomi Ελληνικά Türkçe Русский Magyar Čeština Slovenščina Polski Româneşte Slovenčina Hrvatski Srpski Български 59591550 01/10...
- Page 2 Please read and comply with Environmental protection these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- The packaging material can be ers. recycled. Please do not throw Before first start-up it is definitely nec- –...
- Page 3 Safety Devices Notes on the operation Safety devices serve for the protection of Cleaning of Textiles the user and must not be put out of opera- Prior to treatment with the steam cleaner, tion or bypassed with respect to their func- always check the reaction of the textiles in tion.
- Page 4 Device elements 1 Steam gun 9 Temperature display 2 Handwheel for steam quantity controller 10 Rotary knob for steam quantity control- 3 Unlocking button 11 Indicator lamp - Descaling (white) 4 Lock (child-proof lock) 12 Indicator lamp "water shortage addi- 5 Steam switch tional tank"...
- Page 5 16 Indicator lamp - water shortage steam Note boiler (red) The boiler can be filled up to 2 cm below 17 Safety lock the edge of the filler neck if the appliance is 18 Container closure in horizontal position. 19 Funnel inlet Warning 20 Extension tubes (two tubes) Do not use detergent.
- Page 6 Actuate the steam switch, steam will es- steam jet, the higher the rinsing effect. cape. Always direct the steam gun at a If you turn the rotary knob toward “+” separate piece of cloth until the steam steam quantity, a hot water jet is is emitted evenly.
- Page 7 Turning Off the Appliance Floor nozzle Switch the appliance off at the switches. Suited for all washable wall and floor – coverings, e.g. stone floors, tiles and Lift the cover of the appliance connector PVC floors. Work slowly on very dirty and disconnect the steam plug from the surfaces to allow the steam to act on the appliance.
- Page 8 Push the switch for steam ironing to the Reset wallpaper remover without – front: Steam will escape continuously. switching off. Lift the soaked piece of wallpaper using a flat trowel, and pull it Push the switch for steam ironing to the –...
- Page 9 Fill the descaling solution into the boiler Maintenance and care and allow to react for approximately 8 hours. Danger Danger Always disconnect the mains plug and al- low the steam cleaner to cool down before Do not screw the steam boiler safety cap on performing any maintenance work.
- Page 10 CE declaration Indicator lamp "water shortage" glows red We hereby declare that the machine de- Refill water. scribed below complies with the relevant basic safety and health requirements of the Indicator lamp "Descaling" glows EU Directives, both in its basic design and white construction as well as in the version put Decalcify appliance.
- Page 11 Technical specifications Electrical connection Current type Frequency 50/60 Voltage 230-240 Voltage in the handle Mains cable Order no. EU 6.647-757.0 CDN 6.647-791.0 CH 6.647-832.0 GB 6.647-831.0 AUS 6.647-833.0 CSA-CDN 6.647- 920.0 BR 6.647-850.0 Performance data Heating output 2250 1450 Pump Max.
- Page 14 AE Karcher FZE, P.O. Box 17416, Jebel Ali Free Zone (South), Kärcher Limited (Ireland), 12 Willow Business Park, Nangor Dubai, United Arab Emirates, Road, Dublin 12, +971 4 886-1177, www.kaercher.com (01) 409 7777, www.kaercher.ie AT Alfred Kärcher Ges.m.b.H., Lichtblaustraße 7, 1220 Wien, Kärcher (Japan) Co., Ltd., Irene Kärcher Building, No.
