Figure 5. Overfill Alarm Ground Wire Termination; Table 1. Console Connections - Veeder-Root Overfill Alarm Installation Manual

Wiring Instructions
Star Washer
(against enclosure)
Input
Overfill Alarm terminal 2
Line (from power panel)
Ack Switch terminal 1
Ack Switch terminal 5 (line)
Ground Wire
KEPS Nut

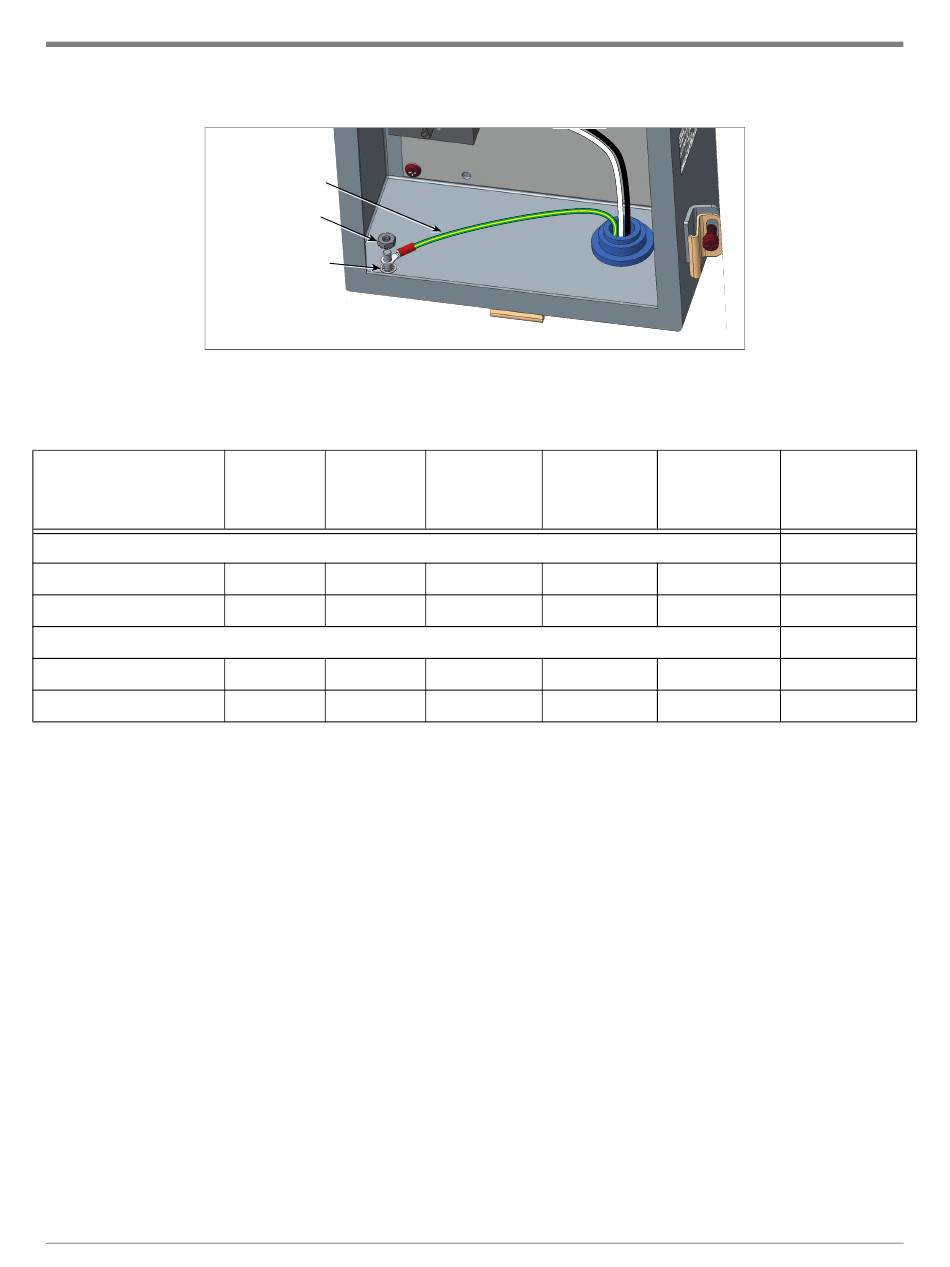

Figure 5. Overfill Alarm Ground Wire Termination

Table 1. Console Connections

TLS2 or TLS- TLS-50 or
IB TLS-HLD
Connection Connection
Overfill Alarm without Acknowledge Switch (see Figure 4)
J6, 1 J5, 1
J6, 2 J5, 2
Overfill Alarm with Acknowledge Switch (see Figure 3)
J6, 1 J5, 1
J6, 2 J5, 2
TLS-350
TLS-300
I/O Combo
Output Relay Relay
Connection Connection
NO NO
C C
NO NO
C C
8
Enclosure Grounding
TLS-350
4 Relay Output TLS-4XX
Module
Overfill Alarm
Connection Relay Connector
NO NO
C C
NO NO
C C
