- Page 1 Manual No: 577014-060 Revision B TLS4/8601 Series ATG Alarms Troubleshooting Guide...
- Page 2 Notice Veeder-Root makes no warranty of any kind with regard to this publication, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Veeder-Root shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this publication.
-
Page 3: Table Of Contents
Table of Contents TLS4/8601 Series ATG GUI Alarm Report Screen ....................1 TLS4/8601 Series ATG Parts Identification ........................2 Displayed Alarm Messages ............................3 Figures Figure 1. Alarm Report Screen ........................1 Figure 2. Front Cover Components ........................2... -
Page 4: Tls4/8601 Series Atg Gui Alarm Report Screen
TLS4/8601 Series ATG GUI Alarm Report Screen TLS4/8601 Series ATG GUI Alarm Report Screen The Active Alarm screen is the primary alarm report location and shows all active and unacknowledged TLS alarms and warnings. You access this Active Alarm screen from the Home screen by touching the Status Bar at the top of the screen. -
Page 5: Tls4/8601 Series Atg Parts Identification

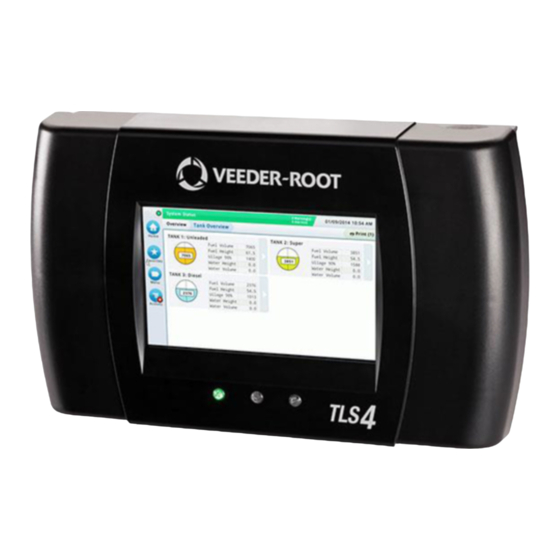

TLS4/8601 Series ATG Parts Identification TLS4/8601 Series ATG Parts Identification The following figure identifies the components on the front of the TLS4/8601 Series ATG. ALARM RESET SYSTEM STATUS 0 Warning(s) 01/01/2014 06:01 PM 0 Alarms(s) Overview Tank Overview Print (0) -
Page 6: Displayed Alarm Messages
Displayed Alarm Messages Displayed Alarm Messages A complete list of displayed TLS4 console alarm messages and a possible cause/action for the alarms are listed in the tables below. Actual alarms displayed by a particular system depend upon the options installed. Short Device Message Cause... - Page 7 Displayed Alarm Messages Short Device Message Cause Action High Liquid Alarm Dispenser Pan/Containment Sump Immediately follow the alarm reporting pro- Sensors cedures established for your site. Liquid reached 8" (203mm)on the dispenser pan sensor or 10" (254mm) on the containment sump sensor.
- Page 8 Overfill Alarm Fuel level has exceeded a programmed limit. Stop delivery. Check for spillage. Potential overflow of tank may occur. Printer Out Of Paper System Paper roll is empty. Replace the paper roll with Veeder-Root part number 514100-456 only.
- Page 9 Displayed Alarm Messages Short Device Message Cause Action Periodic Test Fail Alarm 0.2 gph (0.76 lph) test failure. Dispensing halts, if Consult PLLD Alarm Quick Help Guide and programmed to do so. PLLD diagnostic screens. Periodic Test Needed Q, T A periodic in-tank leak (0.2 gph [0.76 lph]) test Schedule a 0.2 gph (0.76 lph) test.
