SMOKE ALARM USER MANUAL
MODEL NUMBER: EP-RANG-RF-10
Thank you for choosing Emerald Alarms.
This leaflet contains important information on the correct
installation and operation of your smoke alarm.
Please read all the information before commencing
installation and retain for future reference.
This unit has been designed to meet the latest
safety standards demanded in Australia and
complies with the requirements of AS3786:2014.
POWER:
OPERATION CURRENT:
BATTERY LIFETIME:
ALARM VOLUME:
ALARM SENSITIVITY:
HUSH/SILENCE TIME:
INTERCONNECTION:
COMPLY WITH:
SOUND PATTERN:
WIRELESS INTERCONNECTION
ALARM SOUND PATTERN:
DESCRIPTION

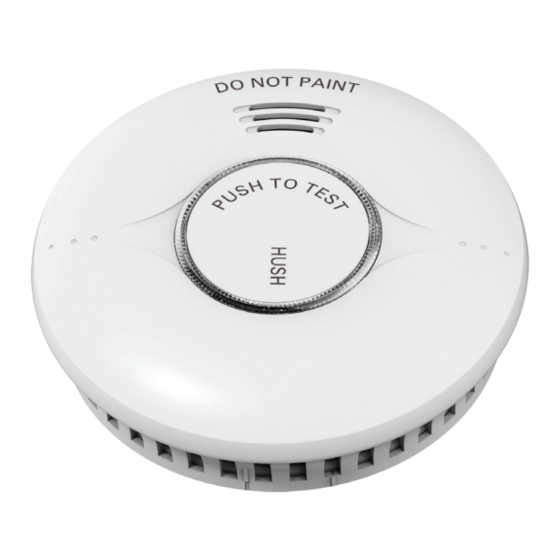

The unit is a photoelectric smoke alarm device. It is particularly sensitive for detecting visible
micro-particles (associated with smoldering fires) and reacts faster than ionization alarms.
An example of such smoldering fires is a cigarette burning in a couch or bedding, a common cause
of devastating blazes.
Please note this device does not detect flames, heat, carbon monoxide or other hazardous gases.
It has many advanced features and an extended operational life with the included battery.
built-in DC3V (CR17450) 10 years Lithium battery (non-replaceable battery)
<8uA (standby) <60mA (alarm)
10 years
85dB (A) at 3 meters
0.1-0.16dB/m
approx. 8 minutes
up to 40 smoke alarm/s, wireless
AS3786: 2014
ISO8201 (Bl 0.5s - pause 0.5s - Bl 0.5s - pause 0.5s - Bl 0.5s - pause 1.5s,
with the red LED flash, repeat this alarm pattern
Bl - Bl - pause 0.5s, Bl - Bl - pause 0.5s, Bl - Bl - pause 1.5s,
without the red LED flash, repeat this alarm pattern
Advertisement
Related Manuals for emerald alarms EP-RANG-RF-10
Summary of Contents for emerald alarms EP-RANG-RF-10
- Page 1 SMOKE ALARM USER MANUAL MODEL NUMBER: EP-RANG-RF-10 Thank you for choosing Emerald Alarms. This leaflet contains important information on the correct installation and operation of your smoke alarm. Please read all the information before commencing installation and retain for future reference.
- Page 2 ASSEMBLY AND ACTIVATION TYPICAL SINGLE-STORY HOME For maximum protection, a smoke alarm should be installed on the Assemble and secure the smoke alarm to the ceiling or wall using the ceiling of each bedroom, living area, and hallway. Where a hallway is supplied screws and mounting plate.
- Page 3 WIRELESS INTERCONNECTING FUNCTION OPERATION AND TESTING For the best results we advise you first choose the central smoke alarm Smoke alarms are an important safety device in the home. It is import- and then connect other smoke alarms to your central smoke alarm. ant to check them regularly to ensure they are operating correctly.
- Page 4 This warranty does not cover damage resulting from accident, misuse or abuse or lack of reasonable care of the product. In no case shall Emerald Alarms Pty Ltd be liable for any incidental or consequential damages for breach of this or any other warranty express or implied whatsoever.
