Kodak EKTAR H35 Quick Start Manual

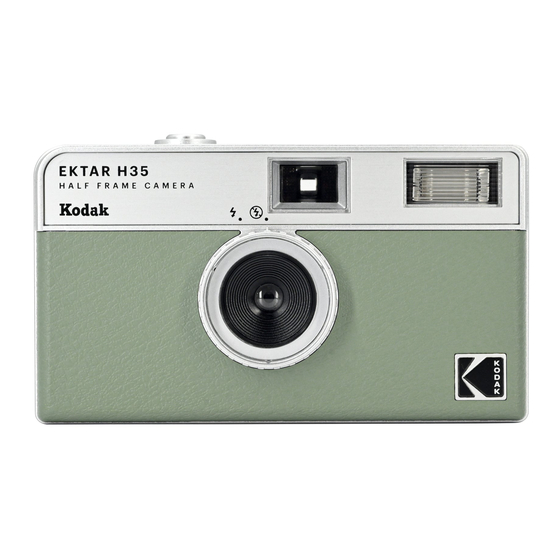

KODAK EKTAR H35
Half Frame Film Camera
Quick Start
Guide
Please read this Guide carefully before using and
keep it with you for future reference.
G ET TI N G STARTED
1. Camera Back
2. Back Lock
3. Film Cassette Chamber
4. Film Rewind Shaft
5. Flash
6. Film Advance Wheel
7. Film Sprocket Wheel
8. Film Take-up Spool
9. Shutter Release Button
10. Film Counter
11. Viewfinder Eyepiece
12. Flash On/O Wheel
13. Flash Ready Light
14. Film Rewind Button
15. Film Rewind Crank
16. Battery Compartment Cover
17. Lens
18. Camera Starp Holder
10 5
9
2
17
12
18
11
13
1
8
6
16

Loading Film

1. Open the Camera Back (1) by releasing the Back Lock (2).
2. Place the film cassette into the Film Cassette Chamber (3),
ensuring that the hollow end of the film is inserted into the
Film Rewind Shaft (4).
3. When the cassette seats properly in place, draw out and
insert the leader of the film into the Film Take-up Spool (8).
4. Press the Shutter Release Button (9) once and roll the
Film Advance Wheel (6).
5. Make sure the film perforations are engaged with the teeth
of the Film Sprocket Wheel (7).
6. Close the Camera Back (1) after the film is loaded correctly.
7. Press the Shutter Release Button (9) once.
Repeat the steps until the Film Counter (10) displays "1".
The Film Counter (10) indicates the number of exposures
of the film roll at the moment.
7
3
14
4
15
