INSTALLATION AND MAINTENANCE MANUAL

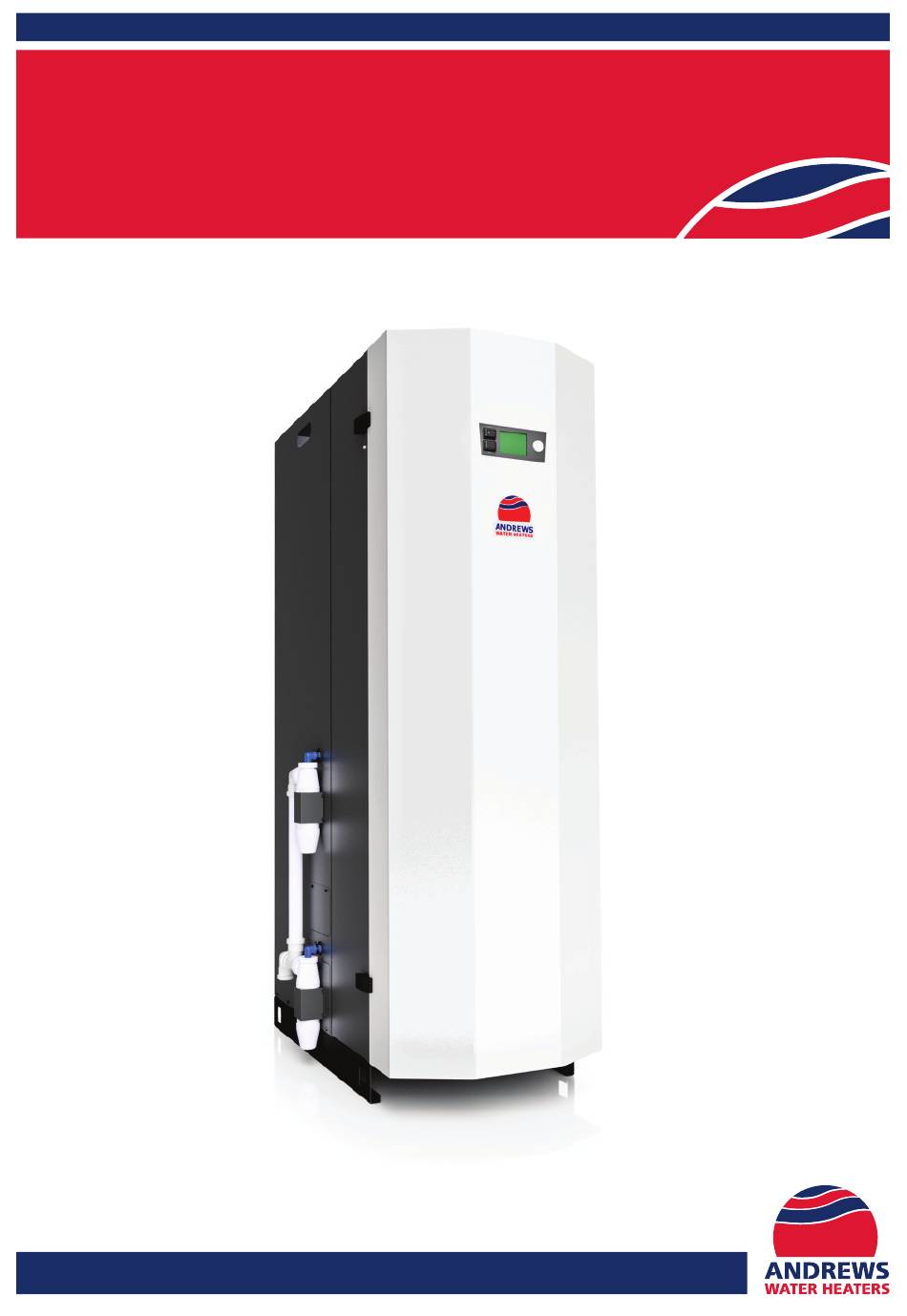

MAXXfl o EVO
High effi ciency condensing stainless steel storage water heater
CWH 150/302
Please read and understand these instructions before commencing installation and leave this manual with the customer for future reference.
Andrews. Built to perform.
M10419
