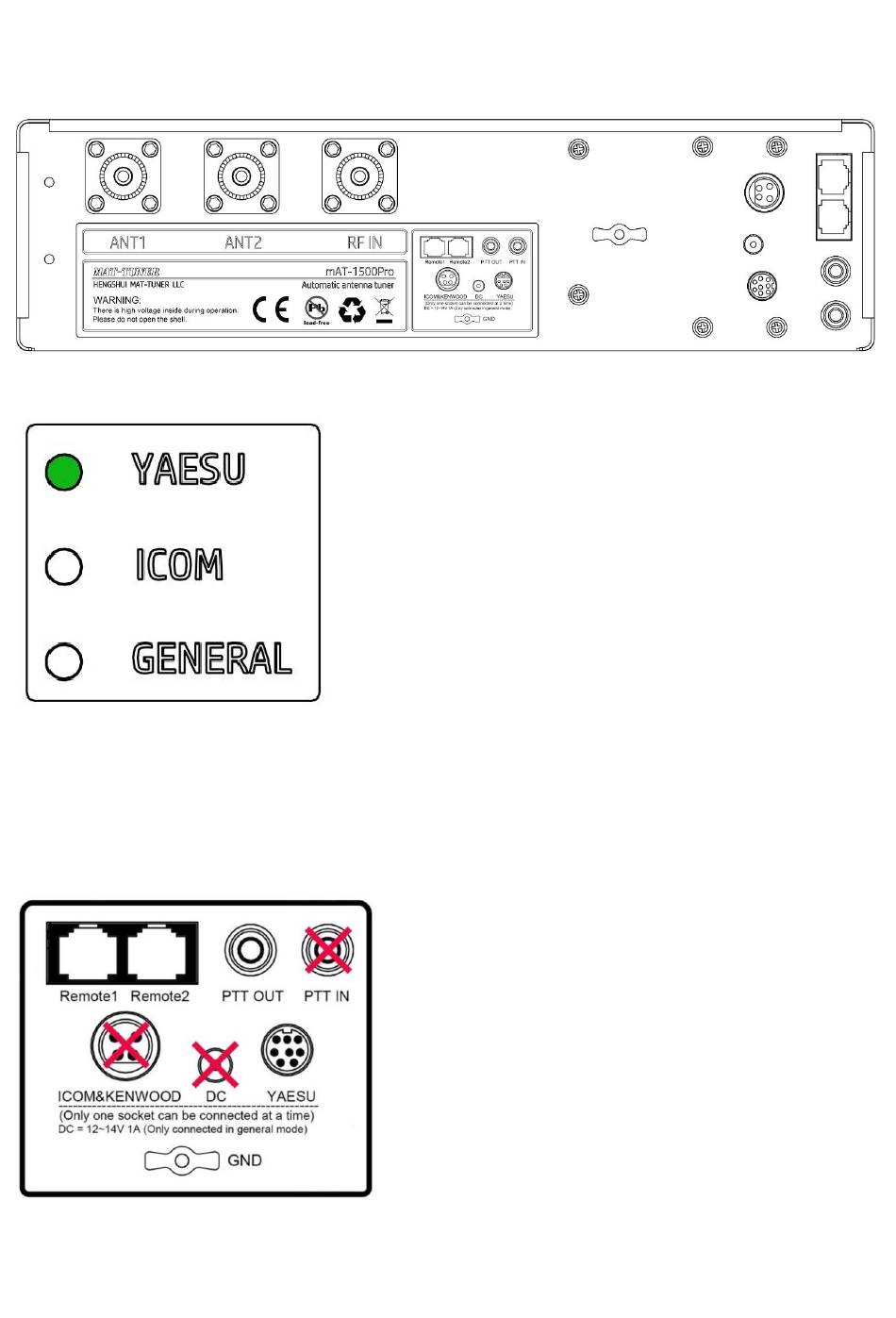

Rear: There are 3 sockets(SO-239) -"ANT1", "ANT2" and "RF IN"- on the left to connect Antenna
1, Antenna 2 and amplifier or transmitters. You could find the uses of all the other terminals on
the right from the label.

CONTROL CABLE CONNECTION FOR THREE WORKING MODES

1. YAESU mode

(1) Use the mAT-CY control cable (optional, not standard accessory) to connect the "YAESU"
control socket on the rear panel with the "TUNER" socket of the Yaesu transmitter. When the
transmitter is turned on, the tuner will automatically set to this mode. And the wiring of the rear
panel is shown in the following figure. The transmitter uses this cable to control and supply power
to the tuner.
The tuner has three working modes: YAESU mode, ICOM&
KENWOOD mode, and GENERAL mode. Users could
accomlish one-button operation on the transmitter for
maximum automation whlie using the first two modes.
Display of the current working mode:
The light will turn green when the corresponding mode is
on.
(2)
If there is a cable connection between your
transmitter and amplifier, please confirm whether this
cable contains PTT signal. Usually, this signal is in the
first core of the transmitter "LINEAR" socket, or a
control cable with two sections of RCA lotus plug. If the
PTT signal is included, be sure to disconnect it.
(3) Use an RCA control cable to connect the "PTT
OUT" socket of the tuner with the PTT IN socket of the
amplifier. Please read the operation manual of the
amplifier to determine this socket. This RCA control
cable comes with the tuner as a standard accessory.
