wheel axle

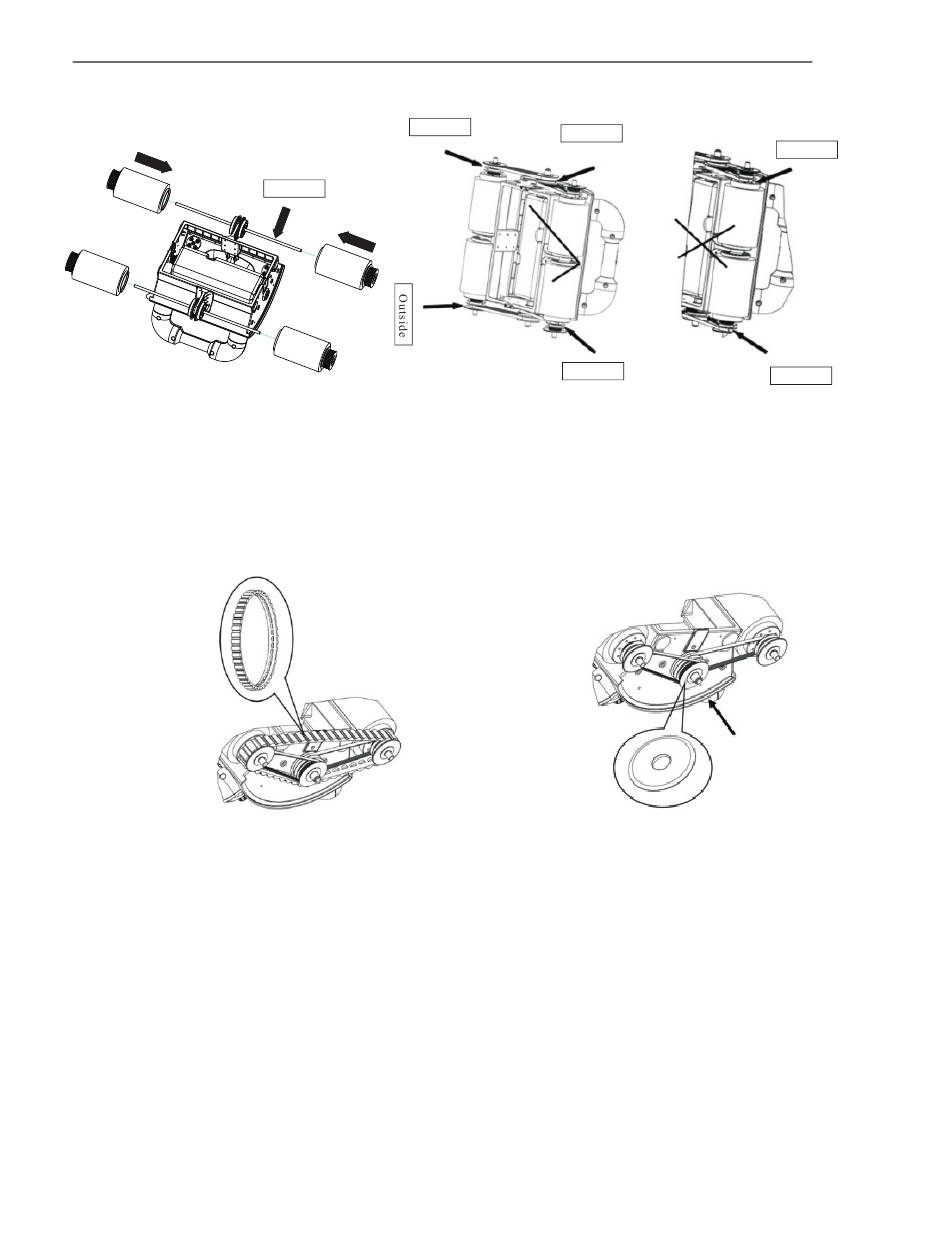

Step 7
※Assemble the Rolling Brush to the axle and put the new Synchronous Belt to
the Drive Wheel & Roller Wheel (Pic.5.2.7) to aeeemble the Synchronous Belt.
(Pic.5.2.8)
Step 8
※Assemble the Drive Belt on the
Roller Wheel (Pic.5.2.8)
All manuals and user guides at all-guides.com
Outside
(Pic.5.2.7)
-14-
Inside
Inside
(Pic.5.2.9)
Step 9
※Assemble Drive Wheel Baffle
Plate to the Drive Wheel (Pic.5.2.9)
Inside
Outside
