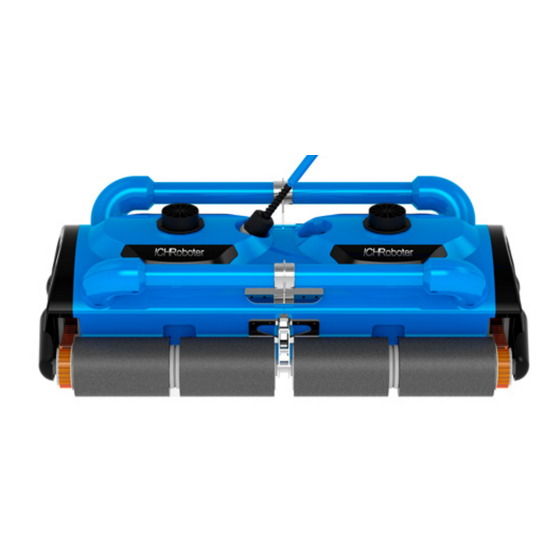

ICHRoboter iCleaner-200D User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

200D

Advertisement

Table of Contents
loading

Related Manuals for ICHRoboter iCleaner-200D

Summary of Contents for ICHRoboter iCleaner-200D

  • Page 1 200D...

  • Page 2: Safety Warnings

    The iCleaner-200D is designed for use in swimming pools only. Any other use is prohibited and will void manufacturers' warranty. Do not swim in the pool whilst the iCleaner-200D is in use in order to avoid personal injury. Do not allow the Power Box to come in contact with water, and it is recommended to be placed in a shady, dry and ventilated area.

  • Page 3: Product Overview

    Remote Control. When the Remote Control is not being used, the iCleaner-200D will return to automatic mode. ◇ Overall cleaning: the iCleaner-200D not only cleans the floor of your pool, it also cleans the wall, at the same time, the iCleaner-200D will filter water, and the dirt will be collected into Filter Bag.
  • Page 4 2.3 Parts List Main Body Parts Water Joint Guide Vane Drive Belt Water Retaning Board Base Plate Filter Net Base Plate Latch Support Frame Filter Bag Motor Box （Pic.2.3.2） - 3 -...
  • Page 5 ※ Power Box Parts - 4 -...

  • Page 6: Packing List

    3 Packing List Serial Quantity Remarks Part Name Number Unit Body Power Box Remote Control Battery Host Guide Vane User Manual Warranty Card Certificate of Quality Floating Cable Impeller Spare Parts Filter Bag （Pic.3.2.1） - 5 -...

  • Page 7: Product Operation

    4 Product Operation 4.1 Power Connection ※ Please connect the Floating Cable to the Cable Socket of Power Box (see Pic. 4.1.1), then connect the Power Box to an outside AC power of 100v/240v 50/60Hz (see Pic.4.1.2). For the complete connection guide please refer Pic.4.1.3 Notices: Do not allow the Power Box to come in contact with water.
  • Page 8 4.2 Start Up Procedure (1) When placing the iCleaner- 200D in the pool: you must wobble the iCleaner-200D according Pic.4.2.1 to make sure the air inside is released when you put the iCleaner- 200D in the water, So it will automatically sink to the bottom of pool.
  • Page 9 Latch on the Base Plate (Pic4.3.2) and remove the Filter Bag from Base Plate, clean the Filter Bag (Pic.4.3.3), once clean place the Filter Bag on its frame, reassemble the Base Plate and put it back into the iCleaner-200D once the Filter Bag is dry.
  • Page 10 (3) iCleaner-200D Storage: When the iCleaner-200D is dry,disconnect the floating cable reel it in hand-over-hand and place on the iCleaner-200D, then store the iCleaner-200D in a dry,well-ventilated area. If you have the Caddy , please put the iCleaner-200D & Floating Cable on to the Caddy Cart, details please refer Pic.4.3.4...
  • Page 11 4.5 Water Joint Step 1 ※ Insert water joint into iCleaner-200D. (Pic.4.5.1) Water Joint Step 2 ※ Screw down the Lock Nut clockwise. (Pic.4.5.2) （Pic.4.5.2） - 10 -...

  • Page 12: Maintenance

    Guide Vane Step 1: ※ R o t a t e G u i d e Va n e clockwise to remove from the iCleaner-200D.(Pic.5.1.1) Step 2 ※Use a Phillips head screw driver to remove the bolt in the Impeller according the diagram.(Pic.5.1.2)
  • Page 13 5.2 Sponge Wheel Replace the Sponge Wheels if they are badly worn or broken Step 1 ※ Invert the iCleaner-200D on the floor, remove the Base Plate.(Push latch to unlock the Base Plate).(Pic.5.2.1) Step 2 ※ Remove the Filter Net...
  • Page 14 Step 3 ※Using a Phillips head screwdriver and 7mm ring spanner undo the six bolts and nuts on the Side Cover,to remove the Side Cover. ( Pic.5.2.3) （Pic.5.2.3） Step 4 ※ Remove the Rolling Brush. (Pic.5.2.4) （Pic.5.2.4） - 13 -...
  • Page 15 Step 5 ※ Slide the old sponge wheels off, and replace w i t h n e w s p o n g e wheels(Pic.5.2.5) （Pic.5.2.5） Step 6 ※Assemble the Rolling Brush to the axle (Pic.5.2.6) .
  • Page 16 Step 9 Step 10 ※ Put the filter Net into the ※ Place the base Plate into iCleaner-200D,press down on the iCleaner-200D, pressing down filter net until the Latch locks into until the latches lock into place the bracket. (Pic.5.2.9) (Pic.5.2.10)

  • Page 17: Filter Bag

    5.3 Water Retaining Board Replace the Water Retaining Board if they are broken(Pic 5.3.1) hole Step 1 ※ Remove the base plate from the iCleaner and remove the filter bag, then open the water retaining board to the vertical position and carefully slide the water retainining board to one end, remove the water retainining board carefully.
  • Page 18 Note: The Power Box MUST BE DISCONNECTED from the power supply prior to conducting any maintenance on the iCleaner-200D. Contact your local distributor, or place of purchase for problems not covered in the Troubling Shooting Guide. - 17 -...
  • Page 19 Solution Indicator light Failure The iCleaner has Green light stopped bue to flashing Return the robot to deeper water and restart lack of wanter The pump motor Contact the supplier for support Yellow light has over flashing heated Blue light The robot is Turn the iCleaner over, and restart using flashing...

  • Page 20: Safety Checklist

    ◇Please inspect and clean the impeller & Guide Vane according to chapter 5.1, after use. ◇ If you are not going to use the iCleaner-200D for an extended period of time, make sure iCleaner-200D & Power Box is turned off, and store it in a dry, shady &...
