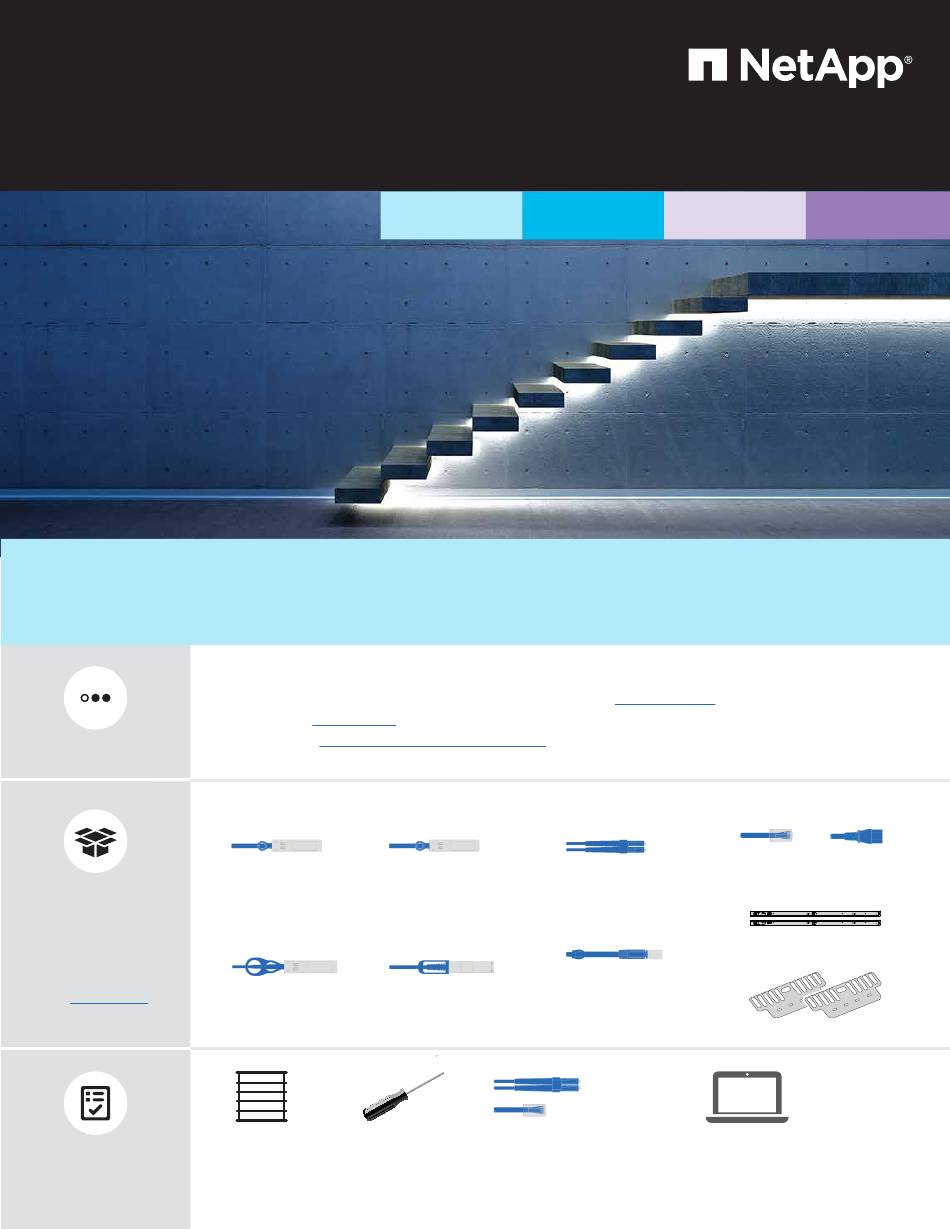

NetApp FAS9500 Installation And Setup Instructions

FAS9500 Systems
Installation and Setup Instructions
Prepare for installation | Stage 1
Pre-setup
Contents
In the box
Cables in your shipment
are order-dependent. Not all
cables shown may be
in your shipment.
Note: For more cable
information and part numbers,
see the Hardware Universe.
You provide
Prepare for installation
1. Unpack all boxes and inventory contents.
Attention: Customers with specific power requirements must check
2. Watch the Setup Videos.
3. Review the NetApp ONTAP Configuration
25 GbE data cable 32 Gb FC (SFP+ Op)
Network cable FC optical network cable
Part numbers: Part numbers:
X66240A-05 0.5m, X66240A-2 2m, X66250-2 2m, X66250-5 5m,
X66240A-5 5m X66250-15 15m
40 GbE network cable 100 GbE network cable
Ethernet data, cluster NVMe storage, Ethernet data,
network cluster network
Part numbers: Part numbers:
X66100-1 1m, X66100-3 3m, X66211A-05 0.5m, X66211B-1 1m,
X66100-5 5m X66211B-2 2m, X66211B-5 5m
Rack space Screwdriver
8U per chassis Phillips #2
Install hardware
1 2
Hardware Universe
Guide.
Optical network cable
Ethernet, FC optical connections
Part number
X6553-R6 2m, X6554-R6 15m
Mini-SAS HD cable
Storage connections
Part number
X-26004-00 1m, X-26005-00 2m,
X66033A 3m
Additional network cables
For connecting your storage system
to your network switch and laptop
or console.
Cable storage
Complete system setup
3
and configuration
for their configuration options.
Additional cables
Ethernet cables Power cables
Slide rail kit
Cable management arms
Laptop or console
With a USB/serial connection and
access to a Web browser to configure
your storage system
4
June 2022 Rev-1_
