Digital Gauge Mode — displays the parameters in form of a digital gauge graph.


Trigger Setting
On the trigger setting screen, you can set a standard range by filling in a Minimum value
and a Maximum value. When exceeding this range, the trigger function will be executed
and the device will automatically record and save the generated data. You can check the
saved live data by tapping the Review button at the bottom of the screen.
Tap the drop-down button on the right side of the parameter name to open a submenu.
The Trigger button is the last one in the submenu. Tap to display the Trigger Setting
dialog box.
Two buttons and two input boxes are available in the Trigger Setting dialog box.
 Trigger — switches the trigger on and off. The trigger is ON by default.
 Buzzer alarm — switches the alarm on and off. The alarm function makes a
beep sound as an alert when the data reading reaches the preset minimum or
maximum point. The buzzer alarm will only sound at the first trigger.
 MIN — displays a virtual keyboard to enter the required lower limit value.
 MAX — displays a virtual keyboard to enter the required upper limit value.


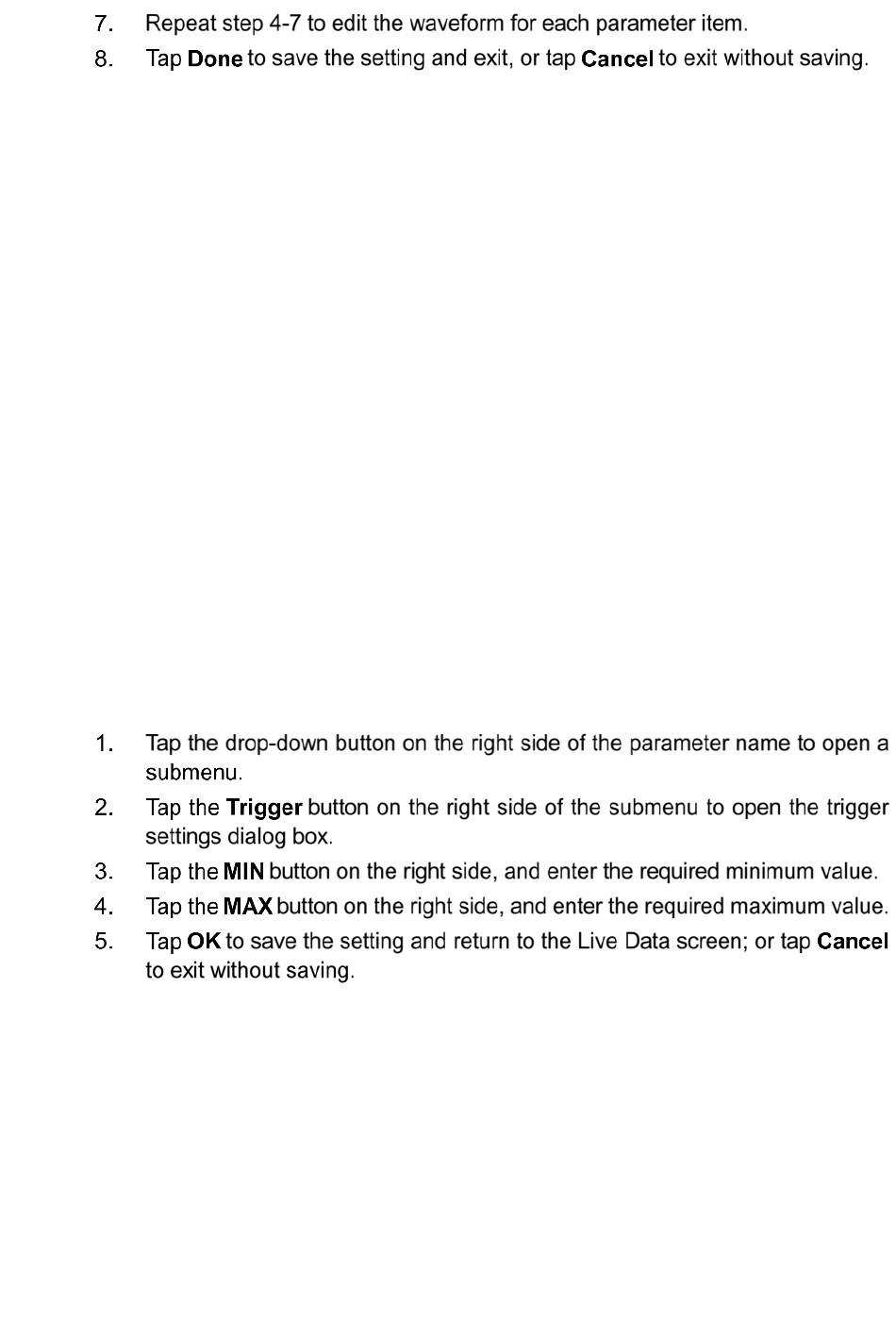

To set a trigger
When the trigger is successfully set, a trigger mark displays in front of the parameter
name. The mark is gray when it is not triggered, and displays orange when triggered.
Moreover, two horizontal lines display on each of the data graphs (when Waveform
Graph Mode is applied) to indicate the alarm point. The limit lines are shown in different
colors to differentiate them from the parameter waveforms.
