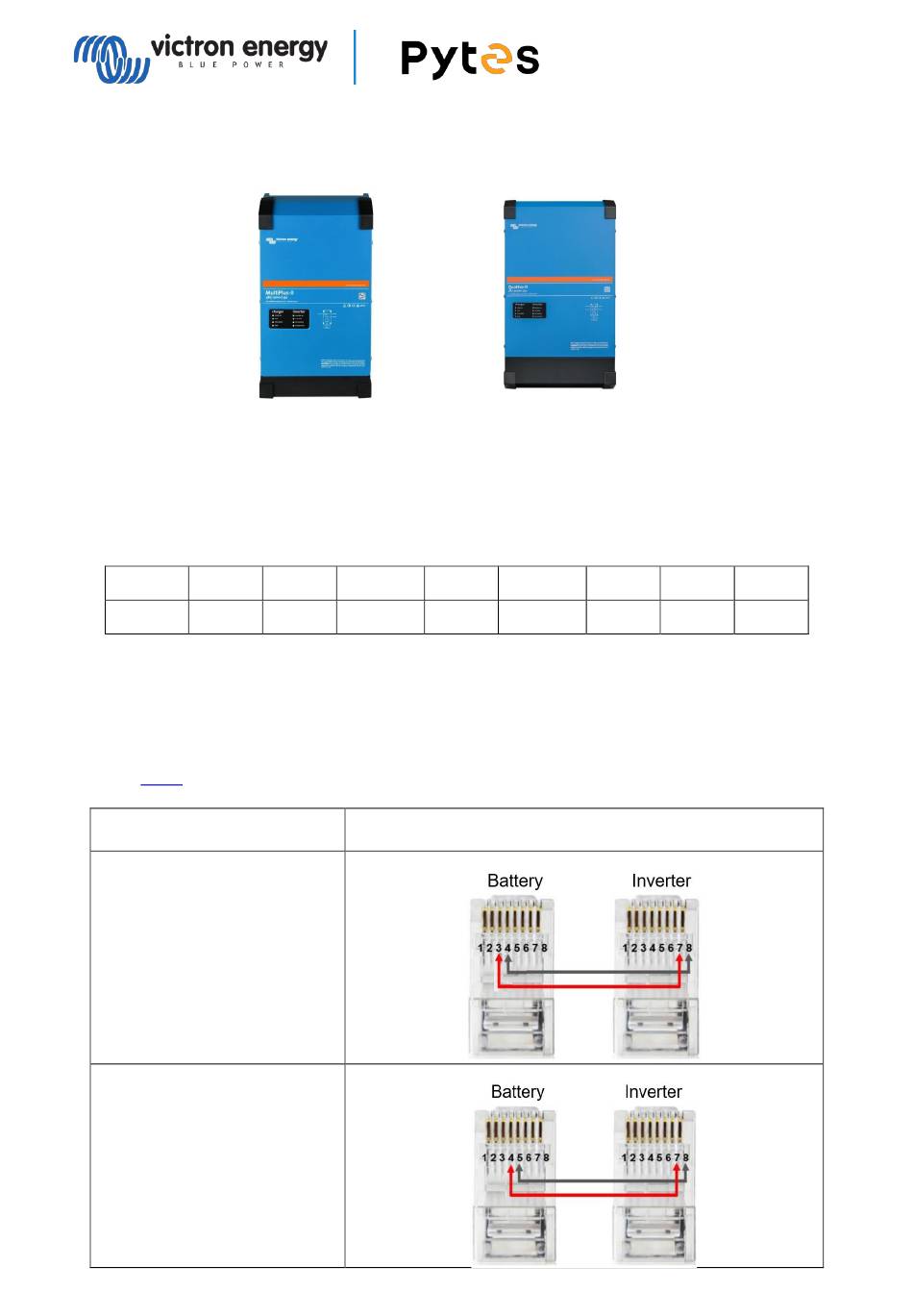

Victron energy Pytes Manual

Inverter/charger

Connect the communication cable

A custom ethernet cable is needed for the communication between Pytes E-BOX

battery and Color Control GX.

Function

Figure 2.1.3.1 Pin assignment of Victron MultiPlus-II (or Quattro-II) series inverter.

Definition CAN Port Pin for BMS is as follow.

Click

here

to tell the version of 48100R you have.

Version of 48100R

A version

B and C version

Victron Inverter/Charger Guide

Figure 2.1.3.2 Victron ethernet cable

Pin number of com. cable

CAN-H

CAN-L

Table of Contents

Do you have a question about the Pytes and is the answer not in the manual?

Page 1 Victron Inverter/Charger Guide Connect the communication cable A custom ethernet cable is needed for the communication between Pytes E-BOX battery and Color Control GX. Function CAN-H CAN-L Figure 2.1.3.1 Pin assignment of Victron MultiPlus-II (or Quattro-II) series inverter. Definition CAN Port Pin for BMS is as follow.
Page 2 Connect the VE.Bus ends of the inverter and Color Control GX by standard ethernet cable. Plug in the battery end into the CAN of the Pytes E-BOX battery and plug in the inverter end into the VE.CAN of the Color Control GX as shown in the Figure 2.1.3.4.
Page 3 Figure 2.1.3.4 Communication cable connection If you bought any other products of Victron Energy, please refer to the Figure 2.1.3.5 below or Manual to connect it. Figure 2.1.3.5 Victron Devices Connection Program the inverter Press the switch on the inverter to enter settings mode.
Page 4 Press “left” or “right” button to “return” or “enter”. Figure 2.1.3.6 Victron Inverter Switch Figure 2.1.3.7 Victron Color Control As shown in the Figure 2.1.3.8, follow below steps to set the boud rate. ➢ Press Settings and down to the Services at the bottom line. ➢...
Page 5 Figure 2.1.3.9 Device connection information Check out the battery parameters. ➢ Check the battery basic parameters: SOC, Voltage and Current on the PYTES line as shown in Figure 2.1.3.10(1). ➢ Go into PYTES, check more battery details, as shown in Figure 2.1.3.10(2) & (3).
