Summary of Contents for Victron energy VE.Direct Bluetooth Smart Dongle

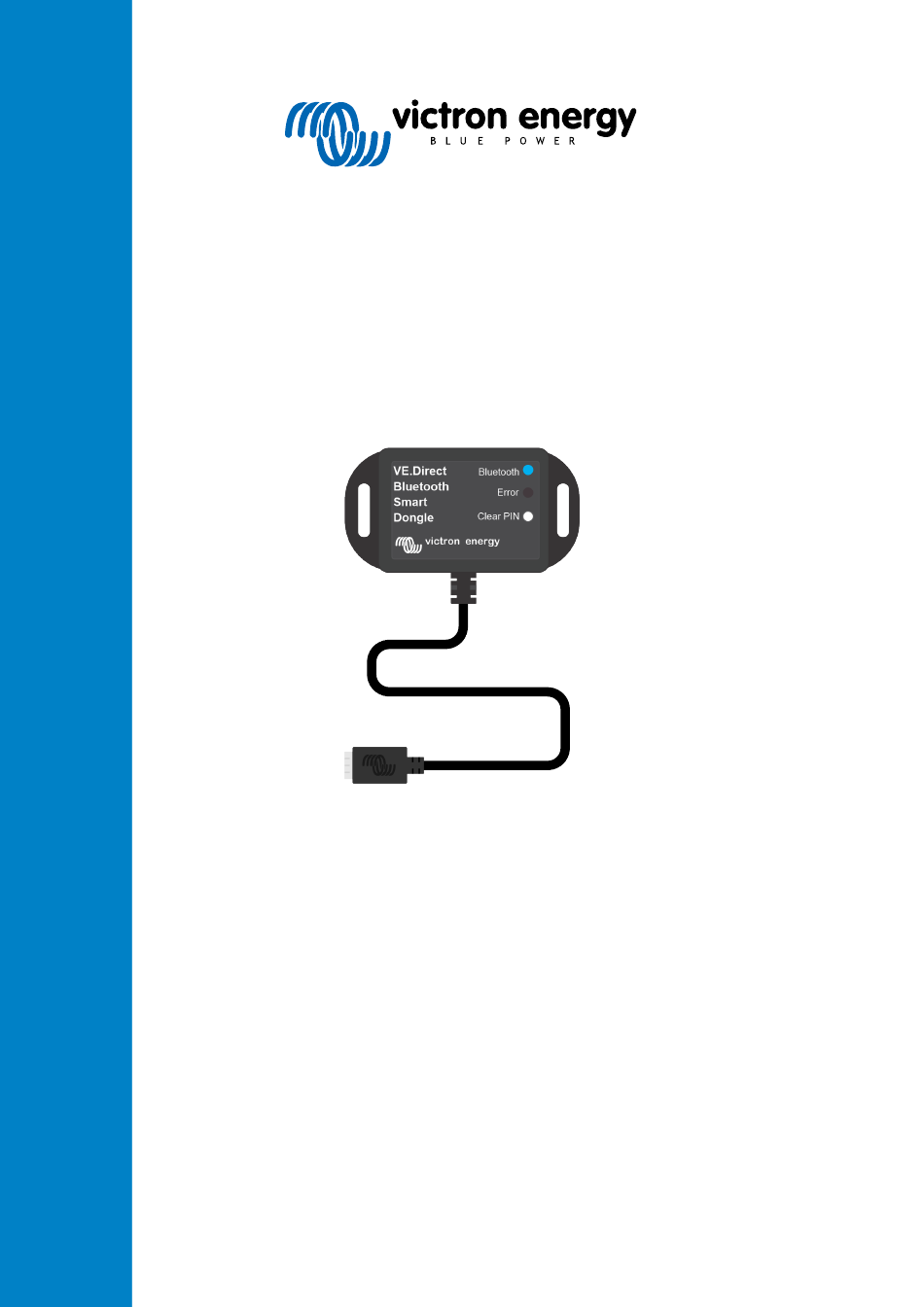

- Page 1 ENGLISH VE.Direct Bluetooth Smart dongle Rev 00 02/2021...
-
Page 2: Table Of Contents
VE.Direct Bluetooth Smart dongle Table of Contents 1. Introduction ........................... 1 1.1. Compatible products ......................1 1.2. The VictronConnect App ....................1 2. Installation ..........................3 3. Operation ..........................4 3.1. LED Status codes Bluetooth module ..................4 3.2. Update firmware ......................4 4. -
Page 3: Introduction

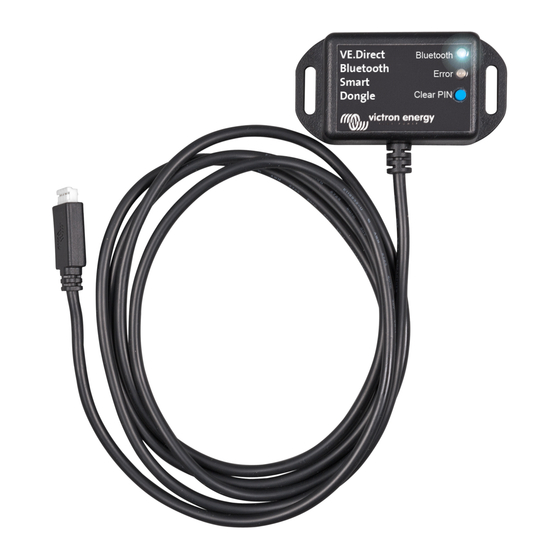

VE.Direct Bluetooth Smart dongle 1. Introduction The VE.Direct Bluetooth Smart dongle allows non-Bluetooth VE.Direct Victron product to be accessed via Bluetooth, for monitoring, changing make settings and update firmware purposes, using the VictronConnect App. The dongle is able to read data from any product that has a VE.Direct port and is especially useful for products that do not have... - Page 4 VE.Direct Bluetooth Smart dongle • Select "VE.Direct smart" from the VictronConnect App device list. • The Victron product can now be accessed via the dongle and VictronConnect App. • Use the VictronConnect App to monitor, make settings or update firmware of the Victron product.
-
Page 5: Installation
LED will be on and the red LED will be off. • Quite often, the firmware of the connected Victron product will also be updated on first connection. It is not possible to extend the 1.5m VE.Direct cable. Connection drawing VE.Direct Bluetooth Smart Dongle Page 3 Installation... -
Page 6: Operation
VE.Direct Bluetooth Smart dongle 3. Operation As soon as the Victron product where the dongle is connected to, is powered up, the dongle will also be powered. The blue Bluetooth LED will be slowly blinking. This means that the dongle is ready for connection. - Page 7 VE.Direct Bluetooth Smart dongle Screenshot dongle firmware update using VictronConnect To check the firmware version or to manually update: • Go to the product info screen as described in previous chapter • Check the firmware version • If the latest version is installed, no action is needed •...
-
Page 8: Troubleshooting And Support
VE.Direct Bluetooth Smart dongle 4. Troubleshooting and Support Consult this chapter in case of unexpected behaviour or if you suspect a product fault. The correct troubleshooting and support process is to first consult the common issues as described in this chapter. -
Page 9: Warranty
Victron Energy to make such repairs. Non-compliance with the instructions in this manual will render the warranty void. Victron Energy is not liable for any consequential damages arising from the use of this product. The maximum liability of Victron Energy under this limited warranty shall not exceed the actual purchase price of the product. -
Page 10: Specifications
VE.Direct Bluetooth Smart dongle 6. Specifications Table 2. Product specifications VE.Direct Bluetooth Smart Dongle Specification Value Current draw when not connected via Bluetooth Current draw when connected via Bluetooth 2.5mA Length VE.Direct cable 1.5m 6.1. Enclosure dimensions Dimension Drawing - VE.Direct Bluetooth Smart dongle ASS030536011 VE.Direct Bluetooth Smart dongle...
