5.1.1. Interface Explained

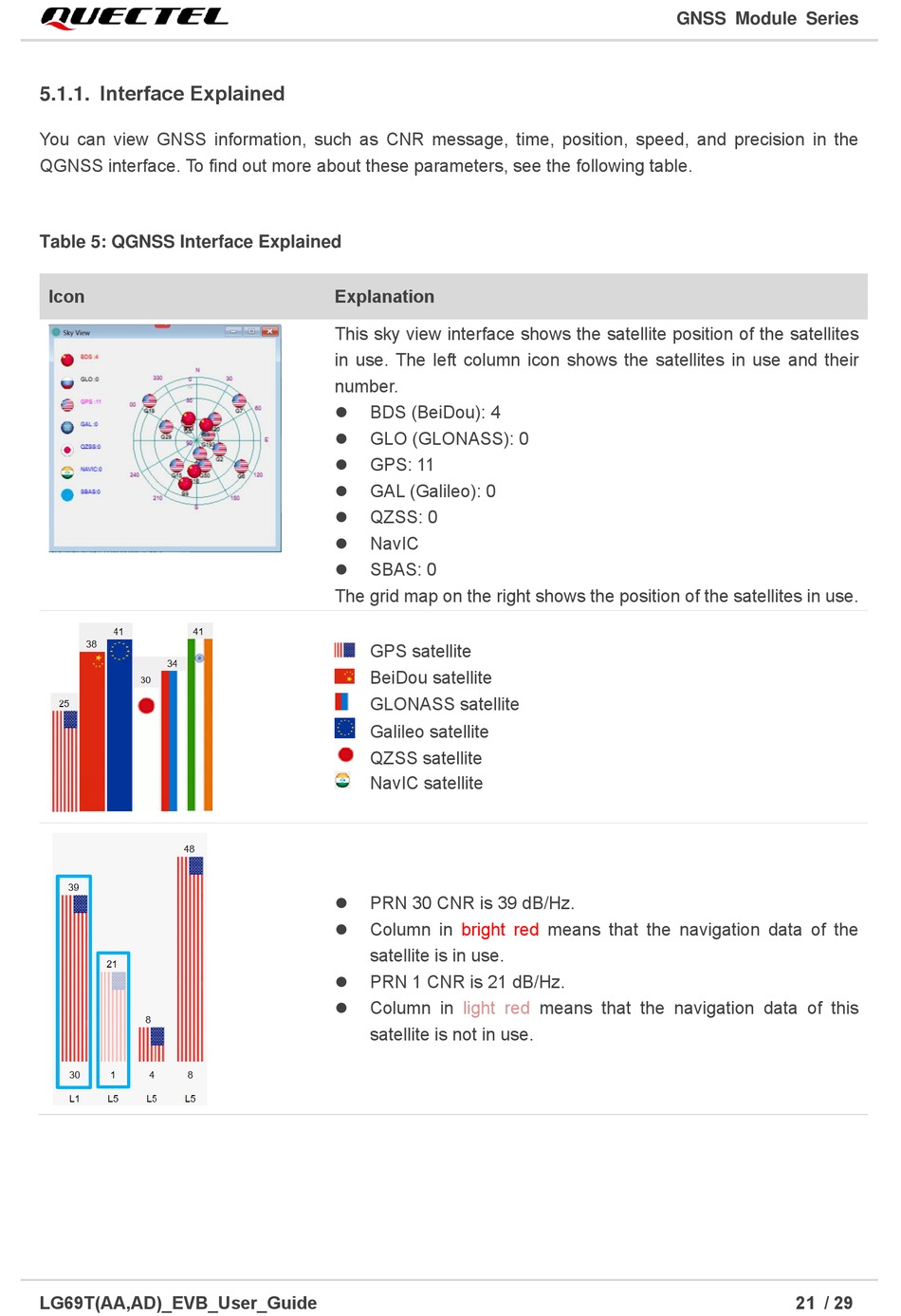

You can view GNSS information, such as CNR message, time, position, speed, and precision in the
QGNSS interface. To find out more about these parameters, see the following table.
Table 5: QGNSS Interface Explained
Icon
LG69T(AA,AD)_EVB_User_Guide
Explanation
This sky view interface shows the satellite position of the satellites
in use. The left column icon shows the satellites in use and their
number.
⚫ BDS (BeiDou): 4
⚫ GLO (GLONASS): 0
GPS: 11
⚫
⚫ GAL (Galileo): 0
⚫ QZSS: 0
NavIC
⚫
⚫ SBAS: 0
The grid map on the right shows the position of the satellites in use.
GPS satellite
BeiDou satellite
GLONASS satellite
Galileo satellite
QZSS satellite
NavIC satellite
⚫ PRN 30 CNR is 39 dB/Hz.
⚫ Column in bright red
satellite is in use.
⚫ PRN 1 CNR is 21 dB/Hz.
⚫ Column in light red
satellite is not in use.
