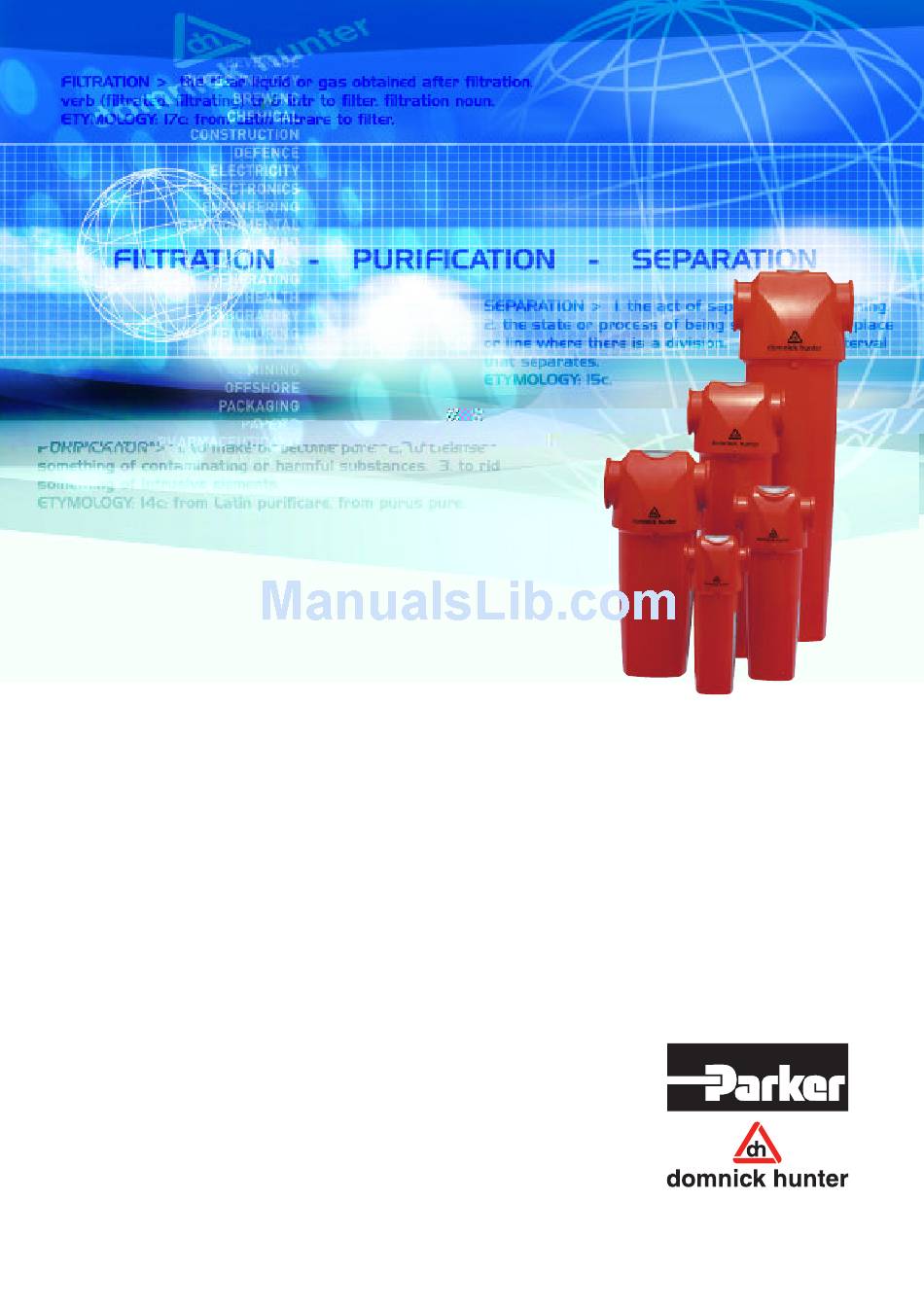

- Page 1 OIL-X EVOLUTION The most energy efficient compressed air filters in the world www.domnickhunter.com...
- Page 2 COMPRESSED AIR - THE 4TH UTILITY COMPRESSED AIR IS A SAFE AND RELIABLE POWER SOURCE THAT IS WIDELY USED THROUGHOUT INDUSTRY. APPROXIMATELY 90% OF ALL COMPANIES USE COMPRESSED AIR IN SOME ASPECT OF THEIR OPERATIONS, HOWEVER UNLIKE GAS, WATER AND ELECTRICITY, COMPRESSED AIR IS GENERATED ON-SITE, GIVING THE USER RESPONSIBILITY FOR AIR QUALITY AND OPERATIONAL COSTS.
- Page 3 Equipment with a low purchase price may turn out to be a more costly investment in the long term. By guaranteeing air quality and ensuring energy consumption is kept to a minimum, domnick hunter OIL-X EVOLUTION filters can reduce the total cost of ownership and help improve your bottom line through improved manufacturing efficiencies.
-
Page 4: Air Quality
AIR QUALITY - GUARANTEED Filtration performance of OIL-X EVOLUTION filters are not only tried and tested by domnick hunter, but has also been independently validated by Lloyds Register. Coalescing filters Dry Particulate filters... -
Page 5: Energy Efficiency
OIL-X EVOLUTION uses a smooth 90° elbow to direct air into the filter element, reducing turbulence and pressure losses significantly by turning the inefficient, sharp 90°... - Page 6 OIL-X EVOLUTION FILTER HOUSINGS HAVE BEEN DESIGNED TO PROVIDE SIMPLE INSTALLATION, LONG HOUSING LIFE AND REDUCED MAINTENANCE TIMES. THE UNIQUE DESIGN OF THE OIL-X EVOLUTION FILTER PROVIDES MORE PORT SIZES FOR FLEXIBILITY AND ENSURES SERVICE TECHNICIANS DO NOT HAVE TO CONTACT CONTAMINATED ELEMENTS DURING MAINTENANCE.
-
Page 7: Regular Maintenance
MAINTAINING AIR QUALITY AND ENERGY EFFICIENCY THROUGH REGULAR MAINTENANCE IT HAS LONG BEEN THE PRACTICE TO CHANGE FILTER ELEMENTS BASED UPON THE PRESSURE DROP MEASURED ACROSS THE FILTER AS THIS IS DIRECTLY ATTRIBUTABLE TO OPERATIONAL COSTS. HOWEVER, ONE MUST REMEMBER THE REASON FOR INSTALLING THE FILTER IN THE FIRST PLACE, i.e. TO REMOVE CONTAMINATION. FILTER ELEMENTS MUST ALWAYS BE REPLACED IN ACCORDANCE WITH THE MANUFACTURERS INSTRUCTIONS TO ENSURE THE DELIVERED AIR QUALITY IS NEVER COMPROMISED. - Page 8 ISO 8573 – COMPRESSED AIR QUALITY STANDARDS ISO 8573 IS THE GROUP OF INTERNATIONAL STANDARDS RELATING TO THE QUALITY OF COMPRESSED AIR AND CONSISTS OF NINE SEPARATE PARTS. PART 1 SPECIFIES THE QUALITY REQUIREMENTS OF THE COMPRESSED AIR AND PARTS 2 – 9 SPECIFY THE METHODS OF TESTING FOR A RANGE OF CONTAMINANTS. ISO 8573.1 : 2001 is the primary document used from the ISO 8573 series and it is this document which allows the user to specify the air quality or purity required at key points in a compressed air system.
- Page 9 +7°C PDP REFRIGERATION DRYER +10°C PDP TOTAL OIL (AEROSOL LIQUID and VAPOUR) OIL-X EVOLUTION Grade AO + AA + OVR OIL-X EVOLUTION Grade AO + AA +ACS OIL-X EVOLUTION Grade AO + AC OIL-X EVOLUTION Grade AO + AA OIL-X EVOLUTION Grade AO...
-
Page 10: Product Selection
Filtration grades Filter Type Bulk Liquid Removal Particle removal (inc water & oil aerosols) Max Remaining Oil Content at 21°C (70°F) Filtration Efficiency >92% Test Methods Used ISO 8573.9 ISO 12500-1 Inlet Challenge Concentration Initial dry differential pressure Initial saturated differential pressure Change Element Every Precede with filtration grade... -
Page 11: Technical Data
Technical data Filter Grade Filter Models - 055 - 055 - 055 - 055 - 055 - 055 - 055 Weights and dimensions Model Pipe Size 005A " 005B " 005C " 010A " 010B " 010C " 015B " 97.5 015C "... - Page 12 A division of Parker Hannifin Corporation dh, domnick hunter, OIL-X, OIL-X EVOLUTION, TETPOR, PNEUDRI and VALAIRDATA are registered trademarks of Parker Hannifin ltd. Parker Hannifin ltd, domnick hunter division has a continuous policy of product development and although the Company reserves the right to change specifications, it attempts to keep customers informed of any alterations.
