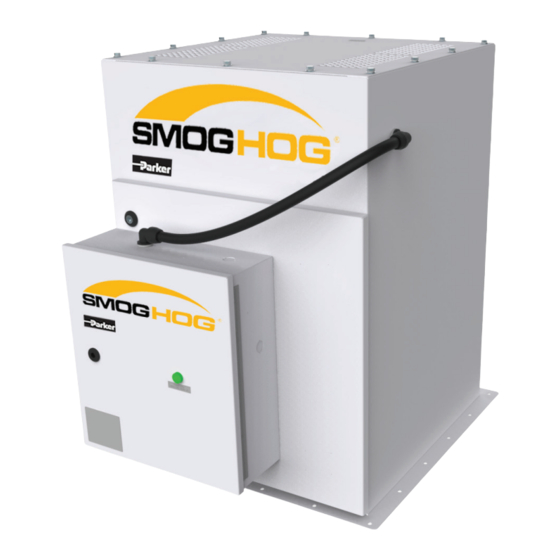

Parker SMOG-HOG MSH-05-H Owner's Manual

Industrial electrostatic air cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Industrial Electrostatic Air Cleaner
Owner's Manual
®
SMOG-HOG
Model MSH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMOG-HOG MSH-05-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Parker SMOG-HOG MSH-05-H

Summary of Contents for Parker SMOG-HOG MSH-05-H

  • Page 1 Industrial Electrostatic Air Cleaner Owner's Manual ® SMOG-HOG Model MSH...
  • Page 2 For quick future reference, fill in the system and filter information in the spaces below. Should you need assistance, call the Parker customer service number shown below. To expedite your service, have the fol- lowing information available when contacting Parker.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page Safety Precautions ....................ii 1. Important Notice ....................1 2. Description ......................1 3. Installation ......................1 3.1 Inspection Note ....................1 3.2 Installation Planning..................1 3.3 Unit Mounting ....................2 4. Start-up and Operation ..................2 5. Maintenance and Manual Cleaning ..............2 5.1 Normal Maintenance ..................2 5.2 Manual Cleaning of SMOG-HOG Components ..........3 5.3 Manual Cleaning Methods ................3...

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS We have provided many important safety messages in this manual. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”...

  • Page 5: Important Notice

    In the event of a short circuit or other overload condition, the Proper use of the equipment must be discussed with a Parker power supply is designed to cause the high voltage to col- representative.

  • Page 6: Unit Mounting

    D A N G E R 5. Maintenance and Manual Cleaning DO NOT OPERATE THIS EQUIPMENT IN THE C A U T I O N PRESENCE OF COMBUSTIBLE VAPORS OR GASES The MSH unit should be inspected frequently and col- lected contaminant removed from the system regularly 3.3 Unit Mounting to prevent excessive accumulation which may result in...

  • Page 7: Manual Cleaning Of Smog-Hog Components

    5.2 Manual Cleaning of Smog-Hog Rinse Procedure Components Cleaned components should be rinsed off quickly and thoroughly to remove remaining contaminants. Some detergent residue will There are a number of methods for manual cleaning, certain key remain if rinsing is not performed. The residue may contribute to cleaning criteria contribute to the effectiveness of every method.

  • Page 8: Appearance Of Components After Cleaning

    Automatic Parts Washers NOTE: In the event that replacement wires are not immediately available, the ionizer may be left in service. Remove bro- Certain commercially available units combine and automate the ken wire(s) and springs from the assembly. Operation with features necessary for effective cleaning, including water heating, missing wires will result in reduced operating efficiency.
  • Page 9 STEP 2 WARNING PROBLEM: Indicator light is flashing. Power pack enclosure(s) service voltage is 120VAC PROCEDURE: Checking the unicell components or 230VAC. This can be lethal. Voltage (120 VAC) Do not proceed with step (2) until step (1) is completed. The or (230 VAC) is present within the power pack following steps are the process of elimination in identifying the enclosure.
  • Page 10 High Voltage Probe Measurements (b) Indicator light is illuminated with the high voltage wire #7 con- nected to the collector cell connector on the power pack. Place A high voltage probe (refer to manufacturers instructions) is MSH "off" and connect high voltage wire #8 to the ionizer connec- required to measure high voltage output from the power pack.
  • Page 11 Parker equipment should be by a licensed contractor that is also experienced in potential fire and explosion hazards and adheres to related local, state and federal codes, standards, laws and regulations. Parker is not an expert nor certified design consultant in relation to spark, fire or explosion mitigation including but not limited to detection, mitigation, suppression and isolation pf combustible dusts and materials.

  • Page 12: Troubleshooting Table

    6.4 Troubleshooting Table PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTIONS 1. Control switch on, indicator lamp off, Defective lamp Replace lamp air mover operates. Faulty connection to lamp Check connection to lamp Loss of high voltage Check power supply 2. Control switch on, indicator lamp on, Air mover faulty Replace air mover air mover does not operate.

  • Page 13: Replacement Parts

    2. Unit serial number (nameplate) 3. Part number and part description Returning parts: When returning parts directly to Parker for any reason, call Parker at 1-800-343-4087 for a return authorization number before returning the parts. This number must be on the package being returned.
  • Page 14 Figure 1. Unit Components...
  • Page 15 Figure 2. Drain Loop Assembly Figure 3. Ionizer and Cell Voltage Measurement Figure 4. Replacing Ionizer Section Figure 5. Grounding The Collector Cell Section...

  • Page 16: Figures

    Figure 6. Grounding the Ionizing Section Figure 7. Power Pack Input/Output Connections...
  • Page 17 MSH-05...
  • Page 18 MSH-05-M...
  • Page 19 MSH-11...
  • Page 20 MSH-11-M...
  • Page 21 MSH-11 w/ Optional ON/OFF Switch...
  • Page 22 MSH-05 1PH Interconnect MSH-11 1PH Interconnect...
  • Page 23 MSH-05 3PH Interconnect MSH-11 3PH Interconnect...

  • Page 24: Warranty

    MCB, PNP, SDC, SFC, and SHM series will be free from defects in materials and workmanship for ten (10) years from the date of shipment from Parker. Subject to the terms and conditions hereof, warrants to the original...
  • Page 25 On claims that require repaired parts return, the claim will be processed after the part has been evaluated by the Parker IGFG Quality Department for verification of failure mode. The claims will be paid in the form of a credit to the customer’s account.
  • Page 26 310 637 3400 +44 (0) 191 410 5121 +27 11 9610700 www.parker.com/watermakers www.parker.com/processfiltration www.parker.com/africa © 2020 Parker Hannifin Corporation. Product names are trademarks or registered trademarks of their respective companies IOM_PKR_MSH_122020 P/N: 44-10510 Parker Hannifin Corporation Industrial Gas Filtration and Generation Division...

This manual is also suitable for:

Smog-hog msh-05-vSmog-hog msh-05-m-hSmog-hog msh-11-hSmog-hog msh-11-vSmog-hog msh-11-m-hSmog-hog msh-11-m-v
