DENIOS AG
Dehmer Straße 58-66
32549 Bad Oeynhausen
Tel.:
+49 (0)5731 7 53 – 0
Fax:
+49 (0)5731 7 53 – 197
E-Mail: info@denios.com

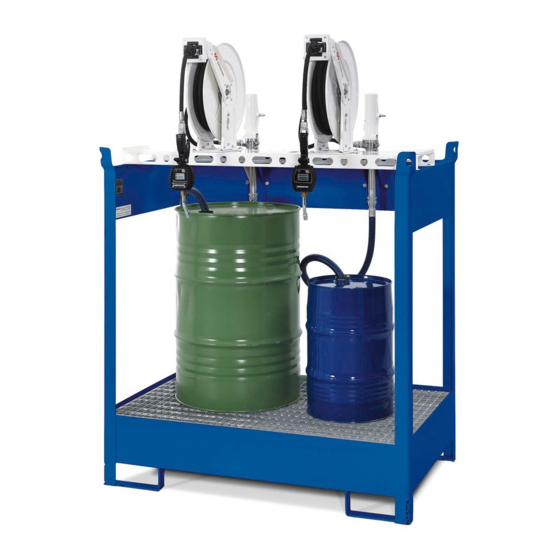

HazMat station EPO-2 with open hose reel, for 2 oils in 60l or 200l barrels
HazMat station EPO-4 with open hose reel, for 4 oils in 60l or 200l barrels
Store oils in an environmentally sound way on economic 1,2 qm and dispense them directly into engines, gear boxes
and axles. Our "Fresh oil-island" is always and everywhere ready to use - just a 230V supply away.
An increased variety of oils individually adapted to specific vehicle models and less consumption due to longer
service intervalls require innovative working tools.
space-saving design
economic
efficient
completely equipped
environmentally sound
Technical data
Sump tray with a volume of 210l and a mountin frame according to the German Water Resources Law (WHG)
electric gear pumpwith suction unit
automatic hose reels with 10m delivery hose
filling pistols with swivel and electronic flow meter appropriate for calibration
all components are mounted ready to use
In order to avoid personal injury or material loss, please read the operation manuals!
Units may only be serviced or repaired if this should be necessary by authorized specialists or company
representatives.
The following operation manuals are included:
electric pump
hose reel open
electronic flow meter
www.denios.com

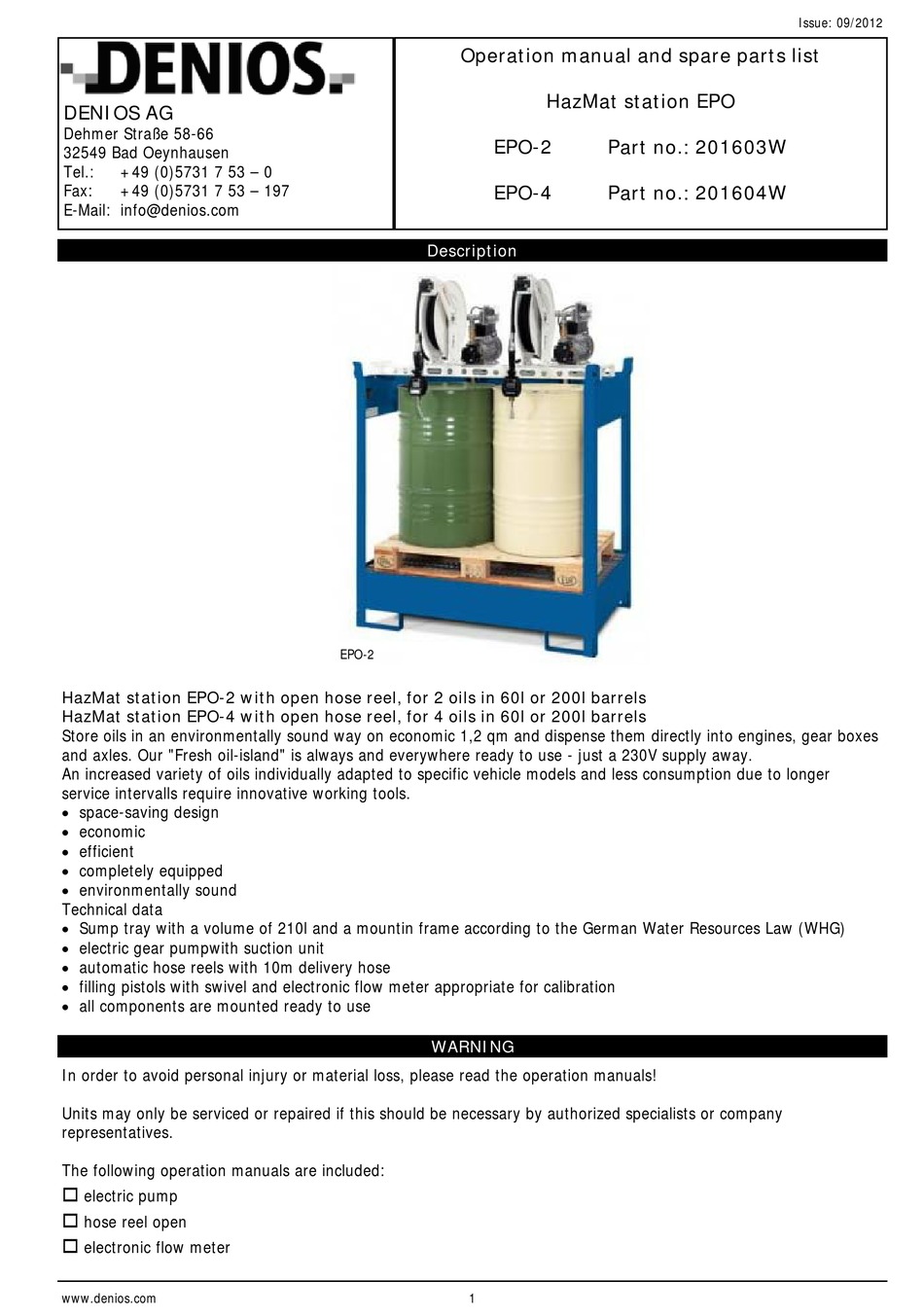

Operation manual and spare parts list
EPO-2
EPO-4
Description
EPO-2
WARNING
1
HazMat station EPO
Part no.: 201603W
Part no.: 201604W
Issue: 09/2012
Advertisement
Table of Contents
Related Manuals for Denios HazMat station EPO-2
Summary of Contents for Denios HazMat station EPO-2
- Page 1 Description EPO-2 HazMat station EPO-2 with open hose reel, for 2 oils in 60l or 200l barrels HazMat station EPO-4 with open hose reel, for 4 oils in 60l or 200l barrels Store oils in an environmentally sound way on economic 1,2 qm and dispense them directly into engines, gear boxes and axles.
- Page 2 HazMat station EPO Issue 09/2012 INSTRUCTIONS 1. General instructions The general instructions for storage systems, material no. 103041, in the current version, must be observed. National standards and safety regulations must be observed. 2. special instructions Area of the grating must remain free as shown on the type label. 3.
- Page 3 Issue: 09/2012 Operation manual and spare parts list Automatic hose reel - open DENIOS AG Dehmer Straße 58-66 32549 Bad Oeynhausen Tel.: +49 (0)5731 7 53 – 0 Fax: +49 (0)5731 7 53 – 197 E-Mail: info@denios.com Description Automatic single arm hose reel open - serie 506 Professional automatic single arm hose reel for oil, with delivery hose 10m nom.
- Page 4 Gently pull the hose, it is automatically winded Gently pull the hose, the hose is automatically wind- (Fig. 14). ed (Fig. 14). Repeat if more spring tension is required. Repeat if less spring tension is required. www.denios.com...
- Page 5 EC Declaration of Conformity SAMOA INDUSTRIAL, S.A., Alto de Pumarín, s/n, 33211 - Gijón - Spain, declares declares that the hose reels 506 XXX conform(s) with the EU Directive(s): (2006/42/EEC) For SAMOA INDUSTRIAL, S.A. Pedro E. Prallong Alvarez Production Director www.denios.com...
- Page 6 Spacer 944816 U-bolt AISI 316 850614 Spring cover 941126 (2) Nut AISI 316 940522 (x6) Screw 852601 (2) Hose-stop 850442 Spring washer 940610 (2) Screw Part. N° Description 941105 (2) 850310 Standard spring (10 m) Plate u-bolt AISI 316 www.denios.com...
