MULTIFUNCION
MULTIFUNCION
Installation Manual
Installation Manual
Before installing, read the instructions completely in order to install
After installation is completed, keep this manual where you can refer to it easily.
This manual includes
important safety and
installation information.
Please follow the cautions
given in this manual.
In case an accident occurs as
a result of improper
installation, we will in no case
assume responsibility for
damages.
Please give this manual to the
next user when you move or
give this product to another
person.
8-11301000
the product properly and prevent accidents in use.
CONTENTS
Safety precautions
Names of parts
Trial operation
LUMEN
LUMEN
.........................................................................................2
...................................................................................4
............................................................................4
Product carton contents .............................................................4
Power supply .............................................................................5
Water supply..............................................................................5
Water pressure ...........................................................................5
Minimum installation clearance ................................................5
Remote control unit mounting location ....................................6
Water supply hose. ....................................................................6
Water supply location................................................................6
...............................................................................................7
......................................................................................................8
.............................................................................................17
Check the shower and bidet spray...........................................17
When the spray strength is weak, clean the strainer. ..............18
the product to the customer. ....................................................19
Advertisement
Table of Contents
Related Manuals for Roca LUMEN

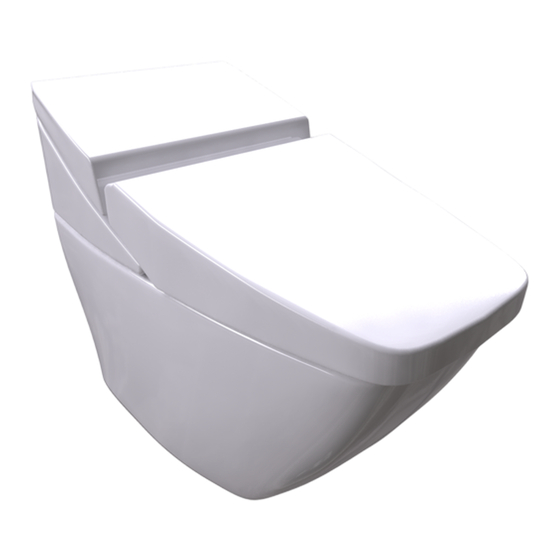

Summary of Contents for Roca LUMEN
-
Page 1: Table Of Contents
LUMEN LUMEN MULTIFUNCION MULTIFUNCION Installation Manual Installation Manual 8-11301000 Before installing, read the instructions completely in order to install the product properly and prevent accidents in use. After installation is completed, keep this manual where you can refer to it easily. - Page 2 Safety precautions These safety precautions are essential for safe installation and use of the shower toilet. Please read the precautions thoroughly before installing the product properly and prevent accidents in use. BE SURE TO FOLLOW THESE PRECAUTIONS Explanation of terms and symbols DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
- Page 3 Never operate the shower toilet if it has a damaged cord or plug or if the plug is loose in the wall outlet. * There is danger of electric shock or fire. If the supply cord is damaged, contact the manufacturer or its service agent for service, in order to avoid a hazard.
-
Page 4: Installing The Product
Installing the product Installation requirements Before installing this product, ensure that each of the following installation requirements is met. Product carton contents Remove the parts from the product carton and make sure all the parts in the parts list (below) are present. -
Page 5: Power Supply
Power supply * Use an outlet with a maximum rating of AC 230 V and 580 W. * The length of the power cord is 1.2 m. Install the outlet within reach of the power cord in a water-free position above the floor level. * Be sure to ground the outlet. -
Page 6: Remote Control Unit Mounting Location
Remote control unit mounting location The remote control unit should be mounted on the wall which is on the side where the toilet's remote control light receptor is located (left side). If the remote control unit is If the remote control unit is mounted on the left side wall mounted on the right side wall 1300 mm or less... - Page 7 Names of parts Remote Control Unit Toilet Seat Lid Body Flush Lever Toilet Strainer Nozzle (See figure below.) (for posterior) Nozzle (for bidet) Power Plug Toilet Seat Drain Socket Water Shutoff Warm Water Tank Drain Valve Plug and Shower Toilet Strainer Water (See figure below.)
-
Page 8: Installation
Installation 1. Installing the water shutoff valve In the case of water supply from the wall Water Supply Water Supply CAUTION: Pipe Outlet Do not get your hand caught in the water shutoff valve or step on it. * It could cause the pipe to become unstable or damage it, causing water leakage. - Page 9 (4) Fix the drain socket with the screws. Wood Screw Drain Socket Washer Seal parallel Plastic Anchor Pilot Hole (S10) Drain Pipe (S10) (5) Align the collar of the mounting base with the collar Collar of the drain socket to fix the position of the mounting base.
- Page 10 4. Installing the water supply hose (Body side) Installation Diagram Install the water supply hose in a direction so that it is not bent when connected. Water Supply Inlet on Body Water Supply Hose Clip (1) Insert the end of the water supply hose in the water supply inlet of the body.
- Page 11 5. Installing the body Installation Diagram Flat Packing Mounting Nut (1) Remove the protective cover and protective cap. Remove the protective cover from the toilet bowl, <Toilet Bowl> Protective Cover and then remove the protective cap from the body. <Body> Protective Cap (2) Install the flat packings.
- Page 12 (3) Install the body on the toilet. Place the mounting bolts on the bottom of the body in the 2 mounting holes in the back of the toilet bowl to install the body. CAUTION: Do not take hold of the flush handle to life the body. * The body or the flush handle could become damaged.
- Page 13 6. Installing the water supply hose (Water shutoff valve side) Installation Diagram Clip In the case of In the case of water water supply supply from the wall from the floor Water Shutoff O-ring Valve Clip Clip Water Supply Water Water Supply Hose Hose Shutoff...
- Page 14 7. Connecting the power supply Power Plug (1) Insert the power plug in the wall outlet. CAUTION: Be sure to turn on the power only after installation of the product is completed. Do not insert the power plug in the outlet while touching the toilet seat.
- Page 15 9. Mounting the remote control unit Bracket (1) Place the bracket on the wall so that it aligns with the internal wall frame, then mount it in the desired mounting position. If mounted in plywood paneling 5 mm or greater in thickness: Wood Screw Fasten the bracket to the wall with the wood screws.
- Page 16 10.Water leakage check Open (1) Turn the Open/Close handle of the water shutoff valve to the fully open position and turn on the flow of water to the shower toilet. Water Shutoff Valve Open/Close Handle (2) Check to make sure there is no water leakage. 1) Operate the remote control unit, flushing the toilet several times.
-
Page 17: Check The Shower And Bidet Spray
Trial operation Check the shower and bidet spray. 1. Check the shower washing operation. Roll up your sleeve and bring your bare (1) Rest your arm on the toilet seat, then press the arm in direct contact POWERFUL shower button. with the toilet seat. -
Page 18: When The Spray Strength Is Weak, Clean The Strainer
When the spray strength is weak, clean the strainer. (1) Close the water shutoff valve's Open/Close handle. Water Shutoff Valve CAUTION: Do not remove the strainer with the water shutoff Close valve opened. * Doing so may cause water leakage from the strainer. Open/Close Handle (2) Press the flush button on the remote control unit. -
Page 19: Drain Out The Water If A Freeze Is Expected Before Handing The Product To The Customer
Drain out the water if a freeze is expected before handing the product to the customer. (1) Close the water shutoff valve's Open/Close handle. Water Shutoff Valve CAUTION: Do not remove the strainer with the water shutoff Close valve opened. * Doing so may cause water leakage from the strainer. - Page 20 Roca Sanitario, S.A. Avda. Diagonal, 513 08029 Barcelona España Tel. +34 (93) 366 12 00 Authorized Dealer PCW-1065-ES...
