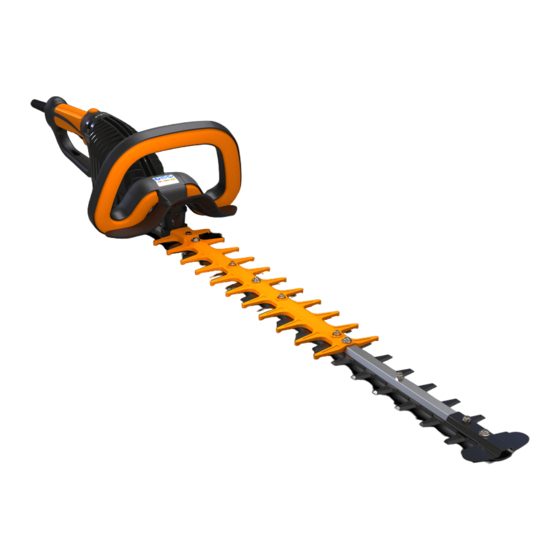

- Page 1 Translation of the original op- erating instructions manual ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B Operating instructions 01/2022 READ THE USER GUIDE CAREFULLY BEFORE USE...
-
Page 3: Table Of Contents
......................4.5. CONNECTING PELLENC BATTERIES TO THE TOOL ............... 4.6. DISCONNECTING THE BATTERY ....................5. USAGE ..........................16 5.1. STARTING AND STOPPING THE ELECTRIC HEDGE TRIMMER HELION 3 ......5.1.1. START-UP OF THE TOOL ....................... 5.1.2. STOPPING THE TOOL ........................ - Page 4 6.6. GREASING THE HEDGE TRIMMER BLADE REDUCER ............6.7. SHARPENING THE BLADES ......................7. INCIDENTS AND TROUBLESHOOTING ................26 7.1. TROUBLESHOOTING SYMPTOMS OF THE HELION 3 ELECTRIC HEDGE TRIMMER .... 8. STORAGE AND TRANSPORT .................... 27 8.1. STORAGE ............................8.2. OFF-SEASON STORAGE ......................
-
Page 5: Introduction
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 1. INTRODUCTION Dear Customer, Thank you for purchasing your Electric hedge trimmer Helion 3. Properly used and maintained, this equipment will give you years of satisfaction. Warning Your machine contains numerous recoverable or recyclable materials. Return it to your dealer or, failing this, to an approved servicing centre to be treated. -
Page 6: Safety
54_161520-B 2. SAFETY 2.1. INTENDED USAGE • The Electric hedge trimmer Helion 3 is a professional tool whose use is reserved exclusively for trimming vege- tation. • Any other use of this tool is not intended. • The PELLENC company accepts no responsibility for any damage caused by improper or unspecified use different from its original intention. -
Page 7: Personal Safety
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 2.2.3. PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 8: Servicing
2.2.7. MANAGEMENT OF THE RECYCLING AND RECOVERY OF WASTE FROM YOUR TOOL When the tool reaches the end of its life, PELLENC keeps the end of life sheet of the equipment at disposal. The end of life sheet provides instructions for safely removing components. -
Page 9: Safety Signage
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 2.4. SAFETY SIGNAGE Regulatory Compliance Mark (RCM). The product complies with the le- LwA sound power level guaranteed gal requirements for electrical safety and/or electromagnetic compatibility (EMC). Please read the operating instruc- tions. Tool compliant with EC standards. -
Page 10: Personal Protection Equipment
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 2.5. PERSONAL PROTECTION EQUIPMENT Equipment Wearing of Description Safety Recom- Mandatory if there is a risk of falling helmet mended objects Protec- Recom- Risk of projections. tive visor mended Protec- Recom- Wear hand protection especially when... -
Page 11: Description And Technical Characteristics
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS 3.1. DESCRIPTION OF THE TOOL Front handle safety trigger Quick connector Front handle Handle rotation button Power “On” and speed indicators Engine housing Speed button 10. Hand guard Rear handle 11. -
Page 12: Chargers And Batteries Compatibility
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 3.2.2. CHARGERS AND BATTERIES COMPATIBILITY Battery Charger Remarks ALPHA 260 CB5022 ; CB5022HV *with adapter cord ref. 57248 ALPHA 520 CB5022 ; CB5022HV *with adapter cord ref. 57248 ULIB 750 CB5022; CB5022HV *with adapter cord ref. 57238 3.2.3. -
Page 13: Commissioning
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 4. COMMISSIONING 4.1. PACKAGE CONTENTS Check that the Electric hedge trimmer Helion 3 is delivered with: • 1x hedge trimmer without blade (handle removed) • 1 x Torx wrench • 1 x user guide •... -
Page 14: Mounting The Blade
Important Tightening torque: 4 N.m. Caution Only ever use blades supplied by PELLENC to avoid the risk of injury. Warning Running-in of the blade must be done for 1 minute at each change of the blade in a dry run. -
Page 15: Position Of The Handle
To prolong the life of the connectors, it is advisable to protect them when they are disconnected. Avoid leaving them in contact with abrasive or dirty surfaces, or subjecting them to significant impacts (falls). For more information on PELLENC batteries see the battery instructions. Install the battery and the power cord on the har- ness, refer to the assembly sheet supplied with the harness. -
Page 16: Disconnecting The Battery
To remove the battery from the harness, refer to the battery instructions and to the harness assembly in- structions 5. USAGE 5.1. STARTING AND STOPPING THE ELECTRIC HEDGE TRIMMER HELION 3 5.1.1. START-UP OF THE TOOL Caution Check that the safety devices are running properly before starting work. - Page 17 If the drive trigger remains released for more than 5 minutes, repeat the above process to re-prime the tool. The Helion 3 hedge trimmer allows quick connector connection / disconnection. To activate the function, the battery must remain on (switch on I)
-
Page 18: Stopping The Tool
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 5.1.2. STOPPING THE TOOL Switch off the battery and disconnect the tool, refer to Section 4.6, “Disconnecting the battery”. Fit the sleeve over the blade. Note Cover the blade with the sleeve in all of the fol- lowing situations: transport, adjustment, han- dling and storage of the tool. -
Page 19: Tips For Using The Adaptable Blades
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 5.3. TIPS FOR USING THE ADAPTABLE BLADES “OPTIMAL USE” “POSSIBLE USE” Pruning work over “POSSIBLE USE” “POSSIBLE USE” large sections “OPTIMAL USE” Dense vegetation “POSSIBLE USE” “POSSIBLE USE” “POSSIBLE USE” in small sections “OPTIMAL USE”... -
Page 20: Maintenance
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 6. MAINTENANCE 6.1. MAINTENANCE ADVICE Caution Always disconnect the tool battery before starting tool maintenance. • Use products recommended by PELLENC. • In the event of any problem, consult an authorised PELLENC distributor. -
Page 21: Tool Maintenance Table
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 6.2. TOOL MAINTENANCE TABLE... -
Page 22: Annual Overhaul
6.3. ANNUAL OVERHAUL Important Have your machine serviced every 200 hours or at least once a year by a PELLENC authorised distributor. Always stock the tool clean and in a dry place, with the battery charged. These parts must be replaced as a precautionary measure or at least once a year:... -
Page 23: Cleaning The Blades
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B Check the position of the blades, using a set of spac- ing shims. 6.5. CLEANING THE BLADES Caution Always disconnect the hedge trimmer from the battery before working on the blades. Important Energy consumption varies depending on the state of cleanliness of the tool. -
Page 24: Greasing The Hedge Trimmer Blade Reducer
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B Check that there is no residue between the blades. Clean and lubricate the blades with the cleaning/lu- bricating spray recommended by PELLENC (refer- ence: 121633). Warning Never use solvents ( trichloroeth- ylene, white spirit, petrol, etc.) to clean the tool. -
Page 25: Sharpening The Blades
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B Grease the reducer with the grease gun (20g grease maximum) recommended by PELLENC (reference: 74588 (supplied with the hedge trimmer blade or ref- erence: 115174). Refit the screw. Tighten to torque using a T25 torque screwdriver. -
Page 26: Incidents And Troubleshooting
7. INCIDENTS AND TROUBLESHOOTING Important For any problems concerning the battery, refer to the manual that comes with the battery. PELLENC recom- mends contacting an authorised PELLENC dealer in all cases of breakdown. 7.1. TROUBLESHOOTING SYMPTOMS OF THE HELION 3 ELECTRIC HEDGE TRIMMER... -
Page 27: Storage And Transport
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B Tool protection Symptom Check Probable cause Solutions LEDs flash before shut- Clean and lubricate the blade down 1 long beep and 4 Thermal protec- short beeps from battery tion of the tool Allow the tool to cool down... -
Page 28: Accessories And Consumables
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 9. ACCESSORIES AND CONSUMABLES 9.1. PRESENTATION OF BLADE TYPES Reference: 56205 Reference: 56206 Reference: 56207 9.1.1. ACCESSORIES PROVIDED WITH EACH BLADE • Protective sleeve • Mounting instructions • The blade's certificate of conformity 9.2. ACCESSORIES... -
Page 29: Warranties
The warranty is fully integral to the product sold by PELLENC. 10.1.2.1.2. SPARE PARTS The commercial warranty also covers original PELLENCspare parts, excluding labour and to the exclusion of certain... -
Page 30: Paid After-Sales Service
PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. - Page 31 Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and commercial warranty period. In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.
-
Page 32: Compliance Statements
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 11. COMPLIANCE STATEMENTS 11.1. STATEMENT OF COMPLIANCE: HELION 3 MANUFACTURER/ENTITY AUTHORISED TO COM- PELLENC PILE THE TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as:... -
Page 33: Declaration Of Conformity
ELECTRIC HEDGE TRIMMER HELION 3 54_161520-B 11.2. UK DECLARATION OF CONFORMITY : HELION 3 MANUFACTURER / ENTITY AUTHORIZED TO COMPILE PELLENC THE TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as:... - Page 36 PELLENC Quartier Notre Dame - 84120 Pertuis (France)
