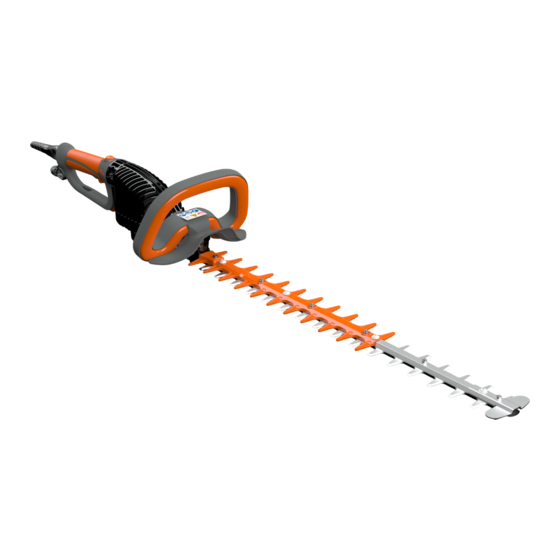

- Page 1 Translation of the original user guide ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H Operating instructions 05/2020 READ THE USER GUIDE CAREFULLY BEFORE USE...
-
Page 3: Table Of Contents
......................4.3. MOUNTING THE DEFLECTOR ON THE L.63 BLADE ..............4.4. POSITION OF THE HANDLE ......................4.5. CONNECTING PELLENC BATTERIES TO THE TOOL ............... 4.5.1. 750 / 1200 / 1500 ULIB BATTERIES ....................4.5.2. 260 / 520 ALPHA BATTERY ...................... - Page 4 ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 6.5. CLEANING THE BLADES ......................6.6. HEDGE-TRIMMER BLADE LUBRICATION .................. 6.7. SHARPENING THE BLADES ......................7. INCIDENTS AND TROUBLESHOOTING ................28 7.1. SYMPTOMS OF THE HELION 2 HEDGE-TRIMMER ..............8. STORAGE AND TRANSPORT .................... 29 8.1.
-
Page 5: Introduction
54_117575-H 1. INTRODUCTION Dear Customer, Thank you for purchasing your Electric hedge-trimmer Helion 2 Compact . Correctly used and maintained, this tool will give a satisfactory performance for many years. Warning Your device contains numerous recoverable or recyclable materials. Return it to your dealer or, failing this, to an approved servicing centre to be treated. -
Page 6: Safety
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 2. SAFETY • The HELION 2 COMPACT hedge-trimmer is a professional tool whose use is reserved exclusively for trimming vegetation. • The PELLENC company accepts no responsibility for any damage caused by improper or unspecified use different from its original intention. -
Page 7: Personal Safety
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 2.1.3. PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury. -
Page 8: Upkeep
2.1.7. TOOL’S END OF LIFE MANAGEMENT When the tool reaches the end of its life, PELLENC keeps the end of life sheet of the equipment at disposal. The end of life sheet provides instructions for safely removing components. -
Page 9: Personal Protection Equipment
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H Tool protection rating IP54· (Allover protection against dust and water spray). Read the user guide. Wearing of protective glasses and hearing protec- tion is required. Wearing of gloves is mandatory. 2.4. PERSONAL PROTECTION EQUIPMENT... -
Page 10: Description And Technical Characteristics
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 3. DESCRIPTION AND TECHNICAL CHARACTERISTICS 3.1. DESCRIPTION Rear handle Hand guard Operating trigger Front handle safety trigger Speed selector Handle rotation button LED power and speed indicator 10. Blade (not included) Front handle Engine housing Content: •... -
Page 11: Technical Characteristics
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 3.2. TECHNICAL CHARACTERISTICS HELION 2 COMPACT Power 1200 W Tool voltage 43.2V Hedge-trimmer blade L63D Blade weight 1.0 kg 1.4 kg 1.5 kg 1.7 kg 1.6 kg Tool + blade weight 3.0 kg 3.4 kg 3.5 kg... -
Page 12: Commissioning
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 4. COMMISSIONING 4.1. MOUNTING THE HANDLE... -
Page 13: Mounting The Blade
Caution Only ever use blades supplied by PELLENC to avoid the risk of injury. Warning Running-in of the blade must be done for 1 minute at each change of the blade in a dry run. -
Page 14: Mounting The Deflector On The L.63 Blade
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 4.3. MOUNTING THE DEFLECTOR ON THE L.63 BLADE 4.4. POSITION OF THE HANDLE... -
Page 15: Connecting Pellenc Batteries To The Tool
Note The handle must be placed in one of the 5 lock positions in order to work. 4.5. CONNECTING PELLENC BATTERIES TO THE TOOL Important Always check the remaining battery-life before use. If necessary, recharge the battery using the charger. -
Page 16: 260 / 520 Alpha Battery
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H Connect the adaptor cord (11) to the connector on the battery. Screw it in all the way. Check that the power cord is properly connected. 4.5.2. 260 / 520 ALPHA BATTERY Connect the battery on the harness, making sure it is the right way round. -
Page 17: Using The Tool
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H Fit the connector to the adaptor (11). Screw it in all the way. 5. USING THE TOOL 5.1. FITTING THE POWER CORD AND ARM STRAP Fit the power cord on the harness and the arm strap to prevent contact with the blade. - Page 18 ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H Check the working area (fences, posts, etc.) Turn the rear handle to the correct position. Connect the tool’s Fast connector Turn on the battery by pressing the On/Off button. Note If at least 1 indicator light on the handle is on, the tool is powered up.
-
Page 19: Hedge-Trimming Speed Management
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 5.3. HEDGE-TRIMMING SPEED MANAGEMENT Speed setting Your tool is equipped with a speed selection system. This speed change optimizes the desired quality of work using the selector on the handle. Four indicator LEDs on the handle indicate the selected speed level. -
Page 20: Tips For Using The Adaptable Blades
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 5.4. TIPS FOR USING THE ADAPTABLE BLADES “OPTIMAL USE” Shrubs and shaping “OPTIMAL USE” “POSSIBLE USE” “POSSIBLE USE” “POSSIBLE USE” Pruning work over large sections “OPTIMAL USE” “POSSIBLE USE” “POSSIBLE USE” “POSSIBLE USE” Dense vegetation in small sections “OPTIMAL USE”... -
Page 21: End Of Trimming Job
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 5.6. END OF TRIMMING JOB 5.6.1. DISCONNECTION OF THE FAST CONNECTOR At the end of the trimming job: • Disconnect the connector • Replace the connector cap • Turn off the battery Important Do not manipulate the connector retractable ring. If the ring is damaged, replace the cable. - Page 22 ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H...
-
Page 23: Service
6.1. ANNUAL OVERHAUL Important Have your machine serviced every 200 hours or at least once a year by a authorised distributor.PELLENC Always stock the tool clean and in a dry place, with the battery charged. These parts must be replaced as a precautionary measure or at least once a year:... -
Page 24: Tool Maintenance Table
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 6.3. TOOL MAINTENANCE TABLE Frequency Elements Operations Repairer Notes Prior to After Every When nec- concerned each use each use 50 hours essary Visual in- Gener- User spection al ap- pearance Cleaning User Cleaning... -
Page 25: Cleaning The Blades
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H Tighten the screw to a torque of 3 N.m using a Torx screwdriver. Check the position of the blades, using a set of spac- ing shims. 6.5. CLEANING THE BLADES Important Energy consumption varies depending on the state of cleanliness of the tool. -
Page 26: Hedge-Trimmer Blade Lubrication
54_117575-H Check that there is no residue between the blades. Clean and lubricate the blades with the clean- ing / lubricating spray recommended by PELLENC (ref.121633). Warning Never use solvents ( trichloroethylene, white spirit, petrol, etc.) to clean the tool. -
Page 27: Sharpening The Blades
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H Grease the reducer with the grease gun (20g max- imum grease) recommended by PELLENC (ref. 74588 supplied with the hedge trimmer blade or ref. 115174). Refit the screw. Tighten to a torque of 3 N.m using a T25 Torx screw- driver. -
Page 28: Incidents And Troubleshooting
7. INCIDENTS AND TROUBLESHOOTING Important For any problems concerning the battery, refer to the manual that comes with the battery. PELLENC recom- mends contacting an authorised PELLENC dealer in all cases of breakdown. 7.1. SYMPTOMS OF THE HELION 2 HEDGE-TRIMMER... -
Page 29: Storage And Transport
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 8. STORAGE AND TRANSPORT 8.1. STORAGE Fit the blade guard over the blade during transport and storage. 8.2. OFF-SEASON STORAGE • Always clean the tool before storing it. • Always store the tool with a greased blade. -
Page 30: Accessories And Consumables
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 9. ACCESSORIES AND CONSUMABLES 9.1. PRESENTATION OF BLADE TYPES Reference: 57096 Reference: 56205 only Reference: 56206 References: with deflector kit 56206 + 57097 Reference: 56207 9.1.1. ACCESSORIES PROVIDED WITH EACH BLADE • Protective sheath •... -
Page 31: Warranties
The warranty is fully integral to the product sold by PELLENC. 10.1.2.1.2. SPARE PARTS The commercial warranty also covers original PELLENCspare parts, excluding labour and to the exclusion of certain... -
Page 32: Paid After-Sales Service
PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. - Page 33 Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and commercial warranty period. In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.
-
Page 34: Compliance Statements
ELECTRIC HEDGE-TRIMMER HELION 2 COMPACT 54_117575-H 11. COMPLIANCE STATEMENTS 11.1. EC DECLARATION OF CONFORMITY: HELION 2 MANUFACTURER PELLENC ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) ENTITY AUTHORIZED TO COMPILE THE TECHNI- PELLENC CAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) - Page 36 PELLENC Quartier Notre Dame - 84120 Pertuis (France)
