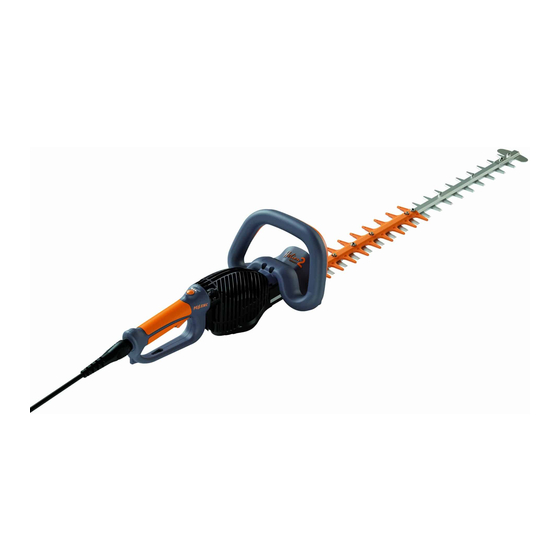

pellenc HELION 2 COMPACT User Manual
  1. Manuals
  2. Brands
  3. pellenc Manuals
  4. Trimmer
  5. HELION 2 COMPACT
  6. User manual

pellenc HELION 2 COMPACT User Manual

Hide thumbs Also See for HELION 2 COMPACT:
Table of Contents

Advertisement

Quick Links

Download this manual
ENG
Translation of the original
user guide
USER GUIDE
54_14_16B
CONTENTS:
• A hedge trimmer without blade
• A power cord for the battery
• A torx screwdriver
• A user guide
• 1 armband
• 3 bolts for the cutting head
• The warranty card
READ THE USER GUIDE CAREFULLY BEFORE USING THE TOOL
54_117575_F - 07/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HELION 2 COMPACT and is the answer not in the manual?

Questions and answers

Related Manuals for pellenc HELION 2 COMPACT

Summary of Contents for pellenc HELION 2 COMPACT

  • Page 1 Translation of the original user guide USER GUIDE 54_14_16B CONTENTS: • A hedge trimmer without blade • A power cord for the battery • A torx screwdriver • A user guide • 1 armband • 3 bolts for the cutting head •...

  • Page 3: Table Of Contents

    PELLENC S .A . WARRANTY AND AFTER SALES SERVICE . . . . . . . . . . . . . . . .

  • Page 4: Safety Instructions

    No part of this manual may be reproduced without the written consent of PELLENC. The illustrations given in this manual are for information purposes and are in no way contractual. PELLENC reserves the right to make any modification or improvement to its products as deemed necessary without informing customers already in possession of a similar model.

  • Page 5: General Safety Instructions For The Tool

    • The HELION 2 COMPACT hedge trimmer is a professional tool whose use is reserved exclusively for trimming vegetation. • PELLENC SA accepts no liability for any damage caused by improper use or use other than that for which it is intended.

  • Page 6: Safety Warning For The Hedge Trimmer

    SAFETY MEASURES FOR THE CHARGER AND THE BATTERY Refer to the Pellenc tools battery manual . WARNING: Before working on the tool, check that the On / Off switch is in the off...

  • Page 7: Safety Indications

    SAFETY INDICATIONS SAFETY EQUIPMENT Protective equipment Wearing is Helmet Recommended Visor Recommended Hard-wearing gloves Mandatory Safety footwear Recommended Ear protection Mandatory Safety goggles Mandatory Safety jacket or over-sleeves Recommended Work trousers Recommended SAFETY INDICATIONS 1– LwA sound power level guaranteed. 2–...

  • Page 8: Description And Technical Characteristics

    9– Handle rotation button 3– Speed selector 10– Blade 4– LED power and speed indicator 5– Front handle 6– Crankcase 7– Hand guard TECHNICAL CHARACTERISTICS HELION 2 COMPACT Power 1200 Watts Blade L63D Cutter bar weight Tool + cutter bar weight 3.0 Kg 3.4 Kg...

  • Page 9: Presentation Of The Cutter Bars

    DESCRIPTION AND TECHNICAL CHARACTERISTICS PRESENTATION OF THE CUTTER BARS réf = 57096 réf = 56205 alone réf = 56206 Deflector Kit réf = 56206 + réf = 57097 réf = 56207 ACCESSORIES PROVIDED WITH EACH CUTTER BAR - Protective sheath - Assembly instructions - The blade's certificate of conformity...

  • Page 10: Putting The Tool Into Service

    PUTTING THE TOOL INTO SERVICE ASSEMBLY / DISASSEMBLY OF THE HANDLE (2x)M5x25...

  • Page 11: Assembly / Disassembly Of The Cutter Bar

    . (3x)M5x25 WARNING: Never use a trimmer blade other than the one specified by PELLENC. Failure to do so will result in a risk of personal injury . WARNING: Running-in of the cutter bar must be done for 1 minute at each change of the cutter bar in a dry run .

  • Page 12: Installation Of The Deflector On The Cutter Bar L63

    PUTTING THE TOOL INTO SERVICE INSTALLATION OF THE DEFLECTOR ON THE CUTTER BAR L63 TRIMMER BLADE PROTECTION Cover the cutter bar with the sheath in all of the following cases: transport, adjustment, handling and storage of the tool.

  • Page 13: Use Of The Fast Connector

    PUTTING THE TOOL INTO SERVICE USE OF THE FAST CONNECTOR...

  • Page 14: Use Of The Fast Connector

    PUTTING THE TOOL INTO SERVICE USE OF THE FAST CONNECTOR Do not manipulate the retractable connector ring . If the ring is damaged, replace the cable . To prolong the life of the connector, it is advisable to protect it when in the unplugged: •...

  • Page 15: Orientation Of The Handle

    PUTTING THE TOOL INTO SERVICE ORIENTATION OF THE HANDLE The handle must be in one of the 5 locking positions in order to operate .

  • Page 16: Starting And Use

    STARTING AND USE USING THE TRIGGER CONTROL AND FRONT HANDLE WARNING: Check that the safety devices operate correctly before starting work . C = "ON" 54_14_018A C = "ON" 54_14_041A > < C = "ON" C = "ON" 54_14_041A 54_14_018A WARNING: Never disable the tool safety devices .

  • Page 17: Starting

    C. Attach the power cord to the arm using the armband supplied. D. Place the rear handle in the correct position. E. Flip the ON/OFF switch of the Pellenc power tool battery to "ON" If at least 1 light on the handle is lit, the tool is suppied with electrical power F.

  • Page 18: Tips For Using The Adaptable Cutter Bar

    STARTING AND USE TIPS FOR USING THE ADAPTABLE CUTTER BAR WARNING! Never cut anything other than vegetation . Shrubs and shaping Pruning work over large areas Dense vegetation in small sections The top of the hedge. Objective: to have a beautiful L63D finish, prevent the cuttings from falling inside the hedge.

  • Page 19: Servicing

    SERVICING SERVICING SCHEDULE...

  • Page 20: Pellenc Tool Maintenance Recommendations

    PELLENC TOOL MAINTENANCE RECOMMENDATIONS WARNING! Always disconnect the hedge trimmer from the battery before working on the blades . • Use products recommended by PELLENC. • Ask you approved PELLENC distributor in case of any problems. TIGHTENING THE BLADES (DIFFICULTY 1) 0 .2<...

  • Page 21: Lubrication Of The Cutter Bar Gears (Difficulty 1)

    SERVICING LUBRICATION OF THE CUTTER BAR GEARS (DIFFICULTY 1) The cutter bar gears must be lubricated after the first 25 hours of operation and every 50 hours thereafter . SHARPENING THE BLADES (DIFFICULTY 2) Sharpen the blades little but often. Check the sharpness of the blades regularly during the first hours of work in order to determine the necessary sharpening frequency.

  • Page 22: Storage

    SERVICING REMARK: Send the hedge trimmer for overhaul every 200 hours or at least once per year . When the tool is stored, it must be clean and the battery must be charged . These parts must be replaced as a precautionary measure or at least once a year. - Protective plate, ref.

  • Page 23: Cutting Tools

    5– Cutter bar L75 = ref: 56207 ACCESSORIES 1– HELION armband = ref.74338 2– 10.3 m Extension = ref. 100994 CONSUMABLE 1– PELLENC 400g Grease cartridge = ref.: 115174 2– PELLENC Cleaning Spray = ref.: 121633 3– Grease gun = ref.: 68518 Consumables sold separately...

  • Page 24: Troubleshooting And Tool Protection

    TROUBLESHOOTING AND TOOL PROTECTION POSSIBLE DEFECTS AND DIAGNOSTICS * * To be confirmed by an approved PELLENC distributor.

  • Page 25: Pellenc S .A . Warranty And After Sales Service

    (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. In the case of products connected to a Pellenc battery, parts that are replaced in the under the product warranty after the 12th month of use, are covered for a period of one (1) year.

  • Page 26: Ec" Declaration Of Conformity

    WE HEREBY DECLARE THAT THE MACHINE HEREINAFTER REFERRED TO AS : GENERIC DENOMINATION ELECTRIC HEDGE TRIMMER BATTERY POWERED ELECTRIC HEDGE TRIMMER INTENDED FOR PRUNING FUNCTION BUSHES / HEDGES COMMERCIAL NAME HELION 2 COMPACT TYPE HELION 2 COMPACT MODEL HELION 2 COMPACT 54R00001 - 54R49999 SERIAL No.
