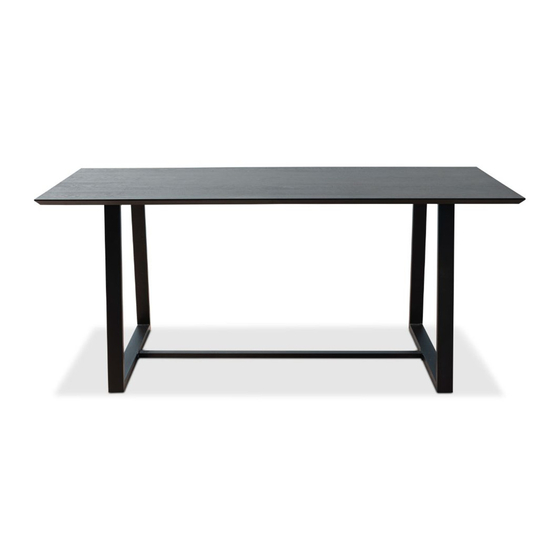

Zander Dining Table
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
long bolt
x6
D
washer
x12
Hardware Supplied
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
B
C
short bolt
bolt
x 12
x6
E
Allen Key
x1
1
Advertisement
Table of Contents
Related Manuals for Mocka Zander Dining Table
Summary of Contents for Mocka Zander Dining Table
- Page 1 For the most up to date versions please refer to the product page on our website. mocka.com.au/mocka.co.nz long bolt short bolt bolt x 12 washer Allen Key Hardware Supplied mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Zander Dining Table Assembly Instructions Panel layout Attach panel [2] to panels [3] and [4] secure with 12x short bolts (B) and Tighten with an Allen key (E). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 6x washers (D). Tighten with an Allen key (E). Attach panels [3] to panel [1] secure with 6x bolts (C) and 6x washers (D). Tighten with an Allen key (E). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
