Exmark 142-6386 Setup Instructions page 2

Installing the Weights
CAUTION
The bagger changes the weight distribution of the
machine. Operating the machine without the front
weights may cause an unstable condition which
could result in a loss of control.
Ensure the front weights are properly installed
before operating the machine with the bagger
attachment.
1. Install the weight-mounting brackets to the under
side of the frame using two 3/8 x 1 inch bolts and
two 3/8 inch locknuts.
Caster fork and wheel not shown for clarity.
1. Front right caster
2. Forward hole (right side
shown)
3. Locknut (3/8 inch)
2. Install the suitcase weights to the weight mounting
brackets using two 5/8 x 2 3/4 inch bolts, two
washers, and two 3/8 inch locknuts.

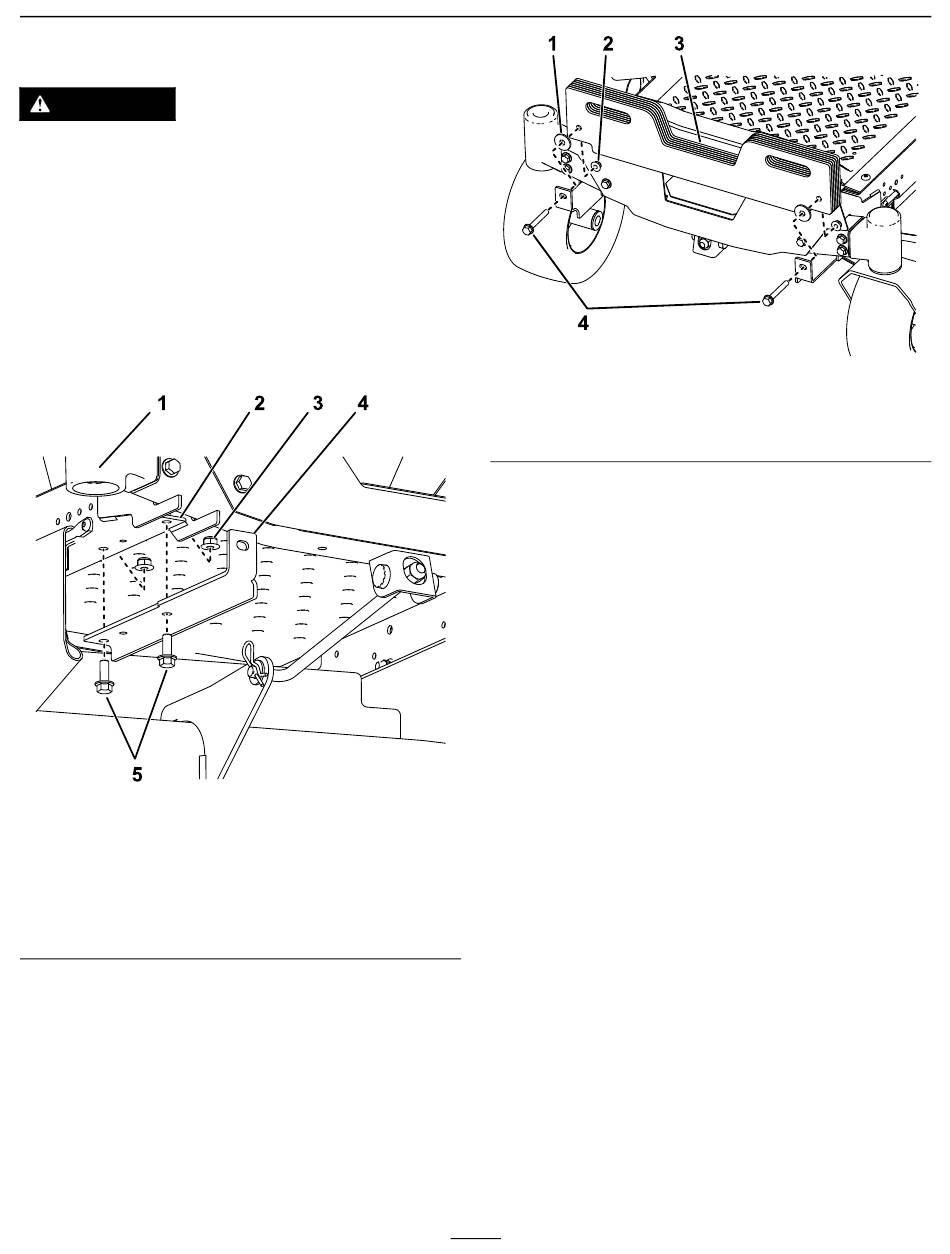

Figure 1
4. Right mounting bracket
5. 3/8 x 1 inch bolt
1. Spacer
2. 3/8 inch locknut
3. Once you have installed all the weights and brackets,
ensure that all the fasteners are tight. Tighten as
necessary.
Important: Whenever you remove the bagger
attachment, remember to remove the front
weights to return the proper stability to the
machine.
Installing the Attachment Mount
1. Install the stabilizer bracket to the engine guard using
two 5/16 x 3/4 inch carriage bolts and two 5/16
inch locknut (Figure 3).
g299192
2
Figure 2
3. Suitcase weights
4. 5/8 x 2 3/4 inch bolt
g299244
