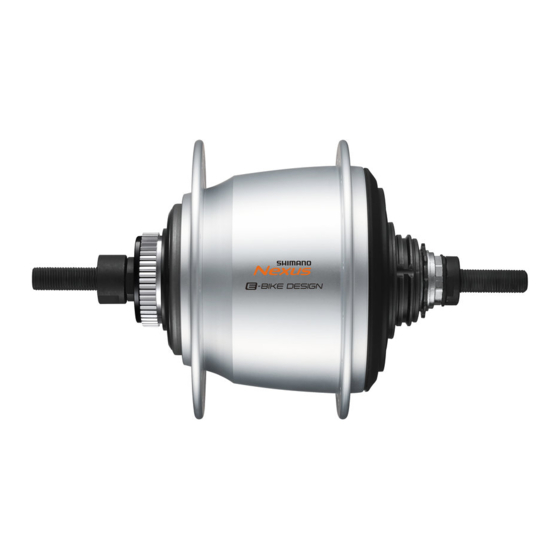

Shimano INTER 5E Service Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

S E R V I C E M A N U A L

SG-C7000-5V

SG-C7000-5R

SG-C7000-5C

SG-C7000-5D

SG-C7050-5V

SG-C7050-5R

SG-C7050-5C

SG-C7050-5D

Ver.1.4

©Apr. 2022 by Shimano Inc. ITP

Table of Contents

Need help?

Do you have a question about the INTER 5E and is the answer not in the manual?

Questions and answers

Summary of Contents for Shimano INTER 5E

Page 1 S E R V I C E M A N U A L SG-C7000-5V SG-C7000-5R SG-C7000-5C SG-C7000-5D SG-C7050-5V SG-C7050-5R SG-C7050-5C SG-C7050-5D Ver.1.4 ©Apr. 2022 by Shimano Inc. ITP...
Page 2: Table Of Contents
CONTENTS Introduction of INTER-5E ……………………………………………………………………………………………… Dealer's Manual ……………………………………………………………………………………………………………………… 　　 SG-C7000-5V, SG-C7000-5R, SG-C7000-5C, SG-C7000-5D 　　　　 • INSTALLATION/REMOVAL 　　　　 • ADJUSTMENT 　　　　 • MAINTENANCE 　　 SG-C7050-5V, SG-C7050-5R, SG-C7050-5C, SG-C7050-5D 　　　　 • INSTALLATION 　　　　 • CONNECTION OF THE ELECTRIC WIRES 　　　　 • MAINTENANCE Troubleshooting ………………………………………………………………………………………………………………………...
Page 3: Introduction Of Inter-5E
Return to index page Introduction of INTER-5E E-BIKE Dedicated Internal Geared Hub The NEXUS Inter-5E is a revolutionary internal geared hub designed specifically for the unique demands of E-BIKE riding. It can withstand much higher pedaling forces, even while shifting (+180% compare with SG-C6000 series) by optimizing shift pattern design.
Page 4 Also, riders can always manually shift into the gear they want, even in auto mode. When they do, the SHIMANO STEPS system uses a learning function to recognize the manual shift operation and automatically fine-tunes future automatic shift timing to the rider's liking.
Page 5: Dealer's Manual
Return to index page Dealer's Manual SG-C7000-5V SG-C7000-5R SG-C7000-5C SG-C7000-5D...
Page 6: Installation/Removal
Snap ring Sprocket Outward assembling Inward assembling Right hand dust Right hand dust cap C cap B Speciﬁcation A Speciﬁcation B Right hand dust cap Speciﬁcation A Speciﬁcation B Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 7 Installing the sprocket (with chain guard) Install the chain guard and right hand dust cap. Note the orientation of the right hand dust cap when installing it. Right hand dust cap B Chain guard Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 8 Guard plate Installation of the cassette joint to the hub Install the driver cap. Note the orientation of the driver cap. Driver cap Driver side cap Driver side Snap ring Driver Sprocket Sprocket Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 9 • Hold down the cassette joint bracket securely when performing work. Installing the disc brake rotor CAUTION • Wear gloves when handling the disc brake rotor. Failure to do so may result in cuts to your hands. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 10 Temporarily secure the disc brake rotor and the disc brake rotor lock washers to the hub as shown in the figure. Lock washer 2 - 4 N·m Disc brake rotor ﬁxing screw Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 11 • Use the dedicated disc brake rotor fixing screws. Secure the disc brake rotor with force applied in the clockwise direction. Tighten the disc brake rotor fixing screws in the order shown in the figure. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 12 ﬁxing washer Installation of the hub to the frame Mount the chain on the sprocket, and then set the hub axle into the dropout. When not using chain tensioner Dropout Hub axle Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 13 Turn the cassette joint so that the protrusions of the non-turn washers fit into the grooves in the dropouts and align the joint to be installed almost parallel to the chainstay. Non-turn washer (for left-side use) Dropout groove Non-turn washer (for right-side use) Cassette joint Chainstay Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 14 • When installing the hub to the frame, the chain guard may come off. Make sure that the chain guard is securely installed. If not properly installed, noise may be generated. Chain guard Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 15 (3) Temporarily fix the clip bolt and clip nut by lightly tightening them. (4) Take up slack in the chain and secure the wheel to the frame with the cap nut. (5) Attach the brake arm with the arm clip. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 16 (4) Slightly loosen the cap nut, and fully tighten the brake unit fixing nut. (5) Take up slack in the chain, align the wheel with the frame center, and secure it with the cap nut. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 17 (2) Take up slack in the chain and secure the wheel to the frame with the cap nut. Brake arm Clip nut 2 - 3 N·m 30 - 45 N·m Clip bolt Cap nut (M6 × 16 mm) Non-turn washer Arm clip Chainstay 30 - 45 N·m Cap nut Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 18 Use a lock nut with a nylon insert (self-locking nut) as the clip nut. It is recommended that SHIMANO made clip bolts, clip nuts, and arm clips be used. If the clip nut comes off the brake arm, or if the clip bolt or arm clip becomes...
Page 19 Install the rubber cover and rubber bellows to the outer casing holder. Rubber bellows Outer casing holder Rubber cover TECH TIPS • This operation is not required if there is no rubber cover or rubber bellows. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 20 Outer casing Outer casing NOTICE • Use a new inner cable; do not use a cable which has had its end cut off. Pay attention to the end of the inner cable. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 21 10 mm Inner cable mounting bolt (black) Speciﬁed length ALFINE: 75 mm or less NEXUS: 63 mm or less Speciﬁed length Speciﬁed length NOTICE • Use the special inner cable mounting bolt unit. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 22 (2) Turn the cable 60° clockwise or counterclockwise and attach it to the hook. Gap in pulley Pulley Inner cable mounting bolt unit Inner cable mounting bolt unit Pulley Gap in pulley Hook Hook Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 23 Inner cable Bracket Bracket Pulley Pulley Bracket Slit Outer casing Outer casing holder holder Bracket Slit Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 24 • Check that the inner cable is correctly seated inside the pulley guide. Guide Guide Secure the cable to the frame with the outer casing bands. 10 mm 15 mm 10 mm Outer casing bands Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 25: Adjustment
• If the overlapping area falls short of two thirds of each setting line, the gears may not be properly engaged during pedaling, resulting in abnormal noise or free spinning of the pedals. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 26 (toward the dropout) so that it does not touch the chain. 11-speed 8-speed Inner end cap 15 - 20 mm 25 - 30 mm Inner end cap 5-speed 15 - 20 mm Inner end cap Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 27: Maintenance
Pull the outer casing out from the outer casing holder. Outer casing holder Remove the inner cable from the pulley guide, and remove the inner cable mounting bolt unit. Inner cable mounting bolt unit Cassette joint pulley Cassette joint pulley Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 28 • If it is difficult to remove the gear shifting cable, some models enable the outer casing holder to be pulled out from the outer casing holder section of the cassette joint by turning the pulley of the cassette joint. Hole in pulley or #14 spoke Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 29 (SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D) „ Oil maintenance of the internal assembly The work performed here will be the same as in SG-C7050-5. Refer to “Oil maintenance of the internal assembly (oil maintenance kit: Y00298010)” (P.46). Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG004...
Page 30 Return to index page Dealer's Manual SG-C7050-5V SG-C7050-5R SG-C7050-5C SG-C7050-5D...
Page 31: Installation
(SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D) INSTALLATION Refer to the internal geared hub-compatible SHIMANO STEPS dealer's manual for information on installing parts not listed in this document. Installation of sprocket to the hub Place right-hand dust cap onto the driver Snap ring on the right side of the hub body.
Page 32 ● mark (red) If the two ● marks (red) are not aligned, use the TL-SGE1 to align the two ● marks (red). Should be aligned Turn clockwise TL-SGE1 Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 33 If the motor unit is installed off the initial position, some gears may become unavailable and the hub or the motor unit may be damaged. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 34 This is the mark for which the of the motor unit. position was aligned in step 1. Motor unit guide hole Outer side Right-hand lock nut guide Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 35 Refer to the following to select the non-turn washer based on the shape of the motor unit and dropout to use. MU-UR500 • When the dropout is the reversed type Installation angle of non-turn washer and motor unit Dropout 5R (yellow)/ 6R (silver)/ 7R (black)/ 5L (brown) 6L (white) 7L (gray) Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 36 Dropout 8R (blue)/ 8L (green) 30° MU-UR510 • When the dropout is the standard type Installation angle of non-turn washer and motor unit Dropout 6R (silver)/ 6L (white) Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 37 Dropout shape 8R (blue)/ 9R (light brown)/ 8L (green) 9L (light green) 30° Installation methods Mount the chain on the sprocket, then set the hub axle into the dropout. Dropout Hub axle Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 38 NOTICE • When installing parts such as a mudguard stay to the hub axle, install them in the order shown in the figure. Non-turn washer Mudguard stay Carrier stay Washer Hub nut Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 39 Return to index page Dealer’s Manual (SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D) For coaster brakes Brake arm (A) (B) Clip nut Clip bolt Chainstay Arm clip Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 40: Connection Of The Electric Wires
NOTICE Information on the electric wire and the SHIMANO original tool is described in “Notice” in “TO ENSURE SAFETY”. Be sure to refer to it before starting the work. „ Connection to motor unit Connect the electric wires to the motor TL-EW02 (MU-UR500) unit and the battery mount.
Page 41 After connecting the electric wires to all of the components, install the battery and check the operation. Check that gear-shifting of the rear can be performed properly by operating the shifting switch. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 42 Do not keep connecting and disconnecting the small waterproof connector. The waterproof section or the connecting section may become worn or deformed, and the function may be affected. Motor unit Use the wide end of the TL-EW02 TL-EW02 (MU-UR500) SHIMANO original tool to disconnect the TL-EW300 (MU-UR510) electric wires. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 43: Maintenance
(SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D) MAINTENANCE „ Adjusting the motor unit (connection and communication with PC) For the latest information on E-TUBE PROJECT, check https://bike.shimano.com/e-tube/project.html. CAUTION • Improper adjustment may cause gear engagement skipping, resulting in an accidental fall.
Page 44 Continue adjusting the value by one in the same direction until the abnormal noise or unusual feels are eliminated. Finally, ride the bicycle to check whether there is no problem. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 45 (SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D) „ Adjusting the motor unit (connection and communication with smartphone or tablet) For the latest information on E-TUBE PROJECT, check https://bike.shimano.com/e-tube/project.html. CAUTION • Improper adjustment may cause gear engagement skipping, resulting in an accidental fall.
Page 46 Continue adjusting the value by one in the same direction until the abnormal noise or unusual feels are eliminated. Finally, ride the bicycle to check whether there is no problem. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 47 • Disposal of Used Oil: Follow local county and/or state codes for disposal. Use caution when preparing the oil for disposal. • Read this manual carefully, and keep it in a safe place for later reference. • The latest product safety data sheets are accessible online at https://si.shimano.com. Click here for the latest Dealer's Manual...
Page 48 1, as shown in the illustration. Ring gear unit 1 Keep the internal unit immersed for approximately 90 seconds. Remove the internal unit from the oil. Let excess oil drain off for approximately 60 seconds. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 49 Return to index page Dealer’s Manual (SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D) Reassemble the hub. Click here for the latest Dealer's Manual https://si.shimano.com/DM/CASG003...
Page 50: Troubleshooting
Return to index page Troubleshooting...
Page 51 All gear positions *Gear Change Support SHIMANO gear change support mechanism utilizes some portion of pedaling force at down shifting. The result is a quick and precise downshift with very light feeling on both mechanical and DI2 version of the hub.
Page 52 Troubleshooting Symptom/cause Solution Reference page Check for any areas where the curvature of the cable is too tight. When using a SHIMANO The cable has been routed inappropriately. genuine outer casing, the recommended minimum curvature is R30 mm. Gear shifting Using a SHIMANO genuine cable/outer casing may Cable performance is poor.
Page 53 Return to index page Troubleshooting The following items are for coaster brake models. Symptoms Solution Reference page The brakes are too sensitive. Apply grease or replace the brake shoe unit P.58 Replace the brake shoe unit. The brakes are weak. If this does not resolve the issue, replace the P.55,58 internal assembly.
Page 54: Disassembly & Assembly
Return to index page Disassembly & Assembly...
Page 55: Required Tools & Parts
Return to index page Required Tools & Parts A: Hammer B: TL-C7001 C: TL-S702 D: Slotted Screwdriver E: TL-7S20 Hub spanners 17 mm×22 mm (2 pcs.) F: Cassette joint CJ-C7000 NOTICE • For internal assembly replacement, only tool “e” is necessary. •...
Page 56: Replacing The Internal Assembly
Return to index page Replacing the Internal Assembly Refer to the part breakdown (p. 78) for the names of parts. Hold the two beveled surfaces of the hub axle on the brake arm side in a vise and remove the dust cap. NOTICE Dust cap •...
Page 57 Return to index page Replacing the Internal Assembly Remove the hub shell. Hub shell Internal assembly The internal assembly can be replaced.
Page 58: Disassembling The Internal Assembly
Return to index page Disassembling the Internal Assembly Installing the cassette joint With the brake arm facing downward, pinch the flat portion of the axle with a vise, and secure the internal assembly in place. Set the cassette joint. (1) Turn the cassette joint pulley in the direction •...
Page 59 Return to index page Disassembling the Internal Assembly Disassembling the Internal Assembly When disassembling or assembling the internal assembly, turn the cassette joint until it makes contact and ensure that the unit is in 1st gear (the tabs on the hub axle are folded down) before working. It will be easier to keep the unit in 1st gear if you connect a compatible shifting lever.
Page 60 Return to index page Disassembling the Internal Assembly Carefully remove the E-ring with a slotted screwdriver. E-ring Slotted screwdriver NOTICE • The E-ring detaches with some force, so be careful not to lose it. • Do not reuse an E-ring that has been removed.
Page 61 Return to index page Disassembling the Internal Assembly Remove the Sun Gear1 guide ring. Sun Gear1 guide ring Remove the ball retainer. Ball retainer Reverse axle unit in vise to access the drive side cone assembly.
Page 62 Return to index page Disassembling the Internal Assembly Remove the cassette joint. Follow the reverse procedure from "Installing the cassette joint." Cassette joint Remove the right-hand lock nut. Right-hand lock nut Remove the stop washer. Stop washer...
Page 63 Return to index page Disassembling the Internal Assembly Remove the lock washer. Lock washer Remove the drive plate. Drive plate...
Page 64 Return to index page Disassembling the Internal Assembly Remove the hub axle. NOTICE (1) Place the driver on the vise. • Make sure to place it so that the vise is outside the washers inside. Otherwise, the washers could detach and you will be unable to reattach them.
Page 65 Return to index page Disassembling the Internal Assembly Remove the right-hand cone from the driver unit. Right hand cone Remove ball retainer A from the NOTICE driver unit. • The unit is disassembled as shown below. • Ball • retainer A •...
Page 66: Assembling The Internal Assembly
Return to index page Assembling the Internal Assembly Apply internal geared hub grease to the parts indicated with the following icon. NOTICE • Although there is white-colored and black-colored grease, the two types can be mixed during use. (Y04130100) Install the driver unit. Driver unit Install the ball retainer A.
Page 67 Return to index page Assembling the Internal Assembly Set the cone installation tool (TL- NOTICE S702) and strike it until it comes • Make sure the right hand cone is to a stop. completely seated, as shown and the seal is installed equally. Install the driver plate.
Page 68 Return to index page Assembling the Internal Assembly When installing the stop washer, Stop washer align the two teeth with the two grooves of the lock washer. Tighten the right-hand lock nut. Right-hand lock nut NOTICE • If either the lock washer or driver plate rotates during this step, return to assembly step 3 and make sure that the cone is correctly seated.
Page 69 Return to index page Assembling the Internal Assembly Reverse the axle unit in the vise to complete assembly. (Y-04130100) Install the ball retainer. NOTICE Ball retainer • Be careful, as the balls can easily fall from the retainer. (Y-04130100) • Keep the vertical direction of the ball retainer in mind as you set it.
Page 70 Return to index page Assembling the Internal Assembly Install Sun Gear1. Sun Gear1 Do this while turning the cassette joint until it makes contact. (Y-04130100) If a shifting lever is connected, do this with the unit in 1st gear. Install the carrier unit. NOTICE •...
Page 71 Return to index page Assembling the Internal Assembly Install the carrier unit. (1) Install the Carrier1unit *Do this while pushing the cassette joint until Carrier1 it makes contact. unit If a shifting lever is connected, do this with the unit in 1st gear. Groove When installing, ensure that the tab on the Carrier 1 unit is inserted into the groove on the axle unit.
Page 72 Return to index page Assembling the Internal Assembly (3) Combine the Carrier2 Unit, Ring Gear2, and Ring Gear1 washer. *The Ring Gear1 washer is included only when the first two letters stamped on the hub axle are “RE - RL, SA - SL, or TA - TL“. When reassembling the product, ensure that the part configuration at the time of disassembly is maintained.
Page 73 Return to index page Assembling the Internal Assembly Install the O-ring. O-ring NOTICE • It is recommended that you wrap the threads with tape before installing the O-ring to prevent damage to the O-ring contacting the axle threads. Install the brake shoe unit. Install so that the end of the slide spring on the NOTICE hub fits into the gap in the brake shoe.
Page 74 Return to index page Assembling the Internal Assembly Place ball retainer onto the hub shell. Ball retainer NOTICE • Be careful of the setting direction. (Y-04130100) Place the brake arm unit onto the hub axle and turn it to the left and right so that the Serrations serrations of the brake shoe and...
Page 75 Return to index page Assembling the Internal Assembly Turn the unit over, secure it back in the vise, and then remove the cassette joint. Follow the reverse procedure from "Installing the cassette joint." Cassette joint Install the dust cap. Install so that there is a 1 to 1.5 mm gap with the dust cap.
Page 76: Service Parts & Tools
Return to index page Service Parts & Tools...
Page 77: Cassette Joint
Return to index page Service Parts and Tools Cassette Joint The Belt Drive specification is designed to not interfere with the belt drive. CJ-C7000-5 CJ-C7000-5 CJ-C7000-5BD CJ-C7000-5BD for Belt Drive Spec. Measurement Tool TL-S700-B Motor unit MU-UR500...
Page 78: Nexus Non-Turn Washers
Vertical type rear dropout Vertical type rear dropout Ver. 1.8, Jan. 8, 2019, Vertical Ver. 1.8, Jan. 8, 2019, SHIMANO INC. type Vertical type rear dropout ear dropout Vertical type rear dropout rear dropout Vertical type rear dropout Ver.
Page 79: Hub Dimensions (Over Locknut Dimensions And Axle)
Return to index page Hub dimensions (Over Locknut Dimensions and Axle)
Page 80 Return to index page Hub dimensions (Over Locknut Dimensions and Axle) Internal geared hub C-272 SG-C7000-5V / SG-C7000-5R / SG-C7000-5C / SG-C7000-5D ALFINE INTER-11, 8 / NEXUS INTER-8, 7, 5E C-273 Series ALFINE NEXUS Function name INTER-11 INTER-8 INTER-8 INTER-8 INTER-8...
Page 81 Return to index page URBAN components Hub dimensions C-372 Internal Geared Hub SG-C7050-5V / SG-C7050-5R / SG-C7050-5C / SG-C7050-5D C-373 Dimensions C-374 Series ALFINE NEXUS Series NEXUS Function name INTER-11 INTER-8 INTER-8 Function name INTER-5E Model No. SG-S7051-11 SG-S7051-8 SG-C6061-8R...
Page 82: Ev / Spare Parts List
Return to index page EV / Spare Parts List...
Page 83 29 31 15 16 30 29 Internal Assembly TL-S702 TL-C7001 13 14 Internal Hub Grease ITEM NO. SHIMANO CODE NO. DESCRIPTION ITEM NO. SHIMANO CODE NO. DESCRIPTION Y3FH98010 Internal Assembly (Axle Length 187 mm) Y04130100 Internal Hub Grease (Net. 100g) Y37G98020 Brake Shoe Unit (3 pcs.)
Page 84 27 29 28 27 Internal Assembly TL-AF30 TL-S702 TL-C7001 10 11 12 Internal Hub Grease ITEM NO. SHIMANO CODE NO. DESCRIPTION ITEM NO. SHIMANO CODE NO. DESCRIPTION Y3FJ98010 Internal Assembly (Axle Length 187 mm) Y00298010 WB maintenance oil set Y3FF49000 Stop Ring Diameter (12 mm / 1.3 mm)
Page 85 25 27 14 15 26 25 Internal Assembly TL-S702 TL-C7001 10 11 12 Internal Hub Grease ITEM NO. SHIMANO CODE NO. DESCRIPTION ITEM NO. SHIMANO CODE NO. DESCRIPTION Y3FG98010 Internal Assembly (Axle Length 187 mm) Y00201000 WB maintenance oil (1L) Y3FF49000 Stop Ring Diameter (12 mm / 1.3 mm)
Page 86 Return to index page Spare parts list NEXUS REVOSHIFT Shifter SL-C7000-5 5-speed ITEM NO. SHIMANO CODE NO. DESCRIPTION Y0FL98010 Indicator Cover (Silver) & Fixing Screws Y0FL98020 Indicator Cover (Black) & Fixing Screws Y6F004100 Cover Fixing Screw Y01A98010 Cable Adjusting Bolt Unit...
Page 87 15 16 31 30 Internal Assembly TL-SGE1 TL-S702 TL-C7001 13 14 Internal Hub Grease ITEM NO. SHIMANO CODE NO. DESCRIPTION ITEM NO. SHIMANO CODE NO. DESCRIPTION Y3FE98010 Internal Assembly (Axle Length 187 mm) Y20W10000 TL-SGE1 1st Gear Set Tool Y37G98020 Brake Shoe Unit (3 pcs.)
Page 88 29 28 Internal Assembly Internal Hub Grease TL-SGE1 TL-AF30 10 11 12 TL-S702 TL-C7001 ITEM NO. SHIMANO CODE NO. DESCRIPTION ITEM NO. SHIMANO CODE NO. DESCRIPTION Y3FF98010 Internal Assembly (Axle Length 187 mm) Y13098022 TL-S702 Right Hand Cone Installation Tool Y3FF49000 Stop Ring Diameter (12 mm / 1.3 mm)
Page 89 14 15 27 26 Internal Assembly TL-SGE1 TL-S702 TL-C7001 10 11 12 Internal Hub Grease ITEM NO. SHIMANO CODE NO. DESCRIPTION ITEM NO. SHIMANO CODE NO. DESCRIPTION Y3FD98010 Internal Assembly (Axle Length 187 mm) Y70821000 TL-C7001 Right Hand Cone Removal Tool Y3FF49000 Stop Ring Diameter (12 mm / 1.3 mm)
