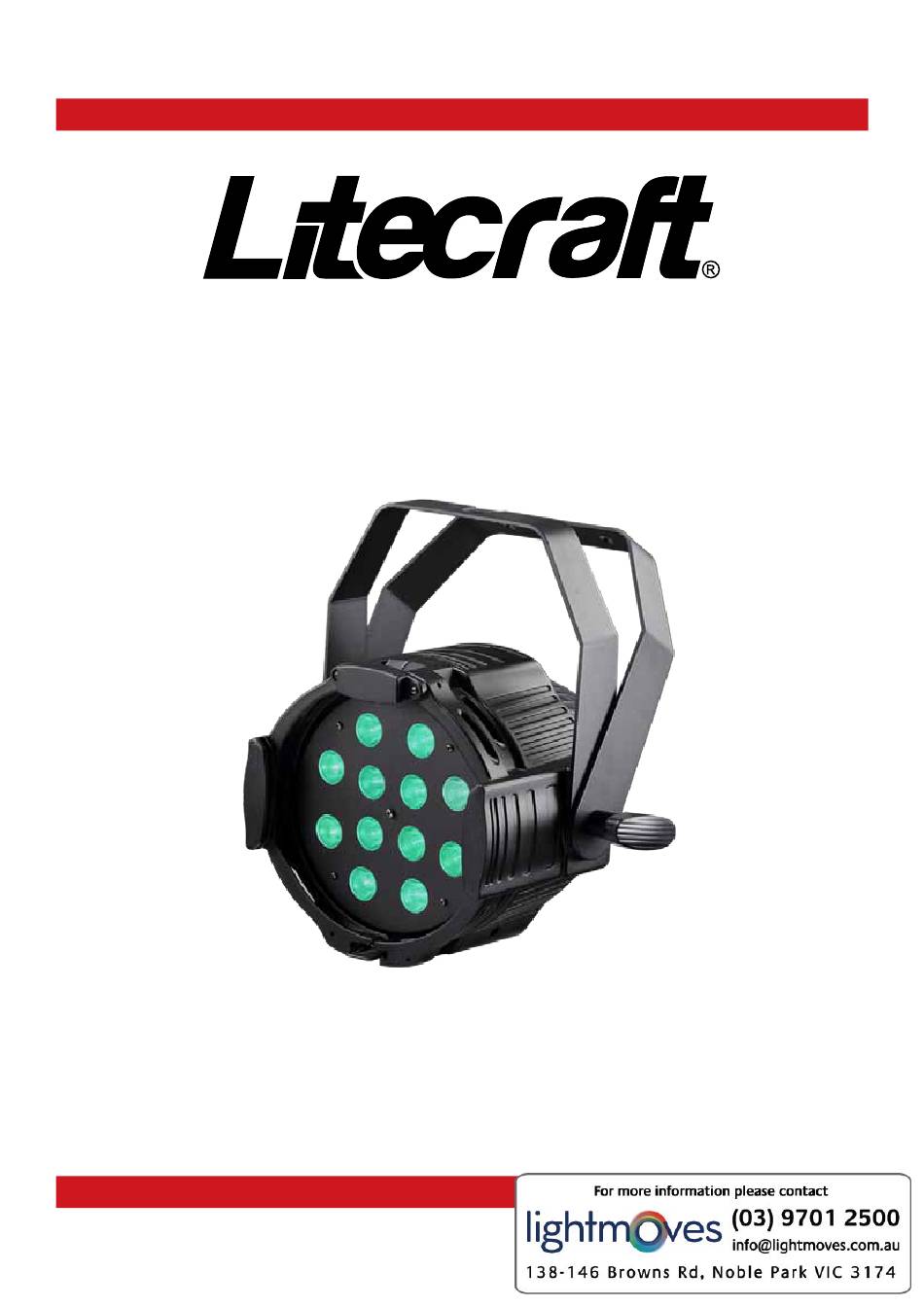

- Page 1 LED MultiPAR 12FC ILED-MP-12F5-020 USER GUIDE PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. How To Set The Fixture 4. How To Control The Fixture 5. DMX 512 Configuration 6. DMX 512 Connections 7. Troubleshooting 8. Fixture Cleaning... - Page 3 1. Safety Introductions Please read the instructions carefully which includes important information about the installation, operation and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...
-
Page 4: Technical Specifications
Do not touch any wire during operation as there might be a hazard of electric shock. Avoid power wires together arounding other cables. Disconnect mains power before fuse/lamp replacement or servicing. Replace fuse only with the same type. ... -
Page 5: How To Set The Fixture
Dimension：250 x 327 x 215 mm Weight：6kg How To Set The Fixture 3.1 Control Panel ○ Display: To show the various menus and the selected functions ○ LED: DMX input present MASTER Master Mode Slave Mode SLAVE SOUND Flashing Sound activation... - Page 6 ○ Button: MENU To select the programming functions To go backward in the selected functions DOWN To go forward in the selected functions To confirm the selected functions ENTER ○ DMX output: For DMX512 link, use 3-pin XLR plug cable to link the next unit. ○...
- Page 8 DMX 512 Address Setting Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to change the DMX 512 address. Once the address has been selected, press ENTER button to setup or automatically exit menu mode without any change after 7seconds.
- Page 9 button and the display will blink. Use the DOWN and UP buttons to select the (Dimmer Mode 1: Optically Linear) or (Dimmer mode 2: Square Law) or (Dimmer mode 3: Inverse Square Law) or (Dimmer mode 4: S-cure) mode. Once the mode has been selected, press the ENTER button to setup or automatically return to the main functions without any change after one minute.
- Page 10 LED display Press the MENU button up to when the is shown on the display. Pressing ENTER button and the display will blink. Use DOWN and UP button to select (display always on) or (display off 20 seconds after exit menu) mode. Once select, press ENTER button to setup or exit menu mode without any change after 7seconds.
- Page 11 Temperature Test Press the MENU button up to when the is blinking on the display. Pressing ENTER button and the display will show the temperature of the unit. To go back to the functions press the MENU button again. Fixture Hours Press the MENU button up to when the is blinking on the display.
- Page 12 2-light show In slave mode, Slave 1 means the unit works normally and Slave 2 means 2-light show. In order to create a great light show, you can set Slave 2 on the second unit to get contrast movement to each other, even if you have two units only. 4.2 DMX Controller Use universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so that the units can receive DMX signal.
-
Page 13: Dmx512 Configuration
5.DMX512 Configuration Mode4&5: 12 -... - Page 14 Mode 7: 13 -...
-
Page 15: Dmx512 Connections
6. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. -
Page 16: Troubleshooting
7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The fixture does not work, no light 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. B. - Page 17 Litecraft is continuously developing and improving all its products. We reserve the right to change specifications without prior notification. Images are representing but not necessarily a precise product reference. Litecraft shall be under no liability for any loss, damage or injury for direct or indirect dependence on the information contained in this guide.
